HTECH Wall Plate 2x4 HDMI RJ45 Network LAN Power 2 pin EU

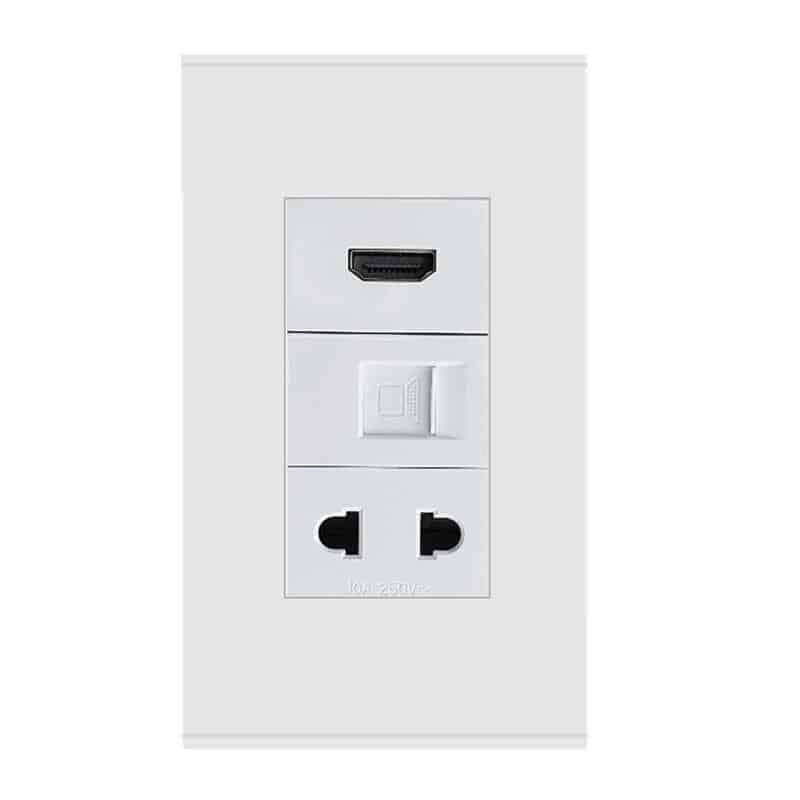

This wall plate has 1x HDMI Female — female (barrel), 1x RJ45 Ethernet LAN, 1x 2 Pin EU power — see additional images.

If this wall plate is not as per your requirement you can design your our custom Wall Plates & Inserts

Step1: Choose your own custom Base Plates [click here]

Step2: Choose you own Keystone Inserts [click here]

Specifications:

- Dimensions:    120 x 70mm x 10mm (L x W x D) D = empty wall plate

- Colour:           White. (Images have been deliberately darkened)

- Material:         Flame Retardant PVC

- HDMI Insert:   1x female to female barrel, elbow 90°

- RJ45 Insert:    1x quick snap connector + dust cover

- Power Insert:  1x 2pin round 230V screw terminal

Note:

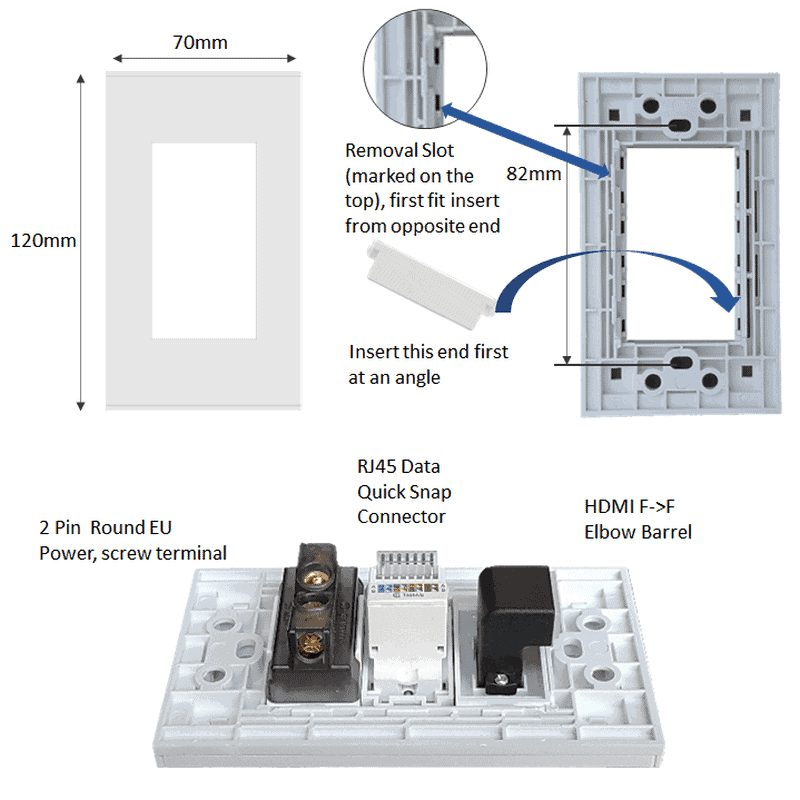

All items (base plate & inserts) ship loose so you have the option of 'which sequence' they are fitted. See additional images on how to fit inserts.

Check you wall box dimensions first. The wall box is the reciprocal box fitted into the wall. Sometimes the 120x 70 may be too narrow. If this is the case you can purchase blank plates matching your existing ones from you local dealer. These can then be cut-out to accommodate the inserts.

Step1: HTECH Base Plate Options. (Depth is keystone insert dependant)

1. Trunking Wall Plates: 86 x 86mm, 1, 2 & 3 slot
2. Wall Plates: 2 x 4, 120 x 70 mm, 1, 2 & 3 slot
3. Wall Plate: 4 x 4, 120 x 120mm, 6 slot
4. Extended Plate, 195 x 70mm, 6 slot
5. Floor / table Top Plate: 120 x 120mm , 3 slot. Depth 60mm

Step 2: HTECH Keystone Insert Options for Trunking, Wall & Floor Plate

1. HDMI — female to female barrel. a. Straight or b. elbow 90° (for limited space)
2. RCA — a.Digital audio_yellow , b. Stereo_red + white, c. Component_green+red+blue, d. AV_yellow+red+white,
3. VGA - female to female barrel, straight
4. 3.5mm aux or headphone, 3 pin terminal block
5. 6.5mm headphone guitar, 3 pin terminal block
6. Meeting 6 core, 6 pin solder terminals
7. Meeting 8 core, 8 pin solder terminals
8. Audio Speaker Banana connections, 2pin solder connections
9. XLR / Lennon Male and Female, 4 pin solder connections
10. Speakon Female, 4 pin spade or solder connections
11. RJ11 telephone, quick snap connector
12. RJ45 single + dust cover Ethernet LAN, Networking, Data, Internet etc. quick snap connector
13. RJ45 2x dual, Ethernet LAN, Networking, Data, Internet etc. quick snap connector
14. USB 3.0 for data, female to female barrel
15. USB 2x dual for Charging only, 4 pin solder connections
16. F type for satellite dish connections DSTV etc. 2 pin solder connections
17. TV for terrestrial antenna, 2 pin solder connections
18. SC for Fiber Optic connections, female to female barrel
19. LC for Fiber Optic connections, female to female barrel
20. Power for 2 pin EU round connections to 230V AC, 3 pin terminal block

Step 3: Fill any inserts shortfalls with Blanking Inserts

1. Blanking Inserts to fill the gaps
2. Make anything not listed using blank plates for example fuse holders and Led indications
