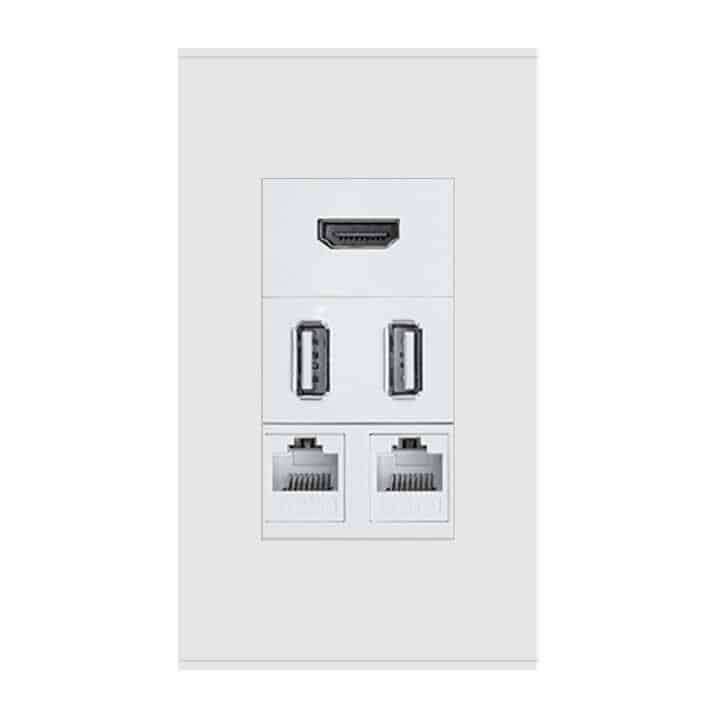

HTECH Wall Plate 2x4 HDMI USB Charge RJ45 Network LAN

This wall plate has 1x HDMI Female — female (barrel), 2x USB Charge Only with Solder and 2x RJ45 Ethernet LAN

If this wall plate is not as per your requirement you can design your our custom Wall Plates & Inserts

Step1: Choose your own custom Base Plates [click here]

Step2: Choose you own Keystone Inserts [click here]

Specifications

Dimensions:      120 x 70mm x 10mm (L x W x D) D = empty wall plate

Colour:             White. (Images have been deliberately darkened)

Material:           Flame Retardant PVC

Note: The items ship loose to give you the option of 'in which sequence' they should be.

What's in the Box?:

1x Wall Plate 2x4 - 3 Slot

1x Insert HDMI - female elbow

1x Insert 2x USB - charge only

1x Insert 2x RJ45

Step1: HTECH Base Plate Options. (Depth is keystone insert dependant)

1. Trunking Wall Plates: 86 x 86mm, 1, 2 & 3 slot
2. Wall Plates: 2 x 4, 120 x 70 mm, 1, 2 & 3 slot
3. Wall Plate: 4 x 4, 120 x 120mm, 6 slot
4. Extended Plate, 195 x 70mm, 6 slot
5. Floor / table Top Plate: 120 x 120mm , 3 slot. Depth 60mm

Step 2: HTECH Keystone Insert Options for Trunking, Wall & Floor Plate

2.1 Blanking

2.2a HDMI straight barrel (F-F)

2.2b HDMI elbow 90 barrel (F-F)

2.3a RCA Digital audio 1x Y

2.3b RCA Stereo 2x R+W

2.3c RCA Component 3x R+G+B

2.3d RCA AV 3x Y+R+W

2.4a VGA straight barrel (F-F)

2.4b VGA straight terminal block

2.5 3.5mm Aux Jack audio earphone 3pin terminal block

2.6 6.5mm Aux jack headphone, guitar 3pin terminal block

2.7 DIN Meeting 6 pin solder

2.8 DIN Meeting 8pin solder

2.9 Banana Stereo Audio Speaker connections 2pin solder

2.10a XLR / Lennon male 4pin solder connections

2.10b XLR / Lennon female 4pin solder connections (2 slots)

2.11 Speakon female 4pin spade or solder connections (2 slots)

2.12 RJ11 telephone, quick snap connector

2.13a RJ45 single + dust cover Ethernet LAN, Networking, Data, quick snap connector

2.13b RJ45 2x dual, Ethernet LAN, Networking, Data, Internet, quick snap connector

2.14 USB 3.0 straight barrel (F-F)

2.15 USB 2.0 2x Dual straight barrel (F-F) 4pin solder

2.16 F type modular RF connection for satellite dish connections DSTV

2.17 TV Connector for distribution terrestrial antenna, 2pin solder connections

2.18 SC for Fiber Optic connections barrel (F-F)

2.19 LC for Fiber Optic connections barrel (F-F)

2.20 Power 2pin EU round 10A 230V 2pin terminal block

2.21 DIY Use a Blank Insert to make anything not listed e.g.  fuse holders, LED's
