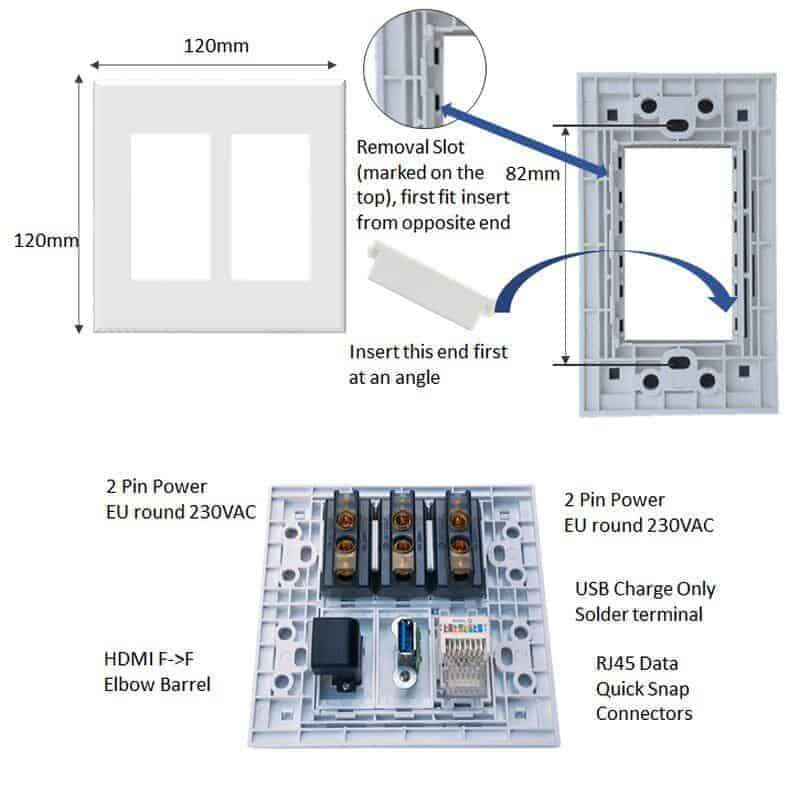

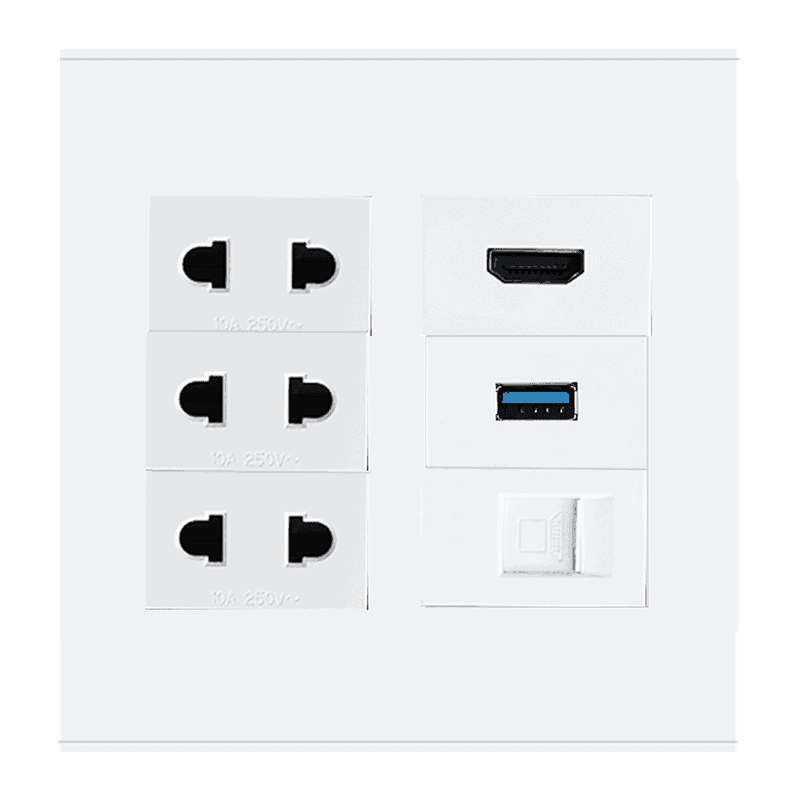

This wall plate has 1x HDMI Female — female (barrel), 1x USB 3.0, 3x Power 2 PIn EU and 1x RJ45 Ethernet LAN
If this wall plate is not as per your requirement you can design your our custom Wall Plates & Inserts
Step1: Choose your own custom Base Plates [click here]
Step2: Choose you own Keystone Inserts [click here]
Specifications
Dimensions: 120 x 120mm x 10mm (L x W x D) D = empty wall plate / wall plate 4x4
Colour: White. (Images have been deliberately darkened)
Material: Flame Retardant PVC
Note: The items ship loose to give you the option of 'in which sequence' they should be.
What's in the Box?:
1x Wall Plate 4x4 - 6 Slot
1x Insert HDMI - female elbow
1x Insert 1x USB 3.0
1x Insert 1x RJ45
3x Insert Power EU 2 Pin round
Step1: HTECH Base Plate Options. (Depth is keystone insert dependant)
- Trunking Wall Plates: 86 x 86mm, 1, 2 & 3 slot
- Wall Plates: 2 x 4, 120 x 70 mm, 1, 2 & 3 slot
- Wall Plate: 4 x 4, 120 x 120mm, 6 slot
- Extended Plate, 195 x 70mm, 6 slot
- Floor / table Top Plate: 120 x 120mm , 3 slot. Depth 60mm
Step 2: HTECH Keystone Insert Options for Trunking, Wall & Floor Plate
2.1 Blanking
2.2a HDMI straight barrel (F-F)
2.2b HDMI elbow 90° barrel (F-F)
2.3a RCA Digital audio 1x Y
2.3b RCA Stereo 2x R+W
2.3c RCA Component 3x R+G+B
2.3d RCA AV 3x Y+R+W
2.4a VGA straight barrel (F-F)
2.4b VGA straight terminal block
2.5 3.5mm Aux Jack audio earphone 3pin terminal block
2.6 6.5mm Aux jack headphone, guitar 3pin terminal block
2.7 DIN Meeting 6 pin solder
2.8 DIN Meeting 8pin solder
2.9 Banana Stereo Audio Speaker connections 2pin solder
2.10a XLR / Lennon male 4pin solder connections
2.10b XLR / Lennon female 4pin solder connections (2 slots)
2.11 Speakon female 4pin spade or solder connections (2 slots)
2.12 RJ11 telephone, quick snap connector
2.13a RJ45 single + dust cover Ethernet LAN, Networking, Data, quick snap connector
2.13b RJ45 2x dual, Ethernet LAN, Networking, Data, Internet, quick snap connector
2.14 USB 3.0 straight barrel (F-F)
2.15 USB 2.0 2x Dual straight barrel (F-F) 4pin solder
2.16 F type modular RF connection for satellite dish connections DSTV
2.17 TV Connector for distribution terrestrial antenna, 2pin solder connections
2.18 SC for Fiber Optic connections barrel (F-F)
2.19 LC for Fiber Optic connections barrel (F-F)
2.20 Power 2pin EU round 10A 230V 2pin terminal block
2.21 DIY Use a Blank Insert to make anything not listed e.g. fuse holders, LED's
