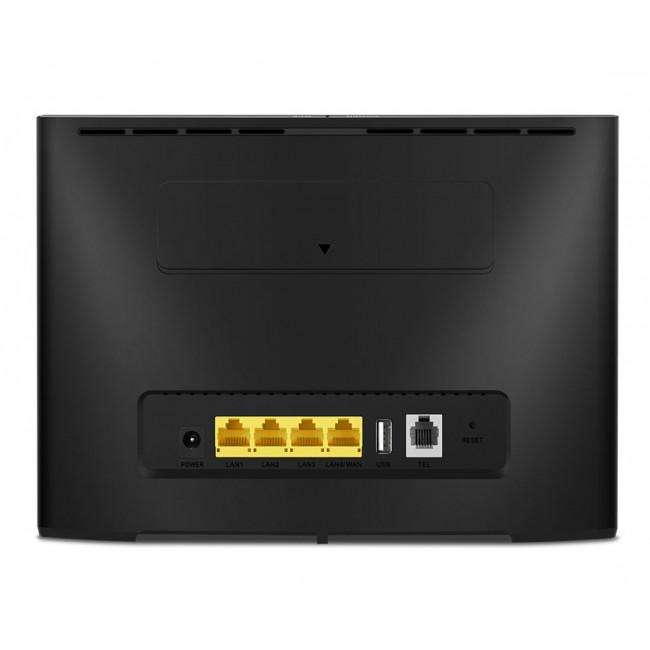

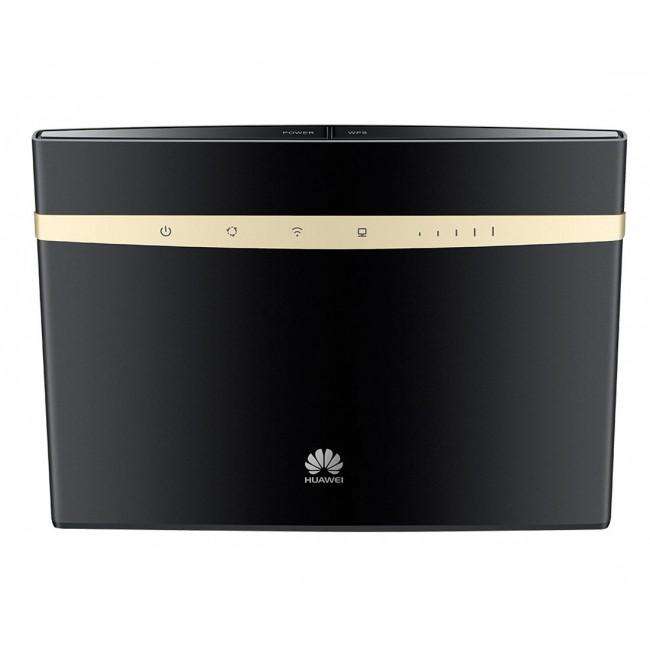

Huawei B525 is a new 4G LTE Advanced router with carrier aggregation on HiSilicon LTE Cat6 Chipset, which could achieve download speed to 300Mbps and upload speed to 50Mbps. Huawei B525 4G could support up to 64 wireless terminals to access the internet simultaneously with the WiFi 802.11ac dual bands(2.4GHz & 5GHz). There are four RJ45 ports for Ethernet cable, one USB interface(ability to connect an external drive or printer) and one Telephone port(RJ11). Two external antenna connectors are covered by a cap on the back.
Huawei B525 CPE is a powerful 4G LTE Ultra desktop router so that you will enjoy the fastest wireless internet in your home or office. With this application HiLink (available on Android and IOS), the B525 LTE CPE can be managed remotely using your smartphone. Huawei had already an LTE cat6 router E5186, which has similar features to B525 WiFi router. It combines the advantages of a well-known devices and . Users can use the interface WLAN 802.11ac (max. 786 Mbps) or 4 Gigabit LAN ports.
Huawei B525 4G LTE Cat6 Router features and technical specifications:
- Supports the default gateway address: 192.168.8.1.
- Supports the Address Resolution Protocol (ARP).
- Supports the Internet Control Message Protocol (ICMP).
- Supports the domain name service (DNS).
- Supports NAT and Network Address and Port Translation (NAPT), which complies with RFC2663, RFC3022, and RFC3027.
- Supports CONE NAT.
- Supports fragmented message identification during common NAT.
- Enables and disables the DHCP server.
- Configures DHCP server address pools.
- Sets the lease time.
- Writing/Sending/Receiving extra-long messages
- Supports G.711a/G.711u/G.726 (-24/-32)/G.722 for encoding and decoding.
- Supports CS voice communication over UMTS and GSM networks.
- Supports the circuit switched fallback (CSFB).
- Filters LAN MAC addresses.
- Filters LAN IP addresses.
- Filters URLs.
- Supports demilitarized zone (DMZ).
- Supports Universal Plug and Play (UPnP).
- Supports Application Level Gateway (ALG).
- DNSv6/v4 server and client
- Display IPv6/v4 WAN address
- Manage the connected devices.
- Change CPE's SSID and password.
- Working temperature: 0°C to 40°C
- Storage temperature: -20°C to +70°C
4G LTE Cat6 wireless router
Platform: HiSilicon LTE Cat6 Chipset, Cortex A9 Processor
Network mode: LTE/UMTS/HSDPA/HSUPA/EDGE/GPRS/GSM
FDD-LTE Peak download speed up to 300Mbps and upload speed to 50Mbps
TDD-LTE Peak download speed up to 220Mbps and upload speed to 10Mbps
* Huawei B525s-65a:
- Support 4G LTE Band 1/3/4/5/7/8/20/19/26/28/32/38/40/41 (FDD 2600/2100/1900/1800/1700/1400/900/850/800/700MHz, TDD 2300/2500/2600MHz)
- Support 3G DC-HSPA+/HSPA+/UMTS Band 1/2/5/6/8/19
- Support 2G GSM/GPRS/EDGE 850/900/1800/1900MHz
