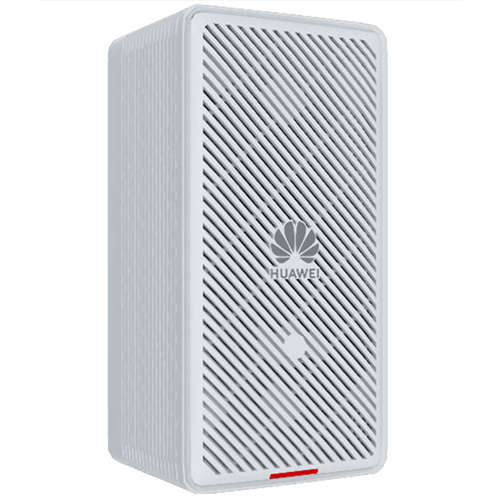

The Huawei AirEngine 5760-22WD is a compact Wi-Fi 6 (802.11ax) wall plate access point designed for high-density environments such as hotels, dormitories, and small offices. Featuring a sleek design and integrated antennas, it provides robust dual-band wireless connectivity with a maximum data rate of up to 2 Gbps. With 3 Gigabit Ethernet ports, PoE support, and cloud-based management, it's ideal for seamless deployment in structured cabling environments.
Key Features & Benefits
Wi-Fi 6 (802.11ax) for faster speeds, reduced latency, and higher efficiency
Dual-band operation with a peak throughput of 2 Gbps
2×2 MIMO and 2 spatial streams for stable, high-speed connectivity
PoE-powered with wall plate mounting for flexible, cable-free deployment
Three GE Ethernet ports for wired device connectivity
Integrated antennas and compact form factor for discreet installation
Supports WPA3 and WPA2 security standards
Centralized cloud/web-based management for ease of administration
Enhanced Quality of Service (QoS) for voice, video, and critical applications
Complies with FCC, CE, RoHS certifications
Ideal Uses
Hotel rooms or guest accommodations requiring high-speed in-room internet
Student dormitories or campus housing with dense device usage
Small meeting rooms or conference areas needing reliable wireless access
Retrofit scenarios with existing wall plate cabling infrastructure
Specifications
Condition: device has been unpacked and inspected, never deployed
Brand: Huawei
Model: AirEngine 5760-22WD
Technology: Wi-Fi 6 (802.11ax)
Type: Wall Plate Remote Unit (RU)
Frequency Band: Dual-band
Maximum Data Rate: 2 Gbps
MIMO Configuration: 2×2
Spatial Streams: 2
Antennas: Integrated

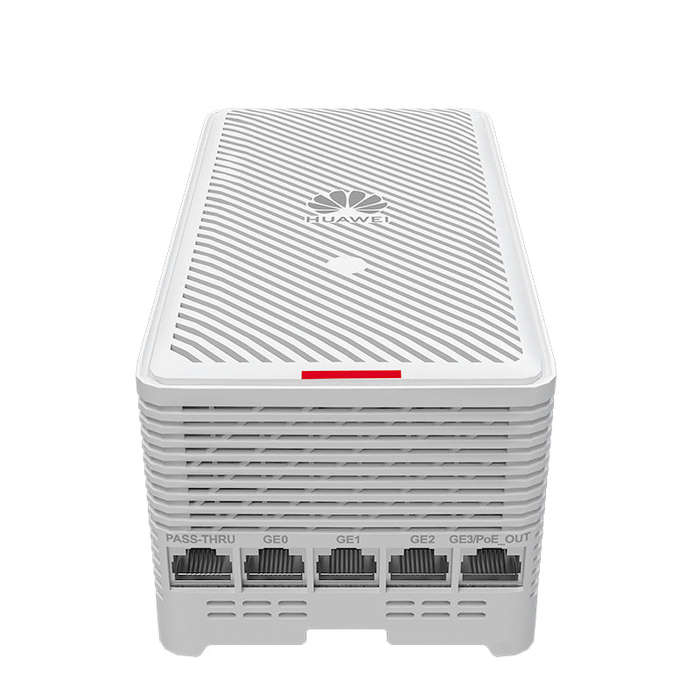

Ethernet Ports: 3 × GE Ports
Power Supply: Power over Ethernet (PoE)
Mounting: Wall plate mounting
Security Protocols: WPA3, WPA2
Management Interface: Cloud-based or Web-based
Quality of Service: Enhanced QoS features
Operating Temperature: -10°C to 50°C
Operating Humidity: 5% to 95% (non-condensing)
Dimensions (H × W × D): 86 mm × 86 mm × 45 mm
Certifications: FCC, CE, RoHS
Warranty: 6 Month Carry-In Warranty
What's in the Box: Huawei AirEngine 5760-22WD Access Point Only
