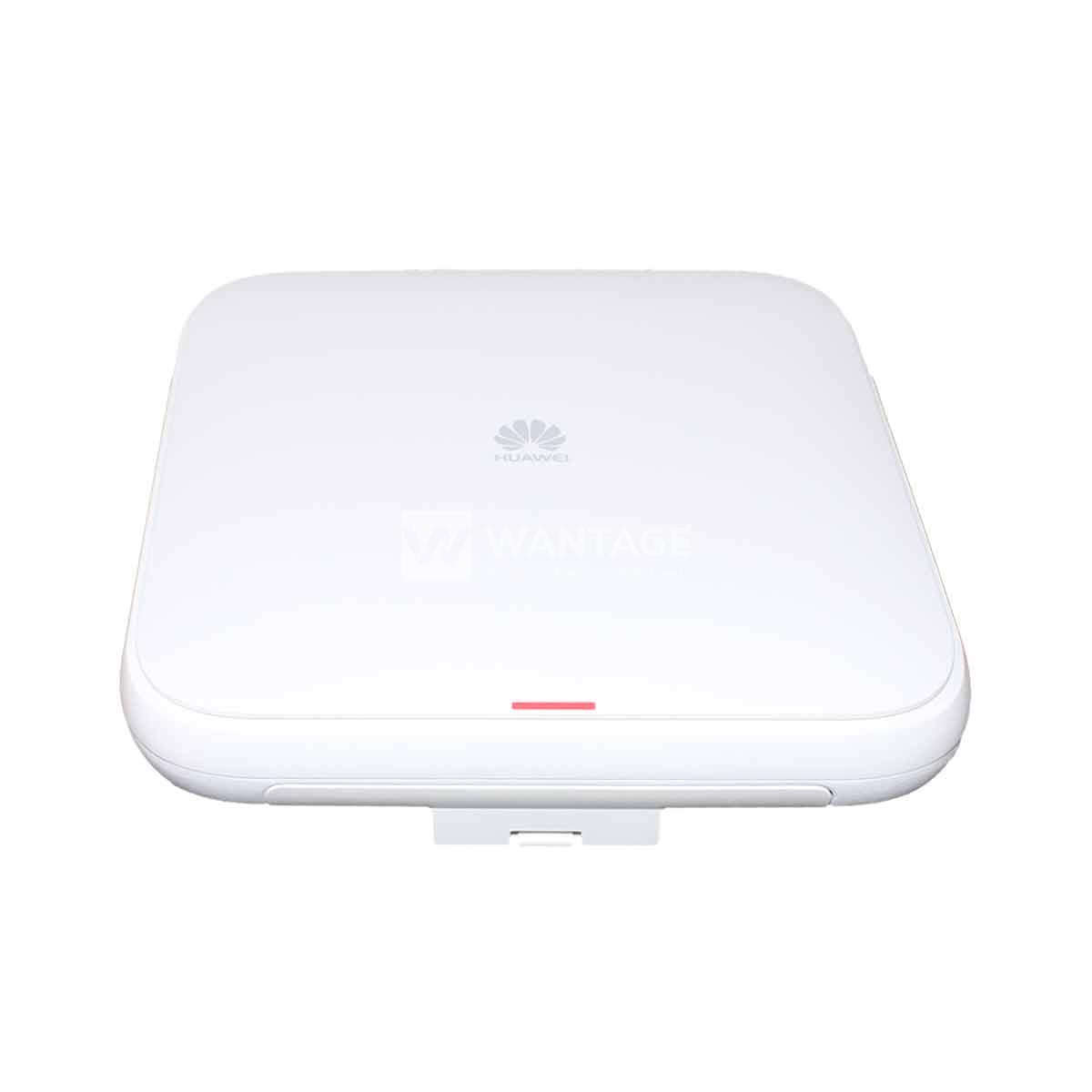

The Huawei AP7060DN is a premium-grade Wi-Fi 6 (802.11ax) access point engineered for high-capacity indoor environments. It offers blazing performance with 4x4 MIMO on 2.4GHz and 8x8 MIMO on 5GHz, delivering fast, stable wireless connections for up to 512 users.
Designed for modern enterprise deployments, the AP7060DN features dual 10GE/GE uplinks, BLE 5.0, and support for ZigBee/RFID IoT modules, making it a powerful solution for smart offices, education, and high-density public venues.
Key Features & Benefits
Wi-Fi 6 (802.11ax) with 4×4 (2.4GHz) + 8×8 (5GHz) MU-MIMO for top-tier throughput
Combined antenna gain of 4 dBi (2.4GHz) and 2 dBi (5GHz) for broad, even coverage
Dual high-speed uplinks: 1 × 10GE/5GE/2.5GE/GE + 1 × GE RJ45 interface
Integrated BLE 5.0 and IoT module slot for ZigBee or RFID smart applications
PoE++ (802.3bt) and PoE+ (802.3at) support with dynamic radio scaling
Serves up to 512 concurrent users and 16 SSIDs per radio
Built-in omnidirectional dual-band antennas and IP41 environmental protection
Multiple mounting options with sleek, low-profile form factor
Ideal Uses
Corporate campuses with dense wireless device deployments
Schools, universities, and training facilities with hybrid digital infrastructure
Hospitals and smart buildings requiring secure IoT integration
Airports, malls, and large indoor public spaces needing enterprise-grade Wi-Fi
Specifications
Condition: item opened for inspection, unused and in original packaging
Brand: Huawei
Model: AP7060DN
Technology: Wi-Fi 6 (802.11ax)
MIMO Configuration:
2.4GHz: 4×4
5GHz: 8×8
Max Concurrent Users: 512
SSIDs per Radio: 16
Interfaces:
1 × 10GE/5GE/2.5GE/GE RJ45
1 × GE RJ45
1 × Console (RJ45)
1 × USB
IoT Expansion: 1 × external IoT slot (supports ZigBee & RFID)
Bluetooth: BLE 5.0
Antenna Type: Built-in omnidirectional dual-band
Antenna Gain (Peak):
2.4GHz: 4.6 dBi
5GHz: 5.6 dBi
Combined Antenna Gain:
2.4GHz: 4 dBi
5GHz: 2 dBi
Transmit Power (Max):
2.4GHz: 24 dBm
5GHz: 27 dBm
Power Input:
DC: 42.5V 57V
PoE: IEEE 802.3bt (PoE++) / 802.3at (PoE+)
Power Consumption:
PoE++: < 30W
PoE+: < 25.5W
Operating Temperature: 10°C to +50°C
Storage Temperature: 40°C to +70°C
Operating Humidity: 5% 95% (non-condensing)
Dust/Water Protection: IP41
Altitude Range: 60 m to +5000 m
Atmospheric Pressure: 53 kPa to 106 kPa
Dimensions: 220 mm × 220 mm × 57 mm
Weight: 1.8 kg
Warranty: 3 Month Carry-In Warranty
What's in the Box: Huawei AP7060DN Access Point Only (No Mounting Kit or Accessories Included)
Compliance & Standards
Wi-Fi Protocols: 802.11a/b/g/n/ac/ax
Security: WPA3, WPA2, WPA, 802.1X, AES, TKIP, 802.11i
IEEE Standards: 802.11e/k/u/v/w/r/d/h
Safety Standards: UL 60950-1, IEC 60950-1/62368-1, EN 60950-1
EMC Compliance: EN 301 489, FCC Part 15, CISPR 22/24, IEC61000 series
RF Standards: ETSI EN 300 328 / 301 893, RSS-210, AS/NZS 4268
Environmental: RoHS (2002/95/EC, 2011/65/EU), WEEE (2012/19/EU), REACH (1907/2006/EC)
