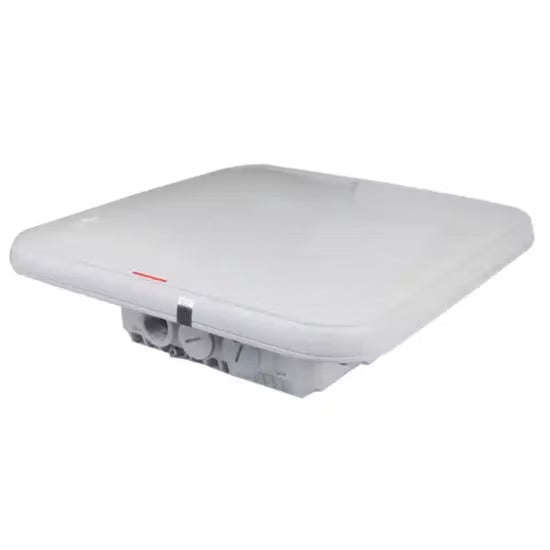

The Huawei AP8050TN-HD is a high-performance Wi-Fi 6 (802.11ax) outdoor access point designed to provide robust, high-speed wireless coverage in demanding outdoor environments. With built-in high-density smart antennas, support for up to 768 concurrent users, and a peak throughput of 2.134 Gbps, this unit is ideal for enterprise-grade wireless deployments in campuses, stadiums, and industrial zones.
Built for extreme weather conditions, the AP8050TN-HD supports temperatures from 40°C to +65°C, is PoE-powered (IEEE 802.3at compliant), and features Huawei's advanced antenna and RF management technologies for optimal outdoor performance.
Key Features & Benefits
Wi-Fi 6 (802.11ax) support with high-efficiency performance in outdoor spaces
Delivers a peak throughput of 2.134 Gbps with 2×2:2 MIMO across three radios
Supports up to 768 concurrent users ideal for large public or enterprise areas
Built-in high-density smart antennas for optimized outdoor coverage
PoE-powered via IEEE 802.3at for simplified installation
Temperature hardened operates in extreme conditions from 40°C to +65°C
Dual 5GHz radio support improves bandwidth and reduces interference
Designed for midsize enterprises, educational institutions, and public venues
Ideal Uses
University campuses with open courtyards and multi-building layouts
Outdoor venues such as stadiums, arenas, and concert grounds
Industrial zones and smart manufacturing facilities requiring wireless control
City-wide public Wi-Fi zones and government outdoor infrastructure
Specifications
Condition: previously opened for inspection, unused and in original packaging
Brand: Huawei
Model: AP8050TN-HD
Technology: Wi-Fi 6 (802.11ax)
MIMO Configuration: 2×2:2
Concurrent Users: 768
Max Data Rate: 2.134 Gbps
Transmit Power (Max):
2.4GHz: 21 dBm
5GHz-1: 20 dBm
5GHz-2: 21 dBm
Antenna Type: Built-in high-density smart antennas
Power Input: IEEE 802.3at PoE compliant
Max Power Consumption: 19.4W
Operating Temperature: 40°C to +65°C
Dimensions (H × W × D): 100 mm × 320 mm × 320 mm
Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2
Mounting: Outdoor wall or pole mount (brackets not included unless specified)
Warranty: 3 Month Carry-in Warranty
