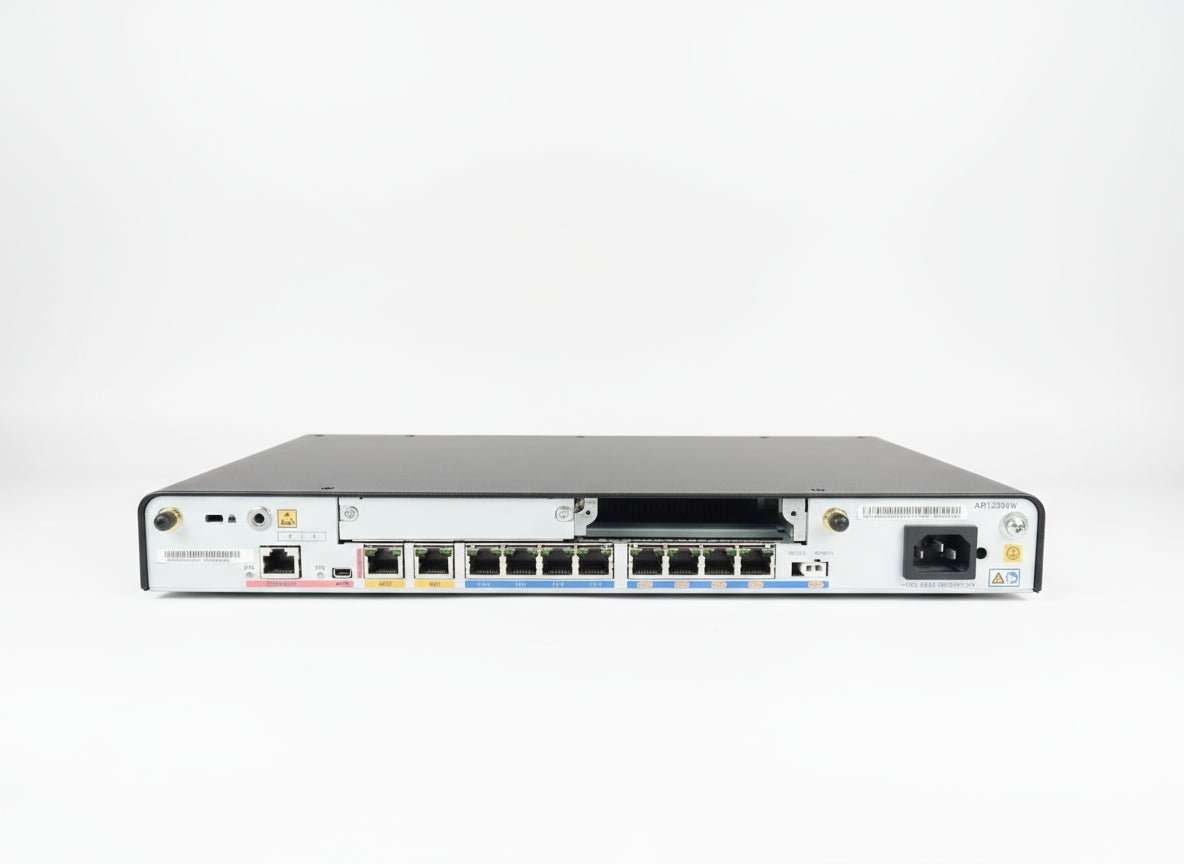

The Huawei AR1220VW is a versatile enterprise access router designed for branch office and SMB networking. With integrated Wi-Fi, voice-ready DSP support, and flexible WAN/LAN configurations, it delivers reliable connectivity for up to 100 users.
Supporting advanced routing, security, and firewall capabilities, the AR1220VW provides 200 Mbps WAN throughput with services enabled and up to 900 Mbps firewall performance. Its compact 1U rackmount design, multiple interface options, and PoE capability make it suitable for converged data, voice, and wireless deployments.
200 Mbps WAN performance with services enabled for business continuity
2 × GE WAN and 8 × FE LAN ports (LAN ports configurable as WAN) for flexible deployment
Integrated Wi-Fi (802.11b/g/n) for wireless connectivity
Supports up to 32 voice channels via DSP modules for VoIP applications
Advanced firewall with 900 Mbps large packet performance
Multiple VPN, routing, and security protocols for secure enterprise networking
PoE support (via external 100W power source) for powering network devices
Branch office access router with integrated wireless and voice support
Secure WAN gateway for SMB or enterprise edge networks
Unified voice, data, and wireless network deployment
Networks requiring high firewall throughput and reliable VPN performance
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Model: Huawei AR1220VW (AR0M12VWBA00)
Recommended Users: 100
WAN Speed with Services: 200 Mbps
Firewall Performance (Large Packet): 900 Mbps
Device Switching Capacity: 8 Gbps
Slot Switching Bandwidth: 2 Gbps (SIC & WSIC slots)
Fixed WAN Ports: 2 × GE
Fixed LAN Ports: 8 × FE (configurable as WAN)
SIC Slots: 2
WSIC Slots (Default/Max): 0/1
DSP Slots: Supports 32 channels
Wi-Fi: 802.11b/g/n
USB Ports: 2 × USB 2.0
Mini-USB Ports: 1
Serial/Auxiliary Console Port: 1 × RJ45
Memory: 512 MB
Flash: 256 MB
Max Power Consumption: 60 W
PoE Power: External 100W
AC Input Voltage: 100240 V, 50/60 Hz
DC Input Voltage: N/A
Dimensions (H × W × D): 44.5 × 390 × 220 mm
Weight: 2.9 kg (without interface cards)
Operating Temperature: 0°C to 45°C
Humidity: 5%95% RH, non-condensing
Warranty: 3 Month Carry-in Warranty
What's in the Box: Huawei AR1220VW Router
