SPECIFICATIONS:
Huawei AX2 Dual Band Wi-Fi 6 Router AX200 Performance: 300Mbps + 1201Mbps, Operating Frequency: 2.4GHz / 5GHz, Memory: 128MB Flash, 128MB RAM, LED Indicator, Connectivity: 3 x Gigabit Ethernet 10/100/1000 Mbps WAN/LAN Ports, Antenna: 4 x External High-Performing Antenna Array
Dimensions and Weight
Height
29 mm
Width
257.6 mm
Depth
163.5 mm
Weight
About 216 g (without packaging)
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
Wi-Fi
Transmission Standard:
802.11ax/ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate:
up to 300 Mbit/s over a 2.4 GHz Wi-Fi network
up to 1201 Mbit/s over a 5 GHz Wi-Fi network
Wireless Frequency Band:
2.4 GHz & 5 GHz
Memory
128 Mbytes RAM + 128 Mbytes ROM
*Due to limitations in CPU processing power, memory used by the operating system and pre-installed applications, the actual space available to users may be less than the stated memory capacity. Actual memory space may change due to application updates, user operations, and other related factors.

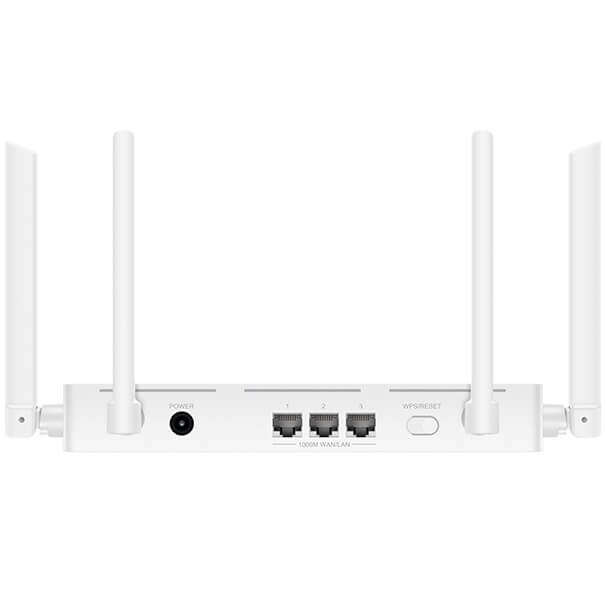

Network Port
3 x 10/100/1000 Mbps WAN/LAN ports, auto-adaptation
Interface
Power port, Network port, WPS/Reset button
LED Indicator
one LED Indicator
Power Supply
Power: AC / DC Power Supply: 12V DC, 1 A
Software Functions
APP:
HUAWEI AI Life APP
Features:
802.11kv protocol, IPv4/IPv6, Wi-Fi timer, Guest Wi-Fi, Device speed limiting, MAC address filter, Parental control, VPN pass through, DMZ/virtual server, PPPoE/ DHCP/ Static IP address/Bridge WAN connection methods
Security
WPA3, Wi-Fi access control, Guest Wi-Fi, SSID hidden, Firewall, DMZ, Parental Control
Environment
Temperature
Operating temperature: 0 °C ~ 40 °C,
storage temperature: -40 °C ~ +70 °C
Humidity
Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95%, non-condensing
Key
WPS/Reset, 2 in 1
Packing List
Power adapter: 1
Network cable: 1
Quick Start Guide and Safety Information: 1
