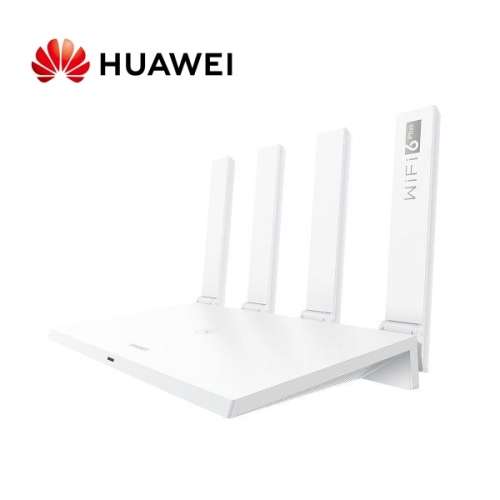

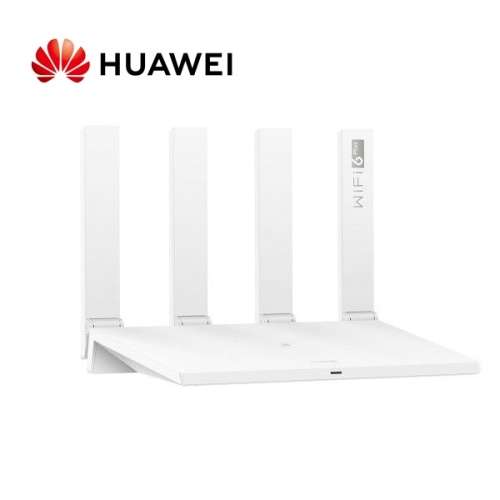

Huawei AX3 AX3000 (WS7100) Dual Band Fibre Wi-Fi Router

HUAWEI WIFI AX3 (Dual-core)

Router is still in original packaging and box. Purchased from Afrihost for my company office as a backup. Box was opened, router was tested but never used again. Router is as good as new.

Product Code HUAWEI WiFi AX3 Dual-Core
EAN Code 6941487209637
Model WS7100-20

ICASA Certificate Number TA-2020/6463

HUAWEI Wi-Fi6 plus

• HUAWEI unique Dynamic Narrow Bandwidth technology, the chipset level synergy between routers and devices, improves the signal of HUAWEI Wi-Fi 6 smartphones to new height.
• 3x Speed: Not only 1024 QAM but also 160Mhz Channel bandwidth, which maximizes the speed of Wi-Fi 6 and even the Wi-Fi 5 phones or tablets supporting 160Mhz channel bandwidth.
• 4x Capacity: OFDMA from Mobile Telecommunication field allows sharing the spectrum resources simultaneously.
• 2/3 Latency Cut: OFDMA and the latest spatial reuse technology BSS coloring increase your network efficiency and decrease interference.
• 30% Power Saved: On-demand waked-up functionality saves battery for all Wi-Fi 6 connected devices.

Dual-core 1.2GHz CPU

Computing power up to 6000 DMIPS ensures smooth network experience in multi-connection scenarios.

HUAWEI HomeSecTM

• Commercial grade defence technology guards your Wi-Fi from strangers' brute-force cracking.

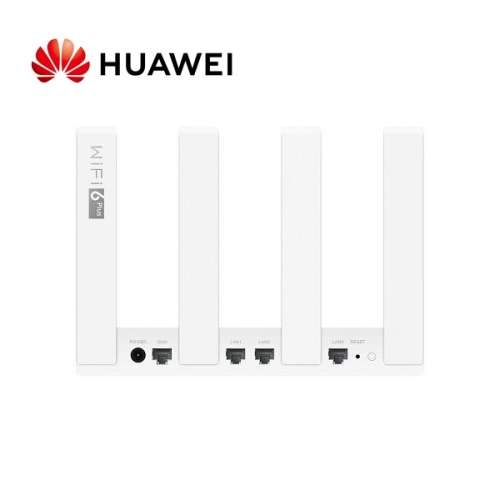

• Button/Ports
• H button
• Connect the power adapter to this port.

Power port

WAN port
The port that connects to the Internet (e.g., a fiber optic modem/broadband modem/cable modem).

LAN ports

The ports that connect to network devices such as a computer.

Reset button

When the router is powered on, you can use a pointed object to press and hold the reset button for more than two seconds until the indicator turns off. The router should now be restored to factory settings.

Power button

Press once to power on the device or press and hold for at least three seconds to power it off.

Functions and Features

• Automatically Identifying Internet Access Mode
• The router can automatically identify your Internet access mode (PPPoE/DHCP). No manual operation is required.
• Multi-router Network Distribution
• Supports network expansion by connecting multiple HUAWEI HiLink routers using the HiLink button.
• Supports network expansion by connecting multiple HUAWEI HiLink routers using Ethernet cables.
• Supports the auto-sync of your router's Wi-Fi configurations: If the Wi-Fi name, password, or router management password is changed on your primary router, the configuration will automatically sync to the others HUAWEI HiLink routers.
• If there are multiple routers in your home, your Wi-Fi device will be automatically switched to a better-performing router.

Power-saving Features

The router supports three different power modes: High, Mid and Low to cater to your different needs at different time of the day and in different environments.
Wi-Fi timer allows you to disable Wi-Fi during specific time periods (such as after midnight or when you're at work) in order to reduce power consumption.

Parental Control

• The parental control feature allows you to set Internet access time limits and restrict access to certain websites to keep your family members (especially minors) protected.
• Router Management
• You can access your router's web-based management page from your computer, mobile phone or tablet. Alternatively, you can download and install HUAWEI AI Life on your mobile phone or tablet for faster configuration.

VPN Passthrough

• Supports VPN passthrough (requires VPN dialling from LAN device).
• WPS
• Supports the Wi-Fi device connect to the router network conveniently through the WPS function.
• Other Supported Features
• NAT and NAPT (RFC 1631, RFC 2663, RFC 2766, and RFC 3022)
• Supports access to the IPv6 network.
• DHCP server and clients
• DNS proxy

Technical Specifications

• Chipsets
• CPU: Hi5651L, 1.2GHz Dual-Core
• 2.4 G Wi-Fi chip: Hi1152(2x2 Wi-Fi2.4GHz)
• 5G Wi-Fi chip: Hi1152(2x2 Wi-Fi5GHz)
• 3.1.2 RAM and Flash Memory
• RAM: 128MbytesDDR3
• Flash memory: 128MB Nand FLASH

Wi-Fi

• Supports 802.11b/g/n/ax (2.4 GHz, wireless rates up to 574Mbps).
• Supports 802.11a/n/ac/ax (5 GHz, wireless rates up to 2402Mbps).
• Supports simultaneous dual-band (11ax2.4 GHz 574Mbps and 11ax5 GHz 2402MbpsWi-Fi, wireless rates up to 2976Mbps).
• Note: The data rates shown are theoretical in nature. Actual data rates may vary depending on operating environment, wireless device, and other factors. Data rate comparisons (if any) are for the purpose of scientific explanation and should be used for reference only.

WAN Ethernet Port

100/1000 Mbit/s self-adaptive Ethernet port: 1

LAN Ethernet Port

100/1000 Mbit/s self-adaptive Ethernet ports: 3

Power Supply Specification

• Power supply: 12V DC, 1A
• Power consumption: < 12W
• Input voltage: 100 -240V AC
• Input voltage frequency: 50 60 Hz

What's in the box

• 1x Power adapter

• 1x Huawei Wifi AX3 Dual-Core Router

• 1x Quick Start Guide and Safety Information
