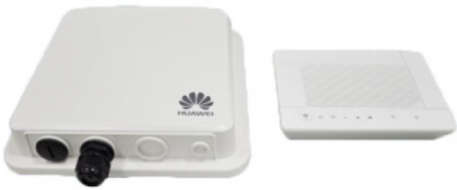

HUAWEI B222 LTE OUTDOOR ROUTER

Huawei B222 Outdoor CPE LTE modem - This model is the Huawei B222s-40, LTE TDD Band B40: 2300MHz, Output Power: 23 dBm (200mW), Gross Throughput: DL 80 Mbps, UL 20 Mbps, Networking Protocol: IEEE 802.11b/g/n, Mounting Kit Included, Installer Brown Box Version, Retail Box, 1 year Limited Warranty

Please Note This Huawei B222 Outdoor CPE LTE modem is only be compatible with Telkom LTE and cannot be unlocked

Features
• Huawei B222s-40 B222 Outdoor CPE LTE modem-Telkom locked

• LTE frequency band B40 2300.
• Output Power: 23 dBm (200mW)
• Receiving Sensitivity: -94 dBm
• Ethernet LAN Port: One RJ-45 port 10/100 auto-sensing, auto MDX
• LED Indicators: No
• Antenna: 19 dBi, ±45°
• Gross Throughput: DL 80 Mbps, UL 20 Mbps
• USIM: Support 1.8 / 3.3V 2FF USIM
• Environmental: IP67
• Operating Input Voltage Range:45 - 56 VDC
• Networking Protocol: IEEE 802.11b/g/n
• Supports WPS: Yes
• Supports VPN: Yes
• Supports WDS: Yes
• Built-in Firewall: Yes
• Installer Brown Box Version , This not Retail Packaged Box Product
• Dimensions: 25.5 x 25.5 x6cm
• Weight: 2.0 kg

Please Note
Make sure you have the following things before you start:
Internet Access: You need a SIM card from an LTE ISP (Internet Service Provider - WORKS WITH TELKOM NETWORK ONLY). You may also need a PIN code to use the SIM card.
VoIP Account: If you wish to make phone calls over the Internet, you need the account information provided by your VoIP service provider (the company that lets you make phone calls over the Internet).
- Web Browser: Internet Explorer 6.0 and later versions, with JavaScript enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later versions. The browser will be used to access the Internet and/or access the LTE Devices' Web Configurator.

What's in the box
• 1x Huawei B222-40 Outdoor LTE Modem-Telkom Locked
• 1x Power adapter & AC Power Cord
• 1x Cable Gland Body, Claw, and Nut
• 1x Mounting Kit
• 1x Ethernet Cable
• 1x Grounding Kit
• 1x Quick Start Guide
