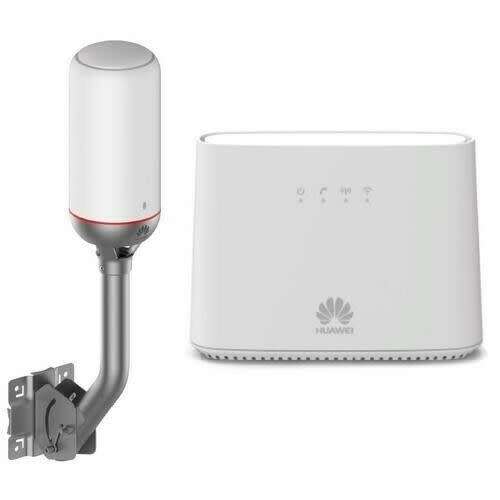

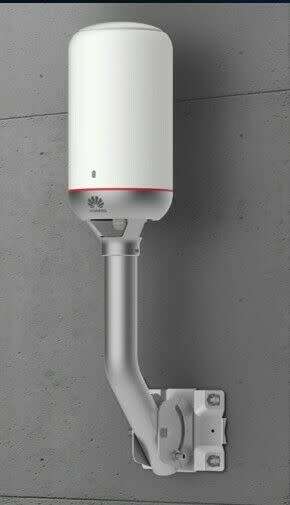

Huawei B2368 LTE Cat12 CPE --Worth R9800(Boxed-units)

Huawei B2368 is a Cat 12 CPE featuring industry-leading radio performance and support for concurrency of 4x4 MIMO and 2CC CA. It can achieve a peak downlink rate of 600 Mbit/s. The Huawei B2368 is flexible and easy to install, minimizing the need for onsite installation by professionals, which is time-consuming and expensive. This outdoor CPE has an innovative, integrated design, with both directional and omnidirectional antennas. Huawei offers a directional external antenna with a gain of up to7 dBi (high-band). This antenna supports SMA and TS-9, the most commonly used interfaces in the industry, and a wide range of frequency bands, including almost all LTE frequency bands commercially used around the world from 698 MHz to 3800 MHz.

Huawei B2368 is the industry's first outdoor CPE that does not need to be aligned with the base station, which reduces the total installation time by more than 25%. In many cases, users can install this CPE by themselves, significantly lowering the cost of service provisioning and OPEX for operators.

Huawei B2368 (B2368-22) LTE CPE Technical Specifications:

* LTE Cat.12/Cat.13 CPE

* DL Cat.12/UL Cat13

* Chip platform: HiSilicon Balong 750

* LTE Peak download speed to 600Mbps, upload speed to 150Mbps

* Support 4G LTE Band 1/3/7/8/20/38/40/41/42/43

* Antenna: 9dBi Gain in 3.5GHz

* WLAN: 802.b/g/n/ac, dual band(2.4GHz and 5GHz)

* Power supply: PoE(Power over Ethernet)

* Interfaces:

- 1 x RJ45 Ethernet LAN,

- 1 x RJ11 Telephone port

- 1 x USB port

- 1 x SIM slot

* OS supported: Windows 2000 SP4 / XP SP2 / Vista / Win7 / Win8 / Win10 , Mac after OS X 10.4, Linux

Shipping =R250

Boxes was opened to inspect
