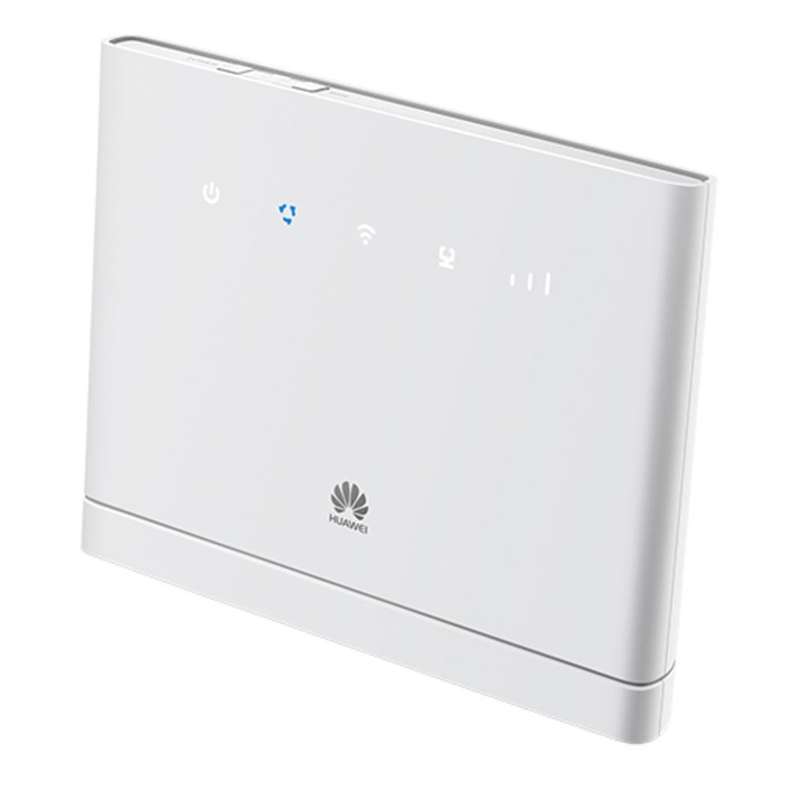

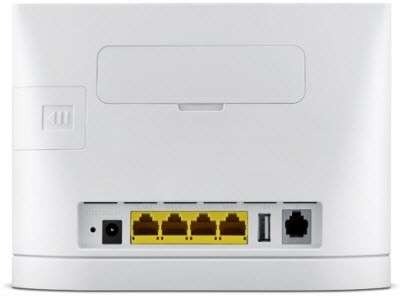

Huawei B315 4G LTE WiFi 150Mbps Router- 4x 10/100- 2x RJ11- USB (B593 upgrade) - White

*No External antennas included (uses built-in internal antennas)

No Quick Start Guide included. Please see the manual at the bottom of the page.

Features:

The HUAWEI B315s-22 LTE CPE is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services.

Fast LTE CAT4 connections of up to 150Mbps
Ethernet connections are no longer bottlenecks. The B315 delivers maximum speeds of LTE CAT4 150Mbps through its Gigabit Ethernet port.

Strong Wi-Fi coverage
The B315's enhanced Wi-Fi extends wireless coverage and eliminates dead corners. It offers wireless access for up to 32 devices.

Extreme versatility
The B315 lets you connect using prepaid 4G SIM cards. It also features a USB 2.0 port for HDD, flash drives, network storage devices and printers.

Total control over system upgrades
Even after a successful upgrade, you can easily restore software to the previous version. Simply hold the WPS and Power buttons for a seamless rollback

Upgraded version of Huawei B593:
1. The B315 has faster wireless performance than the B593. The B593 max is 100Mbps and the B315 is 150Mbps
2. The main advantage of the B315 is that it has a complete suite of Voice over IP (VOIP) functions which the B593 doesn't have.

Specifications:

The frequency bands of the product are as follows.
- LTE: LTE B1/B3/B7/B8/B20/B38 (800/900/1800/2100/2600MHz 4G LTE-TDD 2600MHz)
- UMTS: Band 1/8 2100 MHz/900 MHz
- GSM: Band 2/3/5/8 1900 MHz/1800 MHz/850 MHz/900 MHz

- Supports all SA Networks (INCLUDING RAIN)

The B315s-607 supports the following standards:
- Long Term Evolution (LTE)
- Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
- High Speed Packet Access Plus (HSPA+)
- High Speed Packet Access (HSPA)
- Wideband Code Division Multiple Access (WCDMA)
- Enhanced Data Rates for Global Evolution (EDGE)
- General Packet Radio Service (System) (GPRS)
- Global System for Mobile Communications (GSM)
- Gigabit Ethernet (GE)

The B315s-22 supports wired and wireless network access, and provides data routing service.
The B315s-22 provides the following services:
- Data service
- Voice service
- SMS
- Security service
- Local maintenance management function

The B315s-22 supports the following features:
- Access to LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/GPRS/GSM wireless networks
- Access to Gigabit Ethernet networks
- High-speed data access
- LTE FDD: DL 150 Mbps, UL 50 Mbps
- LTE TDD: DL 112 Mbps, UL 10 Mbps
- DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps
- HSPA+: DL 21 Mbps (64QAM) / 28 Mbps (MIMO), UL 5.76 Mbps
- HSPA: DL 14.4 Mbps, UL 5.76 Mbps
- WCDMA PS: 384 kbps
- EDGE: DL 296 kbps, UL 236.8 kbps
- GPRS: 85.6 kbps
- Support maximum data transmission rate of 300 Mbps 802.11b/g/n
- SMS
- IPv4 /IPv6 dual stack
- Compatibility with RJ11 telephone ports; can be set to Voice over Internet Protocol (VoIP) or Circuit switch (CS) voice mode
- USB 2.0 host port

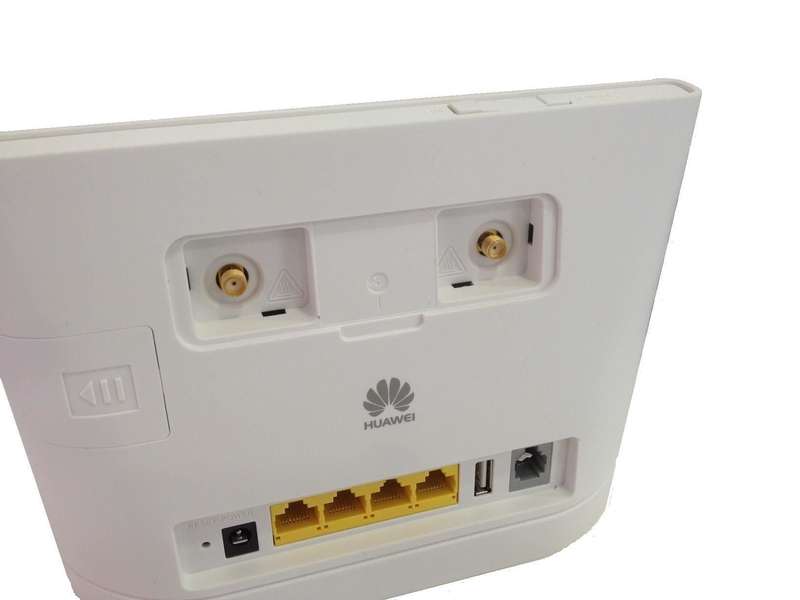

- External antenna port
- Support for Huawei HiLink App
- WPS 2.0
- HOTA updates
- Built-in DHCP Server, DNS RELAY and NAT
- Security services. Provides instant protection to block potential security risks and intrusion attempts
- Windows 8.1, Windows 8, Windows 7, Windows Vista SP1/SP2, Windows XP SP3, and Mac OS X 10.9, 10.8, and 10.7 with latest upgrades
- User-friendly design of LED indicator. Easy to observe the status of equipment.

Dimensions: 22 x 19 x 7cm

Weight 600g
