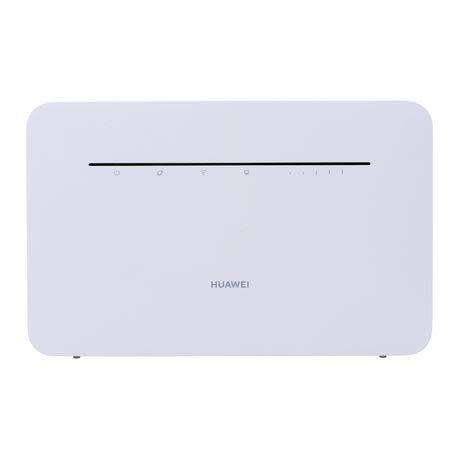

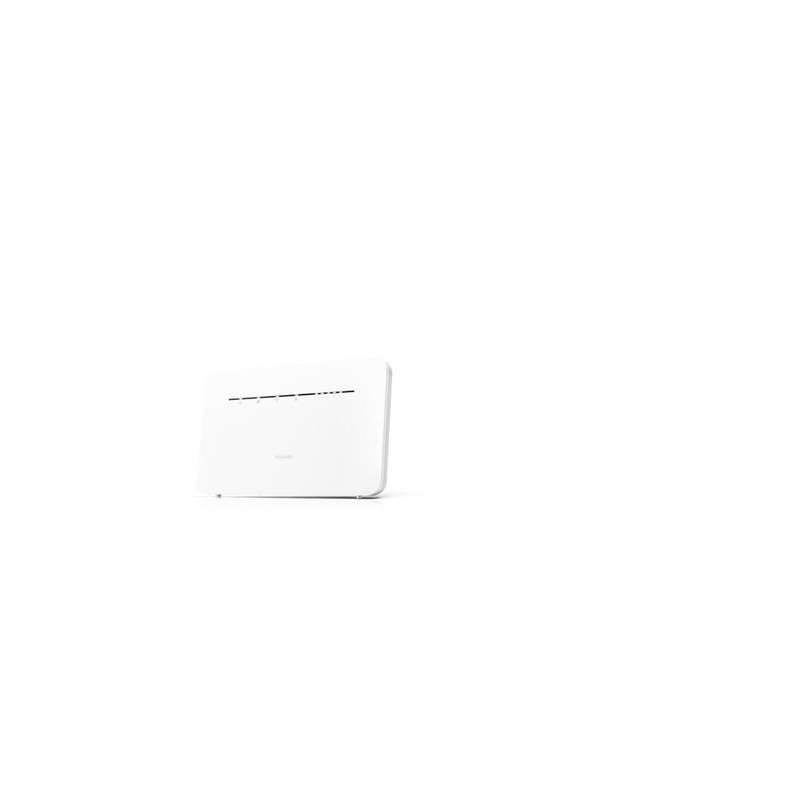

Huawei B535 4G/LTE Router

Colour

- White

5G/4G

Communication Standard: 3GPP Release 11, LTE CAT7
Applicable Network: 4G
4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
Antenna Type: LTE / UMTS main and diversity antennas

• Environments

  Temperature: Operating temperature: 0 C ~ 40 C, storage temperature: -20 C ~ +70 C
  Humidity: 5% ~ 95% (non-condensing)

• Wi-Fi

  Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
  Wireless Transmission Rate: DBDC, 1167Mbps
  Wireless Frequency Band: 2.4GHz & 5GHz, band steering
  Antenna Type: Dual-band Wi-Fi antenna

• Button

  Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS

• Power Supply

  Power: < 12 W
  AC / DC Power Supply: AC: 100 V - 240 V 50 Hz / 60 Hz, DC: 12V / 1A

• Led Indicator

  4G / Wi-Fi / Lan / Power / Signal Strength indicators

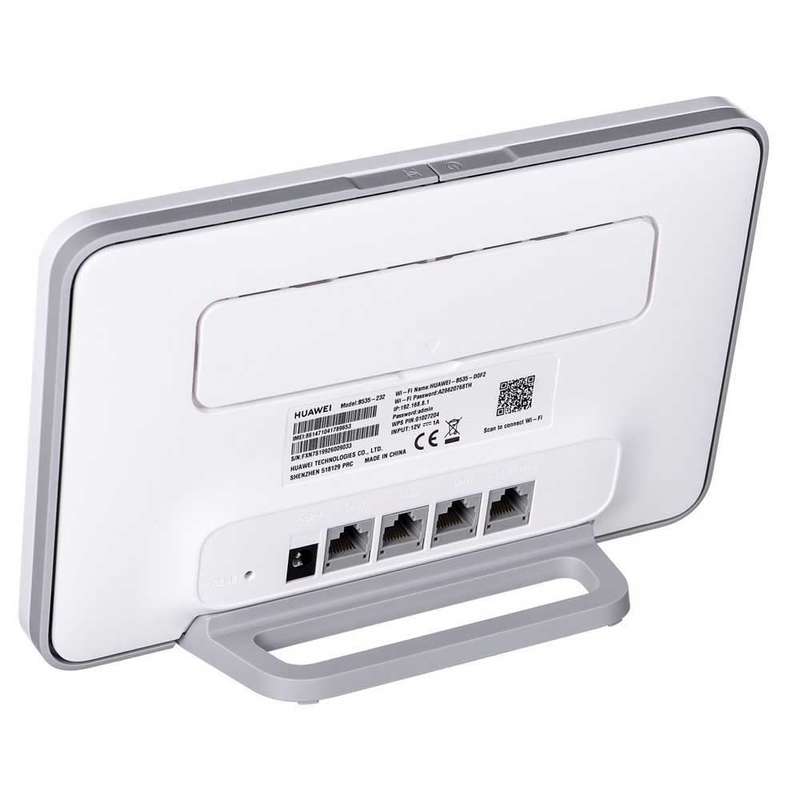

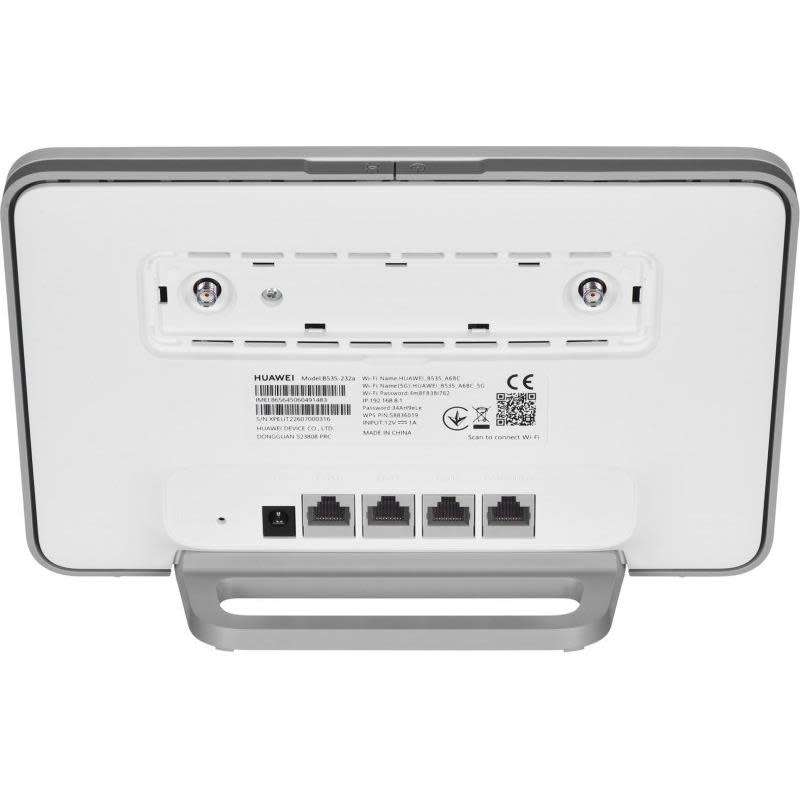

• Network Port

  1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)

• Processors

  Balong chip, Gigahome dual-band Wi-Fi chip

• Antenna

  Two 4G antenna extension ports, allowing users to purchase antennas
