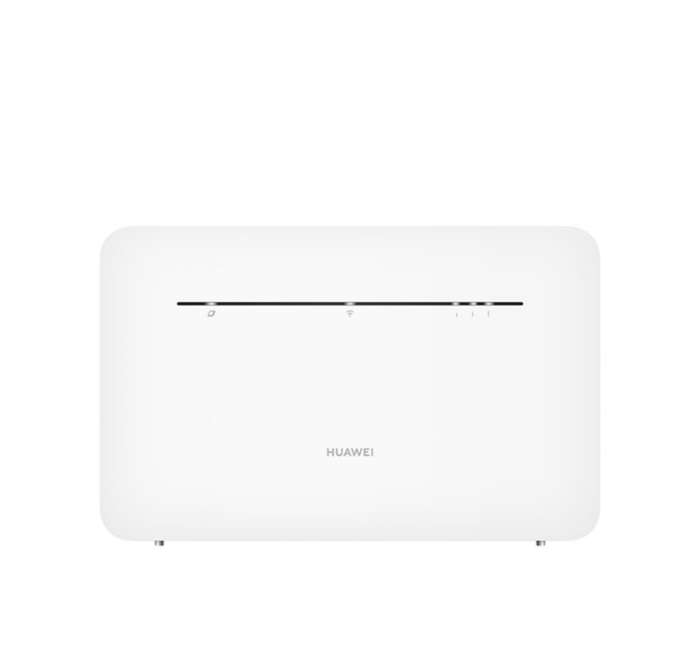

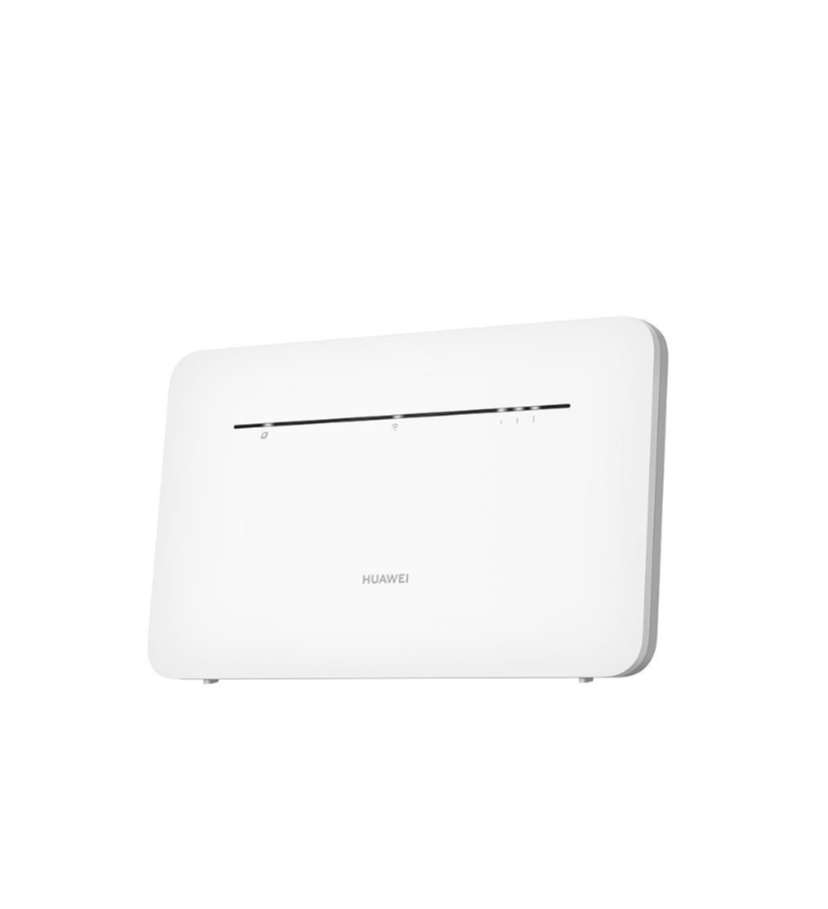

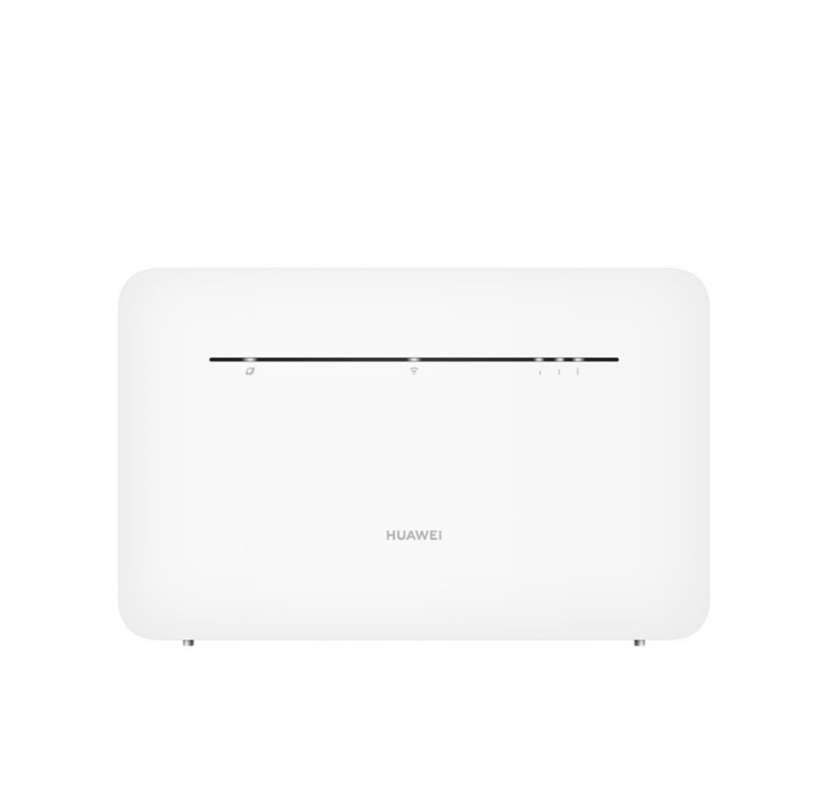

The HUAWEI LTE CPE B535-932a is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet.
Data service up to DL 300 Mbps and UL 100 Mbps
Working band: LTE: B1/B3/B8/B20/B28/B38/B40/B41, UMTS: B1/B8;
DL: CA3C/ CA38C/ CA40C/ CA41C/ CA38A-38A/ CA41A-41A/ CA1A-3A/ CA1A-8A/ CA1A-20A/ CA1A-
28A/ CA3A-8A(B8 only SCC)/ CA3A-20A/ CA3A-28A/CA3A-38A/ CA3A-41A/ CA8A-40A/ CA8A-41A/
CA28A-40A UL:CA3C/CA38C/CA40C/CA41C
Wi-Fi: 802.11 a/b/g/n/ac. 802.11b/g/n 2.4GHz Wi-Fi 2x2 MIMO up to 400Mbps,
802.11a/n/ac 5GHz Wi-Fi 2x2 MIMO up to 867Mbps. Maximum Users: 64
1 GE port for LAN/WAN, 3 GE ports for LAN
Multi APN function (Optional) for Data, Voice (VoIP), TR-069 services
Routing mode: NAT enable (Default) / IP pass-through (Optional)
VPN client service (L2TP, PPTP)
Customer management via WebUI or HUAWEI AI Life app
Operator maintenance via TR-069 (Optional) and TR-143 (Optional)
Huawei Firmware Over the Air (HOTA)
Hardware Specifications
Technical standard
WAN: 3GPP Release 11
LAN: IEEE 802.3/802.3u
Wi-Fi: IEEE 802.11a/b/g/n/ac
Working band/frequency
LTE: B1/B3/B8/B20/B28/B38/B40/B41
UMTS: B1/B8
Wi-Fi: 2.4 GHz: 2421~2483MHz, 5 GHz: 5170~5330MHz&5490~5710MHz

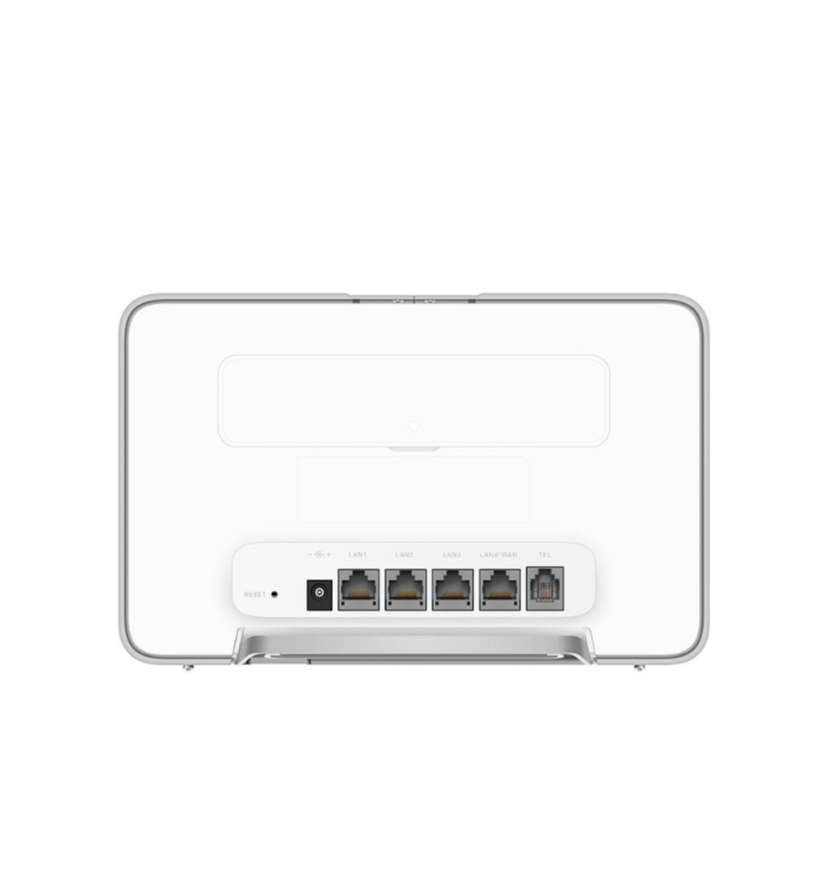

External port
One power adapter port
One LAN/WAN port (RJ45), three LAN ports (RJ45)
One phone port (RJ11)
Two external LTE antenna ports (SMA)
One SIM card slot (Nano-SIM)
Antennas
Built-in LTE/UMTS primary antenna
Built-in LTE/UMTS secondary antenna
Built-in Wi-Fi 2.4 GHz antenna
Built-in Wi-Fi 5.0 GHz antenna
Data Services
The B535-932a can access the Internet through mobile networks and Ethernet networks. By connecting to the B535-932a using Wi-Fi or a network cable, users can obtain access to high-speed Internet services and establish a local area network (LAN).
Accessing the Internet through a Mobile Network
The B535-932a can access the Internet through mobile networks.
Accessing the Internet through an Ethernet Network
The B535-932a's LAN/WAN port can be connected to a wall-mounted Ethernet port using a network cable.
Voice Services
The B535-932a provides one telephone port that can be connected to telephones for calling.
SMS
The B535-932a supports message writing/sending/receiving and group sending (up to 50 -contacts at a time).
Security Service
The B535-932a supports comprehensive and robust security services. It provides a firewall function and PIN protection mechanisms. These features allow users to connect their computers to the Internet and simultaneously protect their computers against security threats from the Internet.
Firewall Service
The B535-932a supports the enabling or disabling of a firewall on the network connection, which protects the device and network from attacks by hackers on the Internet and controls access to the Internet.
MAC Filtering
The B535-932a supports configuration of the Media Access Control (MAC) address to restrict network access.
Wi-Fi Authentication
The gateway supports the following user authentication protocols for Wi-Fi:
No encryption
WPA2-PSK (AES), WPA/WPA2-PSK (TKIP/AES).
5GHz Preferred
Priority usage of 5 GHz Wi-Fi band over 2.4 GHz band when signal strength is equal to increase connection speeds.
The product will support two SSIDs when 5 GHz preferred is enabled. The first SSID includes 2.4 GHz Wi-Fi and 5GHz Wi-Fi, which provides 5 GHz preferred capabilities. The second SSID ending with '5G' is an independent 5 GHz Wi-Fi. Customers can choose according to their needs. The product also supports two SSIDs when 5 GHz preferred is disabled. The first SSID is only 2.4 GHz Wi-Fi, the second SSID is 5 GHz Wi-Fi ending with '5G'. Customers can choose according to their needs.
HUAWEI AI Life app
Scan the QR code (can be found in the Quick Start Guide, giftbox and Web UI) to download the Huawei AI Life app and configure the router from your phone.
The B535-932a has the following constraints:
When the IP Pass-Through mode is enabled, the HOTA function cannot be used.
When the L2TP/PPTP VPN client function is enabled, the throughput performance will slow down.
A maximum of 64 devices can be connected to the Wi-Fi in theory; the actual number of devices that can be connected and served depends on actual conditions.

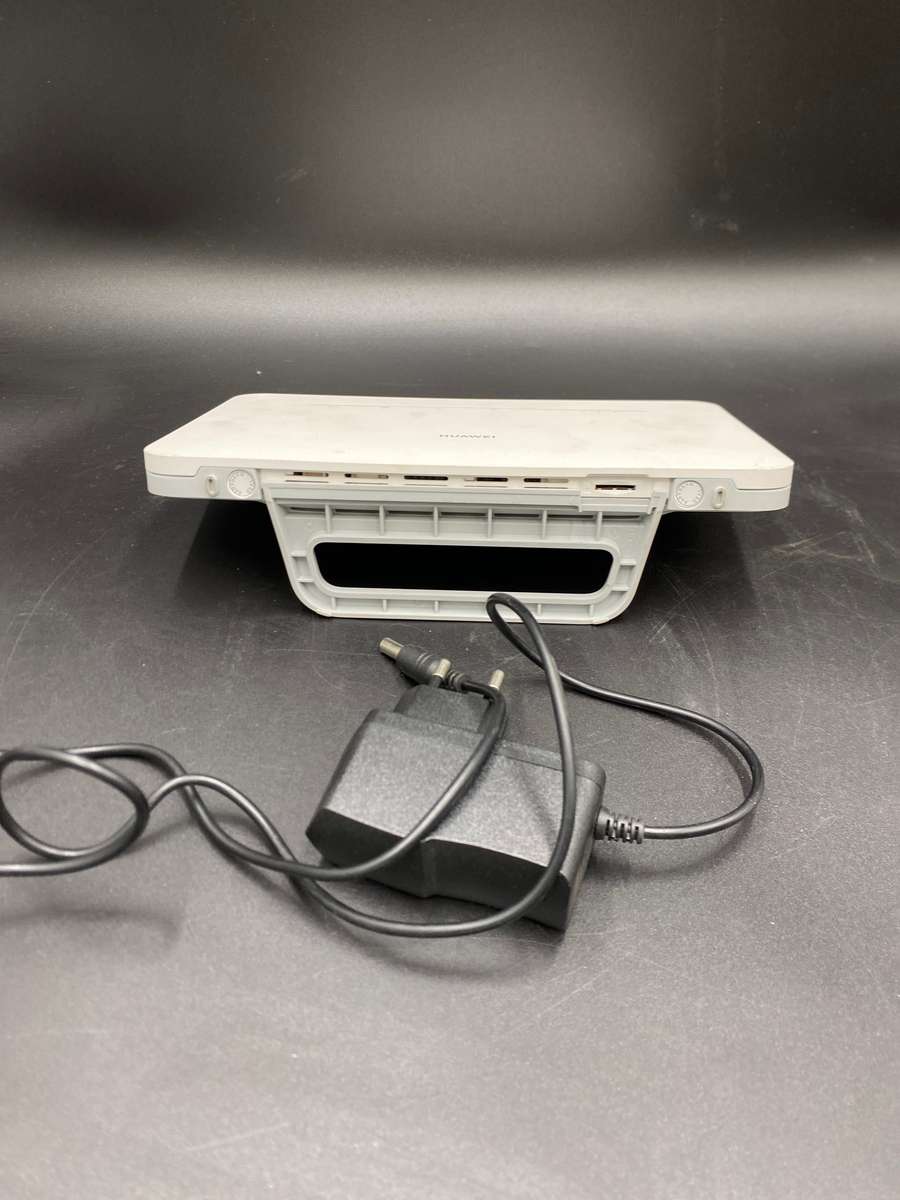

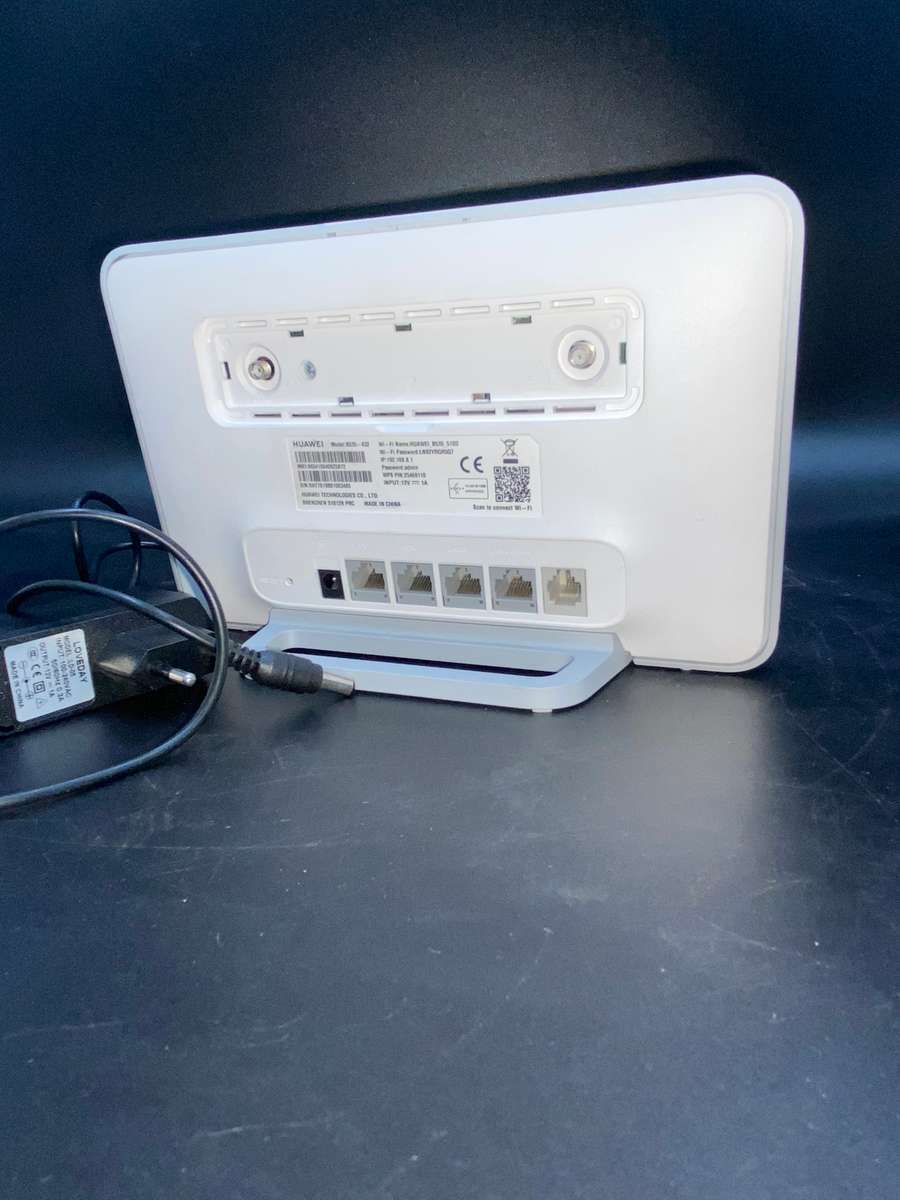

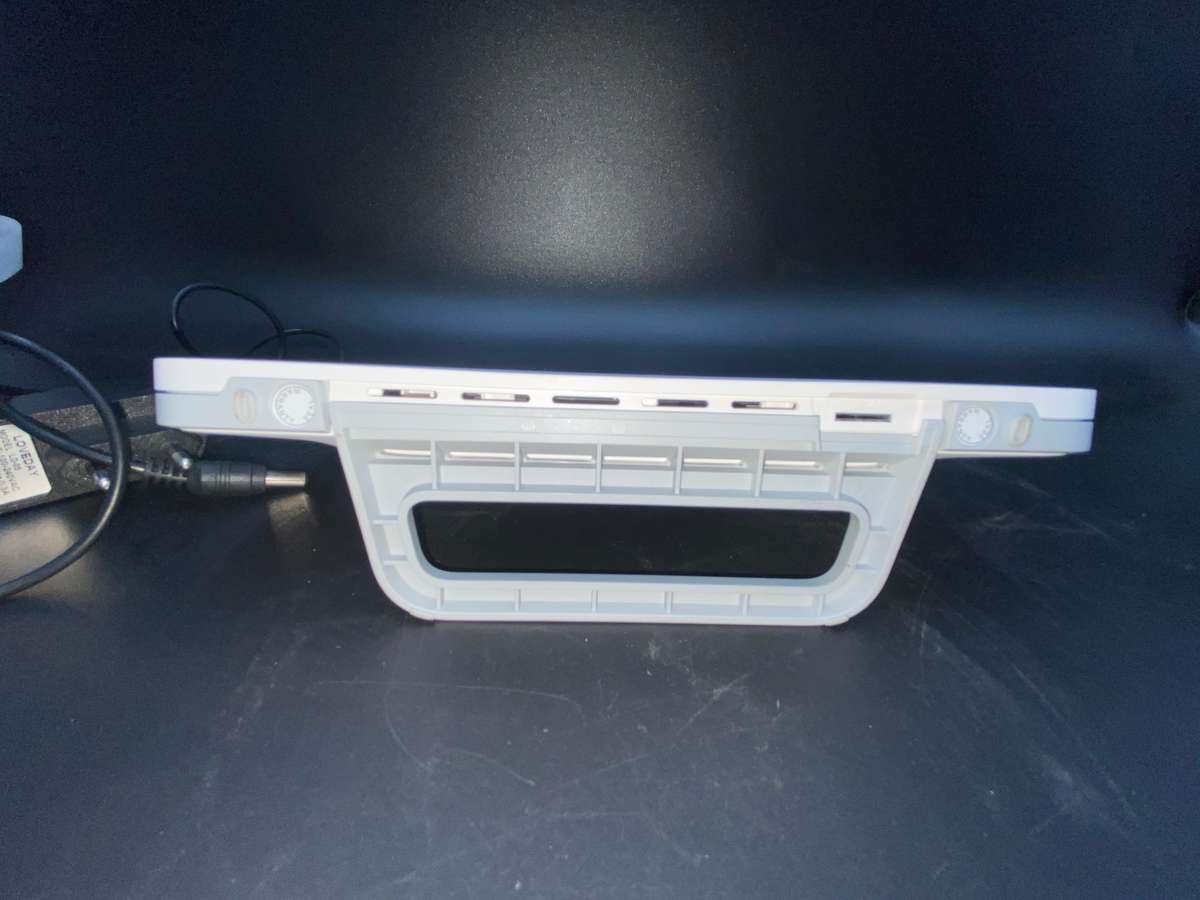

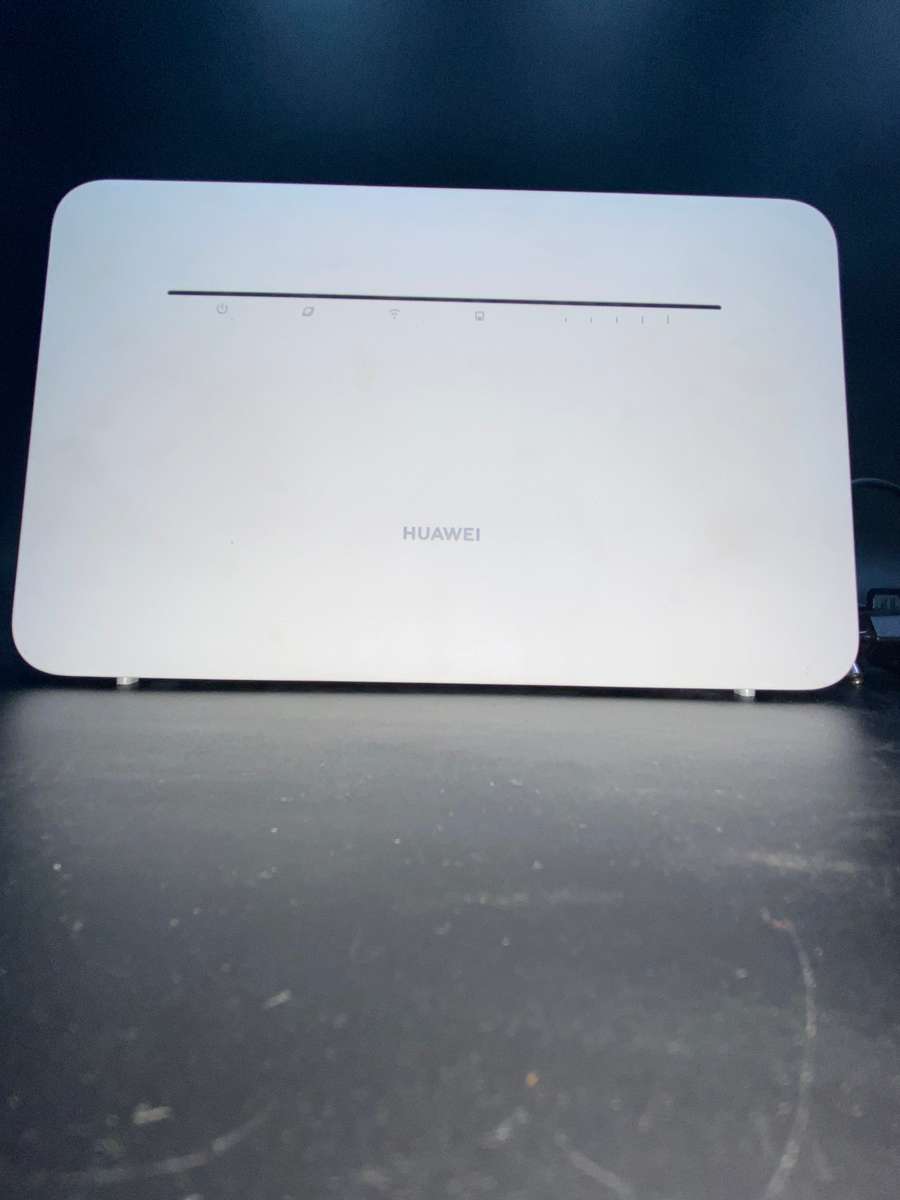

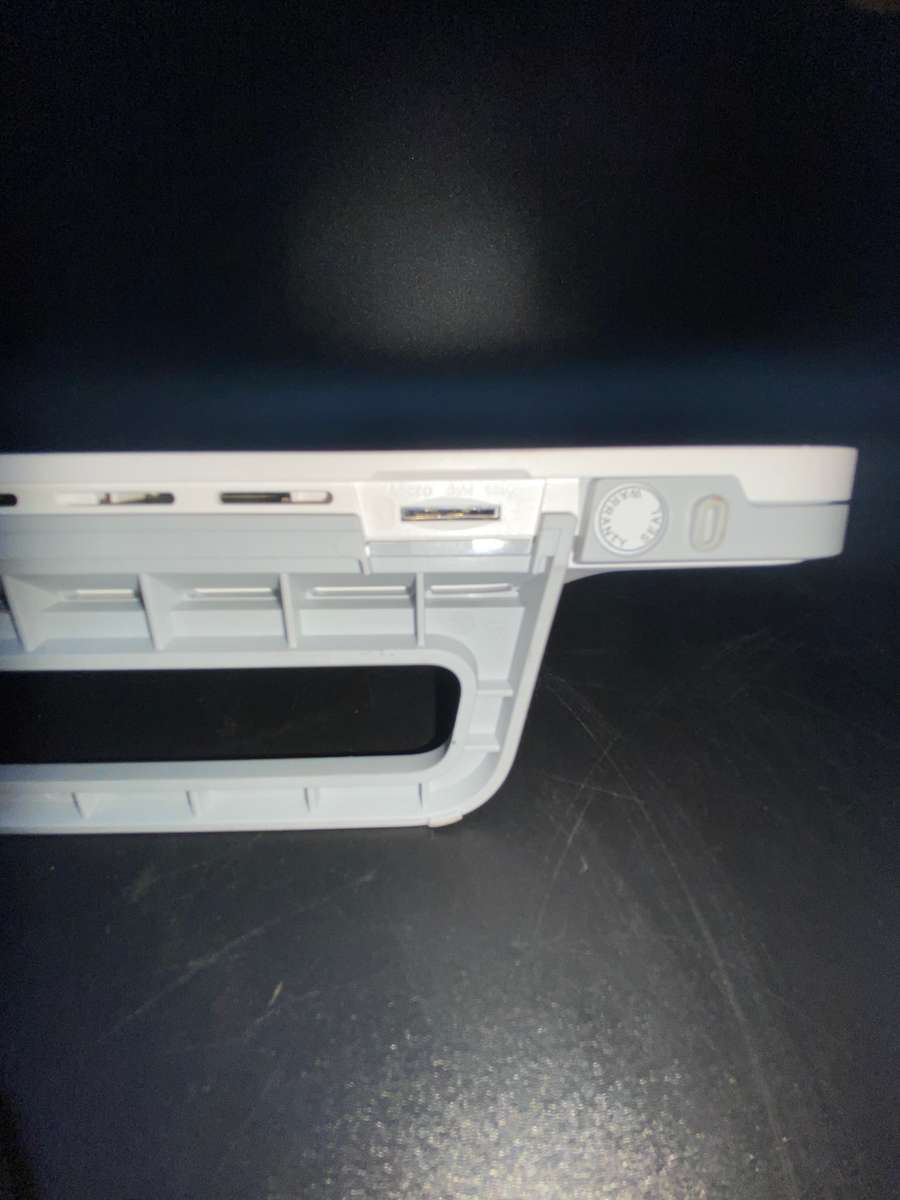

Original pictures are also attached, there is no back cover and no antennas.
