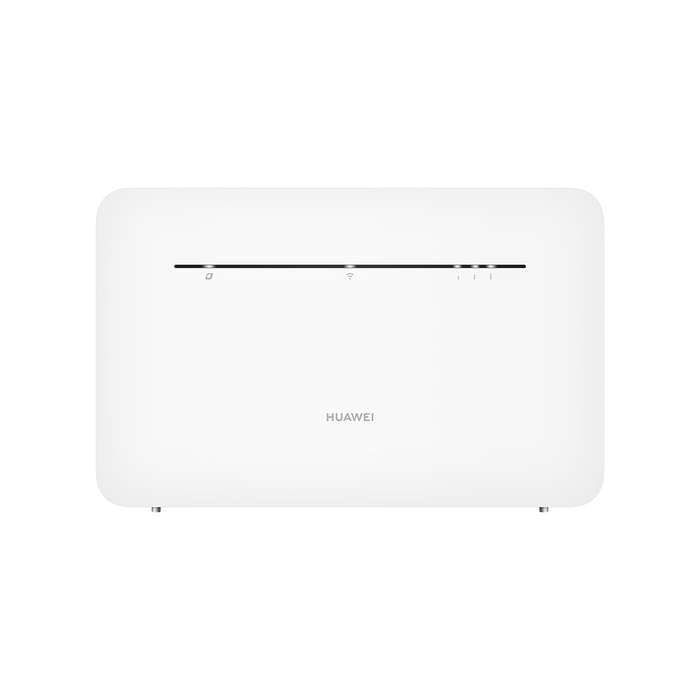

The HUAWEI LTE CPE B535-932a is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet.
The B535-932a supports 3GPP Release 11 with LTE CAT 7. The supported service functions are as follows:
Data service up to DL 300 Mbps and UL 100 Mbps
Working band: LTE: B1/B3/B8/B20/B28/B38/B40/B41, UMTS: B1/B8;
DL: CA3C/ CA38C/ CA40C/ CA41C/ CA38A-38A/ CA41A-41A/ CA1A-3A/ CA1A-8A/ CA1A-20A/ CA1A-
28A/ CA3A-8A(B8 only SCC)/ CA3A-20A/ CA3A-28A/CA3A-38A/ CA3A-41A/ CA8A-40A/ CA8A-41A/
CA28A-40A UL:CA3C/CA38C/CA40C/CA41C
Wi-Fi: 802.11 a/b/g/n/ac. 802.11b/g/n 2.4GHz Wi-Fi 2x2 MIMO up to 400Mbps,
802.11a/n/ac 5GHz Wi-Fi 2x2 MIMO up to 867Mbps. Maximum Users: 64
1 GE port for LAN/WAN, 3 GE ports for LAN
Multi APN function (Optional) for Data, Voice (VoIP), TR-069 services
Routing mode: NAT enable (Default) / IP pass-through (Optional)
VPN client service (L2TP, PPTP)
Customer management via WebUI or HUAWEI AI Life app
Operator maintenance via TR-069 (Optional) and TR-143 (Optional)
Huawei Firmware Over the Air (HOTA)
Hardware Specifications
Technical standard
WAN: 3GPP Release 11
LAN: IEEE 802.3/802.3u
Wi-Fi: IEEE 802.11a/b/g/n/ac
Working band/frequency
LTE: B1/B3/B8/B20/B28/B38/B40/B41
UMTS: B1/B8
Wi-Fi: 2.4 GHz: 2421~2483MHz, 5 GHz: 5170~5330MHz&5490~5710MHz
External port
One power adapter port
One LAN/WAN port (RJ45), three LAN ports (RJ45)
One phone port (RJ11)
Two external LTE antenna ports (SMA)
One SIM card slot (Nano-SIM)
Antennas
Built-in LTE/UMTS primary antenna
Built-in LTE/UMTS secondary antenna
Built-in Wi-Fi 2.4 GHz antenna
Built-in Wi-Fi 5.0 GHz antenna
Power consumption: < 12 W
AC/DC power supply: AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/1A
Dimensions (Maximum):
219 mm (Width) x 138 mm (High) x 25.6 mm (Deep)(not included the socket)
219 mm (Width) x 138 mm (High) x 60.66 mm (Deep)(included the socket)
Weight: < 330 g (excluding the power adapter)
Temperature
Working temperature: 0 C to 40 C
Storage temperature: -20 C to +70 C
Humidity: 5% - 95% (non-condensing)
Certification/Compliance: WEEE, CE, Wi-Fi, ROHS, REACH, GCF
Services and Applications
Data Services
The B535-932a can access the Internet through mobile networks and Ethernet networks. By connecting to the B535-932a using Wi-Fi or a network cable, users can obtain access to high-speed Internet services and establish a local area network (LAN).
Accessing the Internet through a Mobile Network
The B535-932a can access the Internet through mobile networks.
Accessing the Internet through an Ethernet Network
The B535-932a's LAN/WAN port can be connected to a wall-mounted Ethernet port using a network cable.
Voice Services
The B535-932a provides one telephone port that can be connected to telephones for calling.
SMS
The B535-932a supports message writing/sending/receiving and group sending (up to 50 -contacts at a time).
Security Service
The B535-932a supports comprehensive and robust security services. It provides a firewall function and PIN protection mechanisms. These features allow users to connect their computers to the Internet and simultaneously protect their computers against security threats from the Internet.
Firewall Service
The B535-932a supports the enabling or disabling of a firewall on the network connection, which protects the device and network from attacks by hackers on the Internet and controls access to the Internet.
MAC Filtering
The B535-932a supports configuration of the Media Access Control (MAC) address to restrict network access.
Wi-Fi Authentication
The gateway supports the following user authentication protocols for Wi-Fi:
No encryption
WPA2-PSK (AES), WPA/WPA2-PSK (TKIP/AES).
VPN Function
VPN Client
VPN tunneling involves establishing and maintaining a logical network connection (that may contain intermediate hops). On this connection, packets constructed in a specific VPN protocol format are first encapsulated within some other base or carrier protocol, then transmitted between the VPN client and server, and finally decapsulated on the receiving side.
VPN Pass-Through
The B535-932a supports L2TP/PPTP VPN pass-through for the LAN side device. The LAN side device can create a VPN tunnel to the VPN server.
IP Pass-Through
The LTE CPE obtains the WAN IP address and passes it through to the PC (Case 1) or Router (Case 2), and then the PC (Case 1) or Router (Case 2) can directly use the WAP IP address.
IPv6 Only and IPv4v6 Dual Stack
IPv4v6 Dual Stack
CPE provides dual stack function.
IPv6 Only (CLAT)
The LTE CPE supports IPv6 only with the transition solution CLAT for IPv4 device.
Note: When the IPv6 only (CLAT) function is enabled, NAT-based functions (like DMZ/Port Forwarding/Port tigger) cannot be used. When an IPv4 device accesses the Internet, the performance is degraded because packets need to be packetized and unpacked. However, IPv6 devices are not affected.
Multi-APN
The B535-932a supports the establishment and maintenance of three APNs. These three APN connections isolate data, voice, and remote management services on an operator's network. The B535-932a supports an independent APN for CPE internal/VoIP/TR-069.
5GHz Preferred
Priority usage of 5 GHz Wi-Fi band over 2.4 GHz band when signal strength is equal to increase connection speeds.
The product will support two SSIDs when 5 GHz preferred is enabled. The first SSID includes 2.4 GHz Wi-Fi and 5GHz Wi-Fi, which provides 5 GHz preferred capabilities. The second SSID ending with '5G' is an independent 5 GHz Wi-Fi. Customers can choose according to their needs. The product also supports two SSIDs when 5 GHz preferred is disabled. The first SSID is only 2.4 GHz Wi-Fi, the second SSID is 5 GHz Wi-Fi ending with '5G'. Customers can choose according to their needs.
HiLink
Supports up to 5 HiLink devices to connect to B535-932a through the H button to create an expanded network.
Supports quick connection between a HiLink device and B535-932a through the H button.
Customer management
WebUI
The B535-932a supports local configuration through the Web UI. You can perform device management and network configuration to ensure normal and stable performance.
HUAWEI AI Life app
Scan the QR code (can be found in the Quick Start Guide, giftbox and Web UI) to download the Huawei AI Life app and configure the router from your phone.
Operator maintenance
The B535-932a supports Operator maintenance through the TR-069. Operator remote manages the CPE software update/parameters configuration via TR-069.
HOTA
The B535-932a supports the HOTA feature, which allows users to remotely update the device firmware through the HOTA server.
Scenario Constraints
The B535-932a is a household wireless broadband access product designed for use in scenarios with relatively few network acc...
