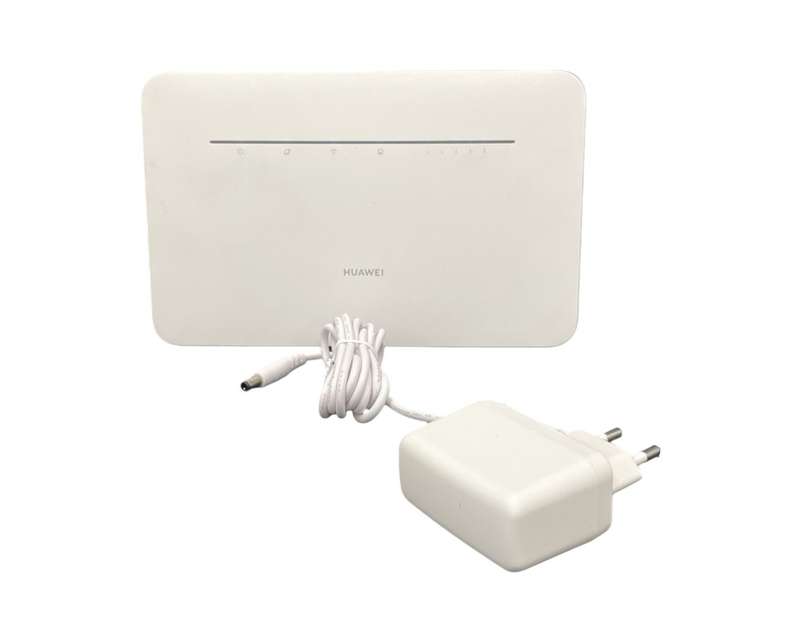

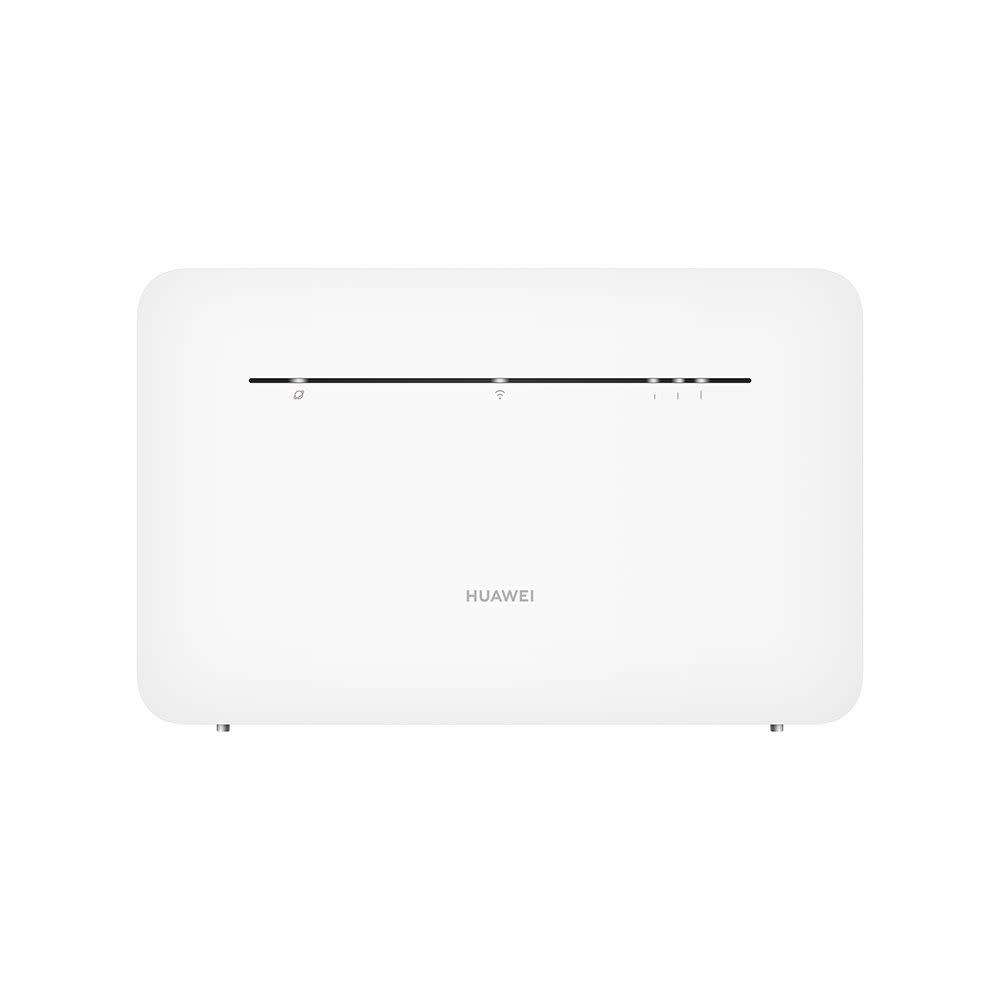

The HUAWEI LTE CPE B535-932a is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet.
The B535-932a supports 3GPP Release 11 with LTE CAT 7. The supported service functions are as follows:
Data service up to DL 300 Mbps and UL 100 Mbps
Working band: LTE: B1/B3/B8/B20/B28/B38/B40/B41, UMTS: B1/B8;
DL: CA3C/ CA38C/ CA40C/ CA41C/ CA38A-38A/ CA41A-41A/ CA1A-3A/ CA1A-8A/ CA1A-20A/ CA1A-
28A/ CA3A-8A(B8 only SCC)/ CA3A-20A/ CA3A-28A/CA3A-38A/ CA3A-41A/ CA8A-40A/ CA8A-41A/
CA28A-40A UL:CA3C/CA38C/CA40C/CA41C
Wi-Fi: 802.11 a/b/g/n/ac. 802.11b/g/n 2.4GHz Wi-Fi 2x2 MIMO up to 400Mbps,
802.11a/n/ac 5GHz Wi-Fi 2x2 MIMO up to 867Mbps. Maximum Users: 64

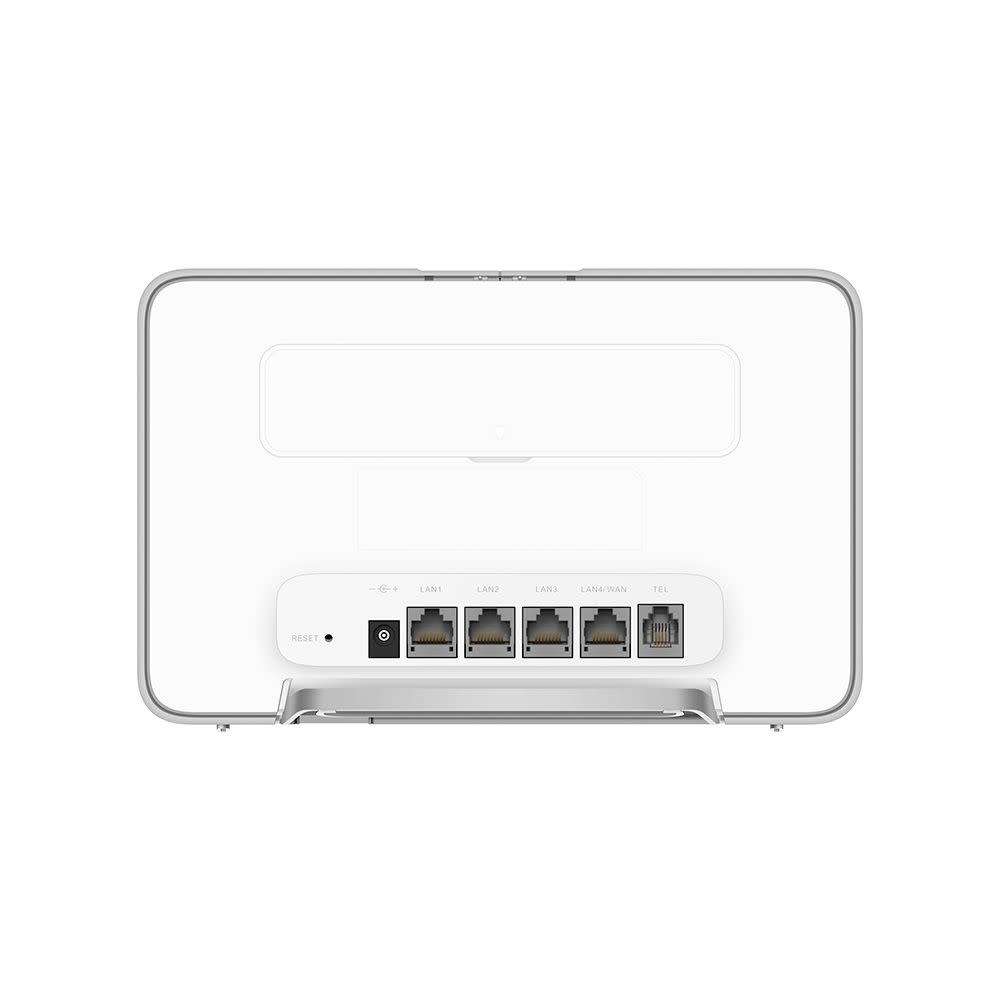

1 GE port for LAN/WAN, 3 GE ports for LAN
Multi APN function (Optional) for Data, Voice (VoIP), TR-069 services
Routing mode: NAT enable (Default) / IP pass-through (Optional)
VPN client service (L2TP, PPTP)
Customer management via WebUI or HUAWEI AI Life app
Operator maintenance via TR-069 (Optional) and TR-143 (Optional)
Huawei Firmware Over the Air (HOTA)
