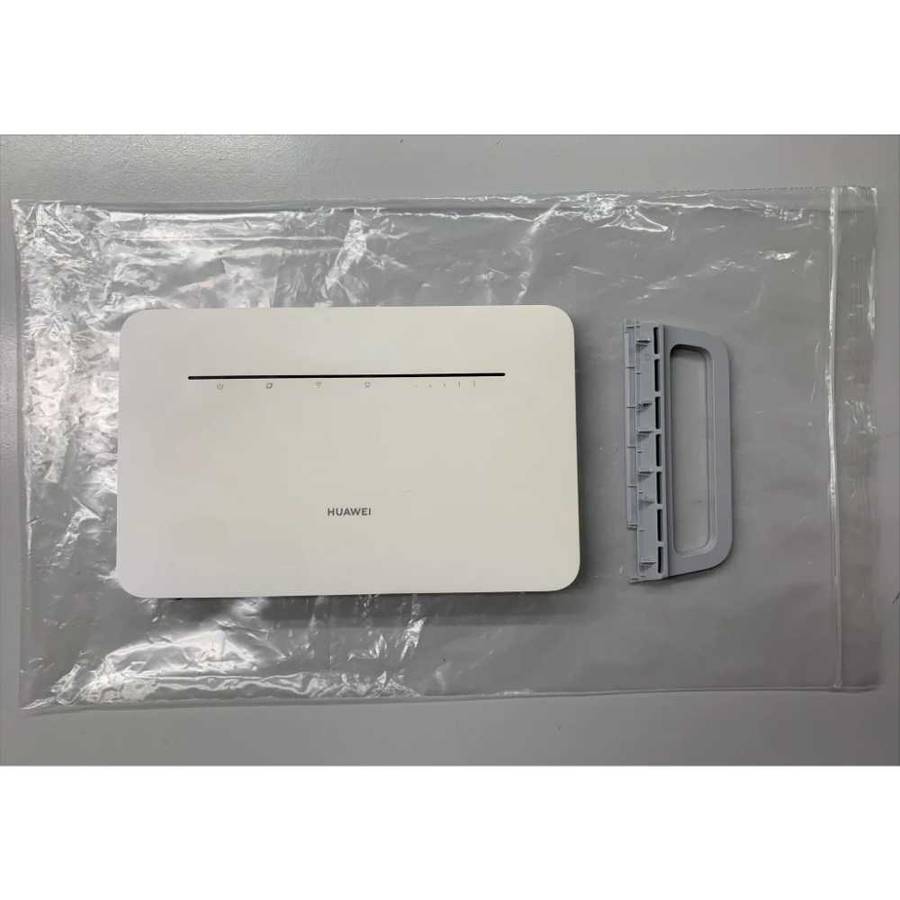

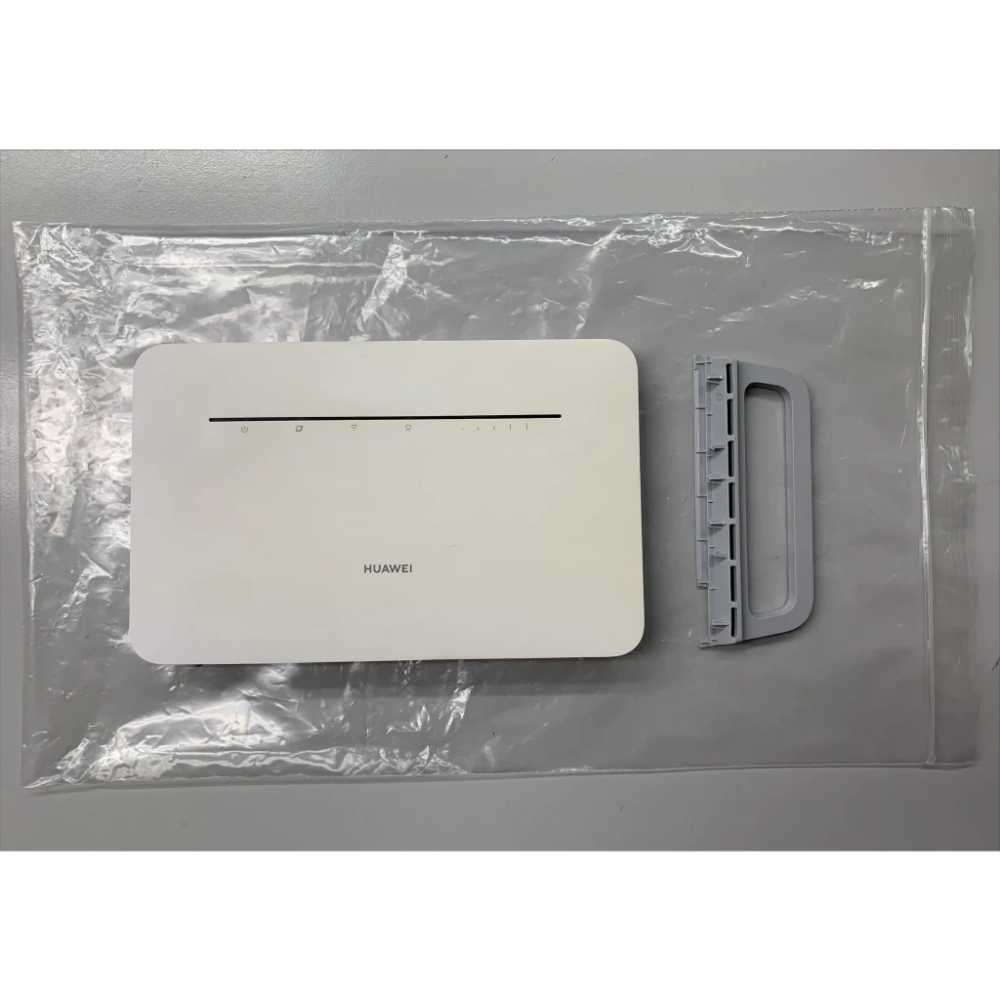

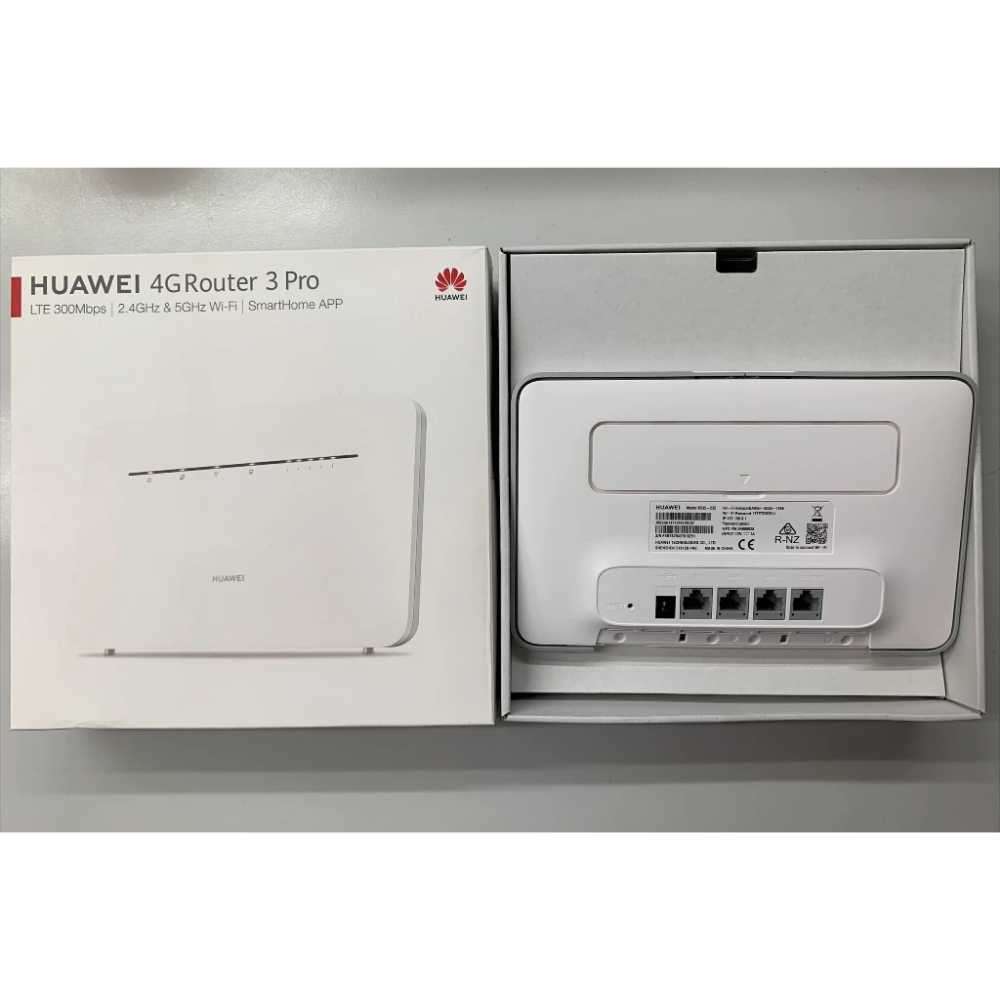

Huawei B535 WiFi Routers

Colour

White

5G/4G

Communication Standard: 3GPP Release 11, LTE CAT7

Applicable Network: 4G

4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)

Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8

Antenna Type: LTE / UMTS main and diversity antennas

Environments

Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C

Humidity: 5% ~ 95% (non-condensing)

Wi-Fi

Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO

Wireless Transmission Rate: DBDC, 1167Mbps

Wireless Frequency Band: 2.4GHz & 5GHz, band steering

Antenna Type: Dual-band Wi-Fi antenna

Button

Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS

Power Supply

Power: < 12 W

AC / DC Power Supply: AC: 100 V - 240 V 50 Hz / 60 Hz, DC: 12V / 1A

Led Indicator

4G / Wi-Fi / Lan / Power / Signal Strength indicators

Network Port

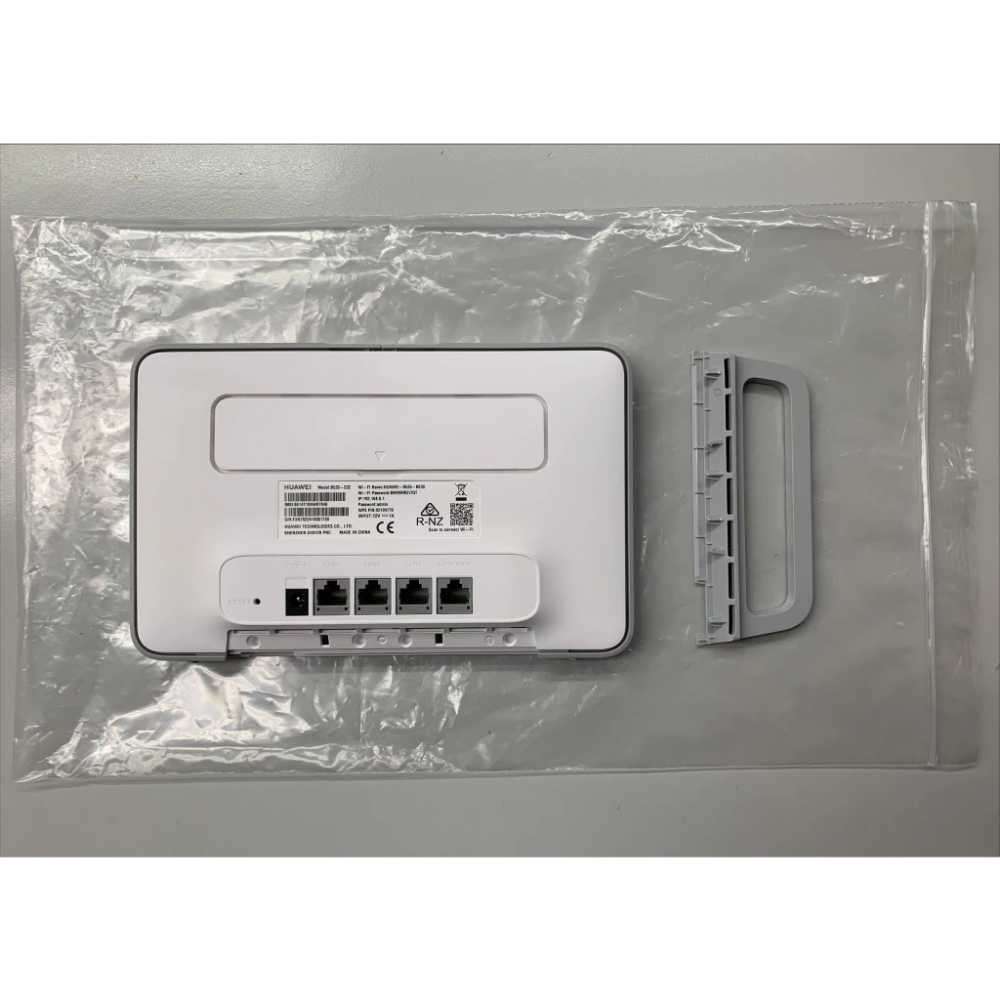

1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)

Processors

Balong chip, Gigahome dual-band Wi-Fi chip

Antenna

Two 4G antenna extension ports, allowing users to purchase antennas

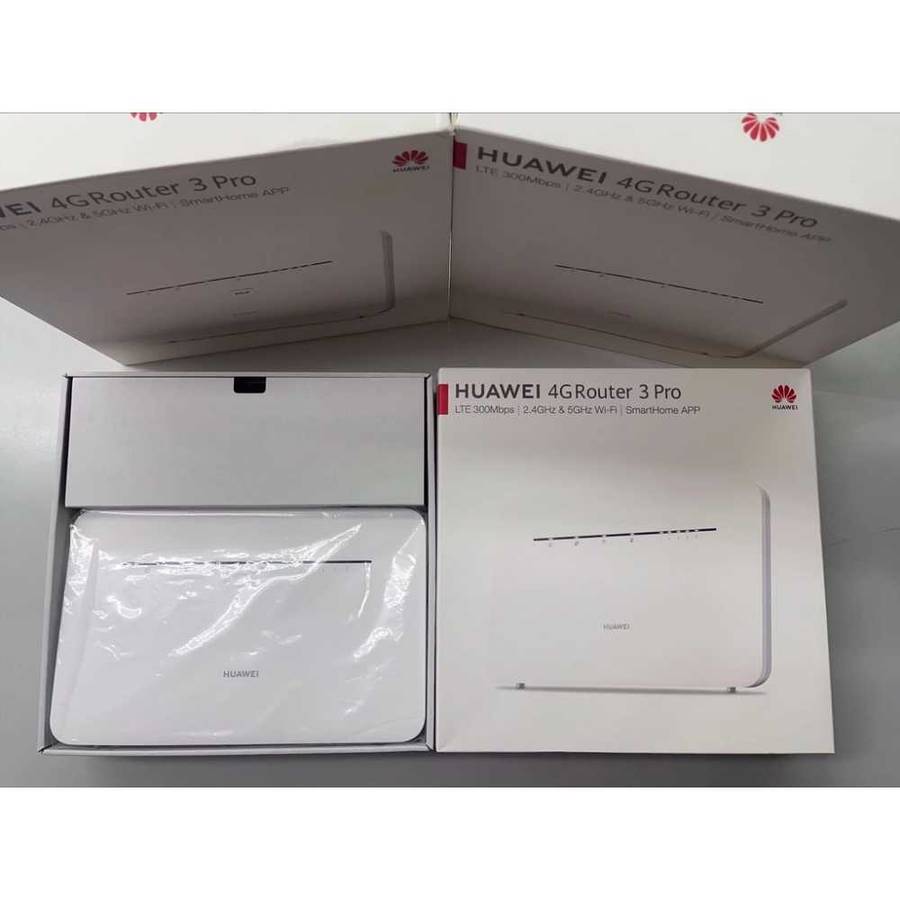

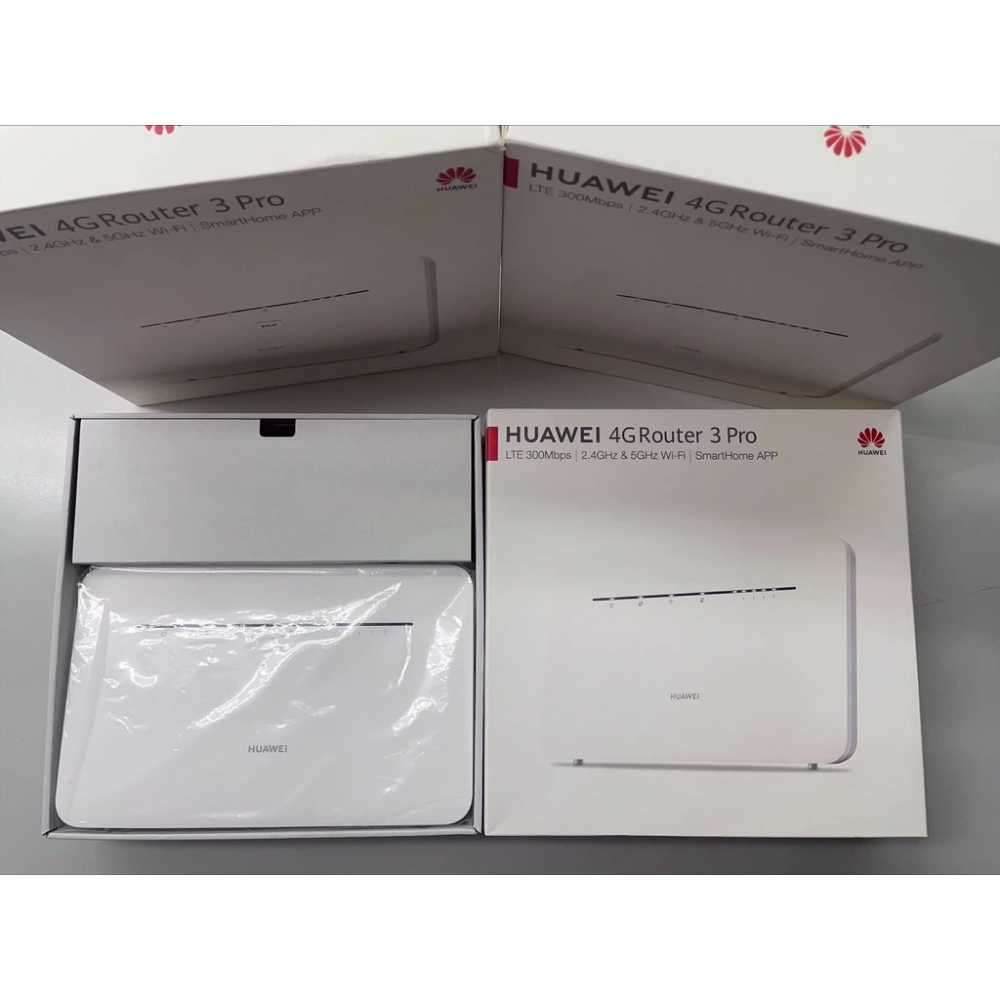

PACKING LIST

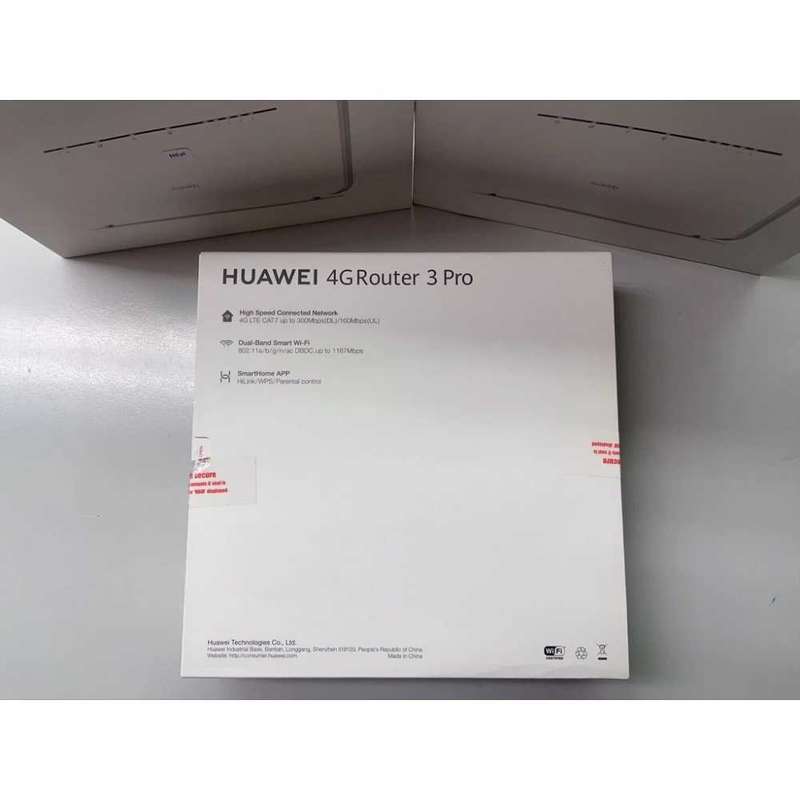

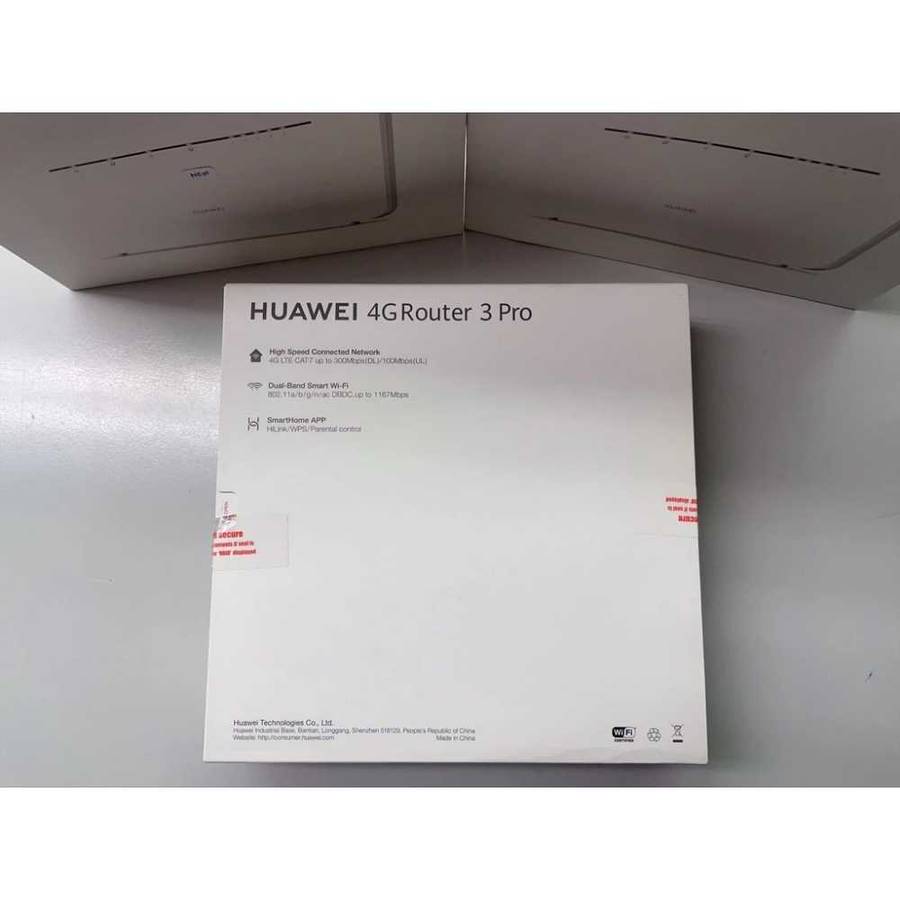

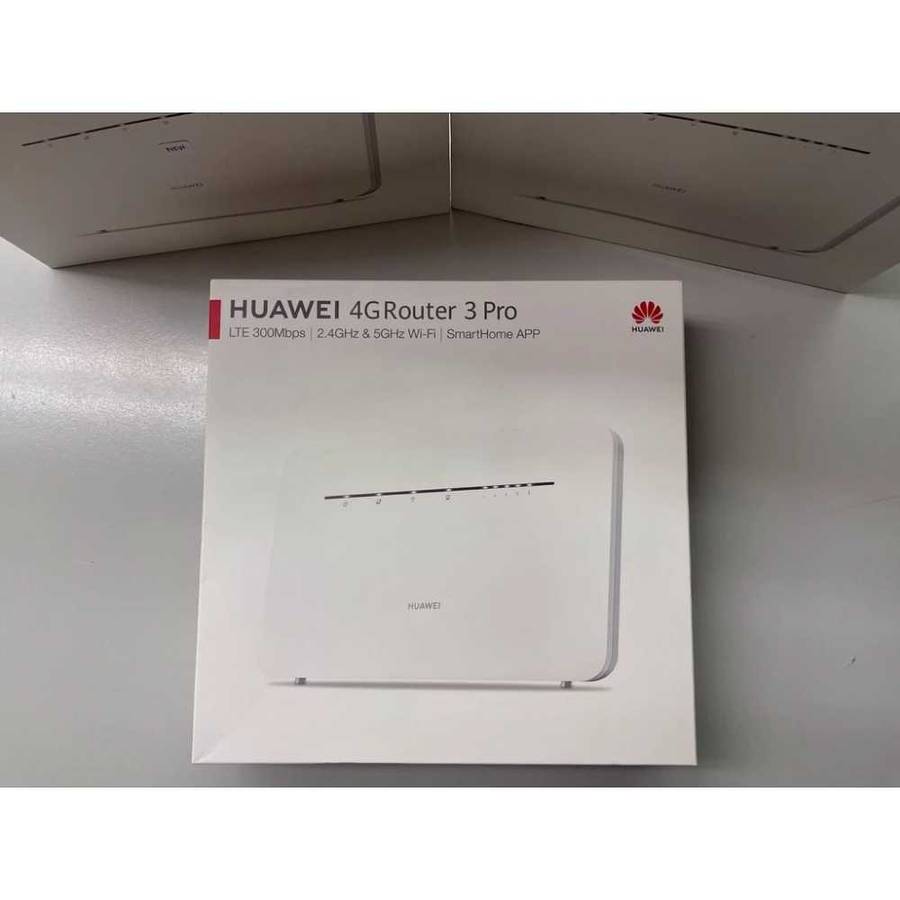

HUAWEI 4G Router 3 Pro: 1 (standard configuration)

Power Adapter: 1 (standard configuration)

Socket: 1 (standard configuration)

Quick Start: 1 (standard configuration)

Ethernet Cable: 1 (optional)
