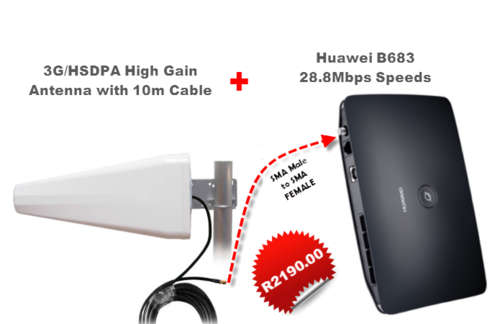

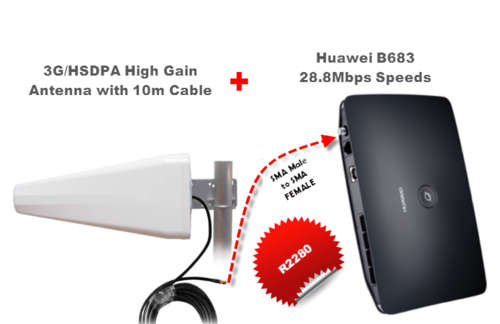

Get the perfect combo to boost your 3G/HSDPA Signal for a fast browsing experience. The Huawei B683 and the 3G High Gain Combo are the perfect solution for Home to Medium Office solution where you need to share high internet speeds with a good browsing experience. The two connect to each other perfectly over the SMA-Male to SMA-Female Interface.
About the Huawei B683 28.8Mbps Router:
The Huawei B683 is the new UMTS Router Huawei and supports HSPA + technology. This makes the B683 is capable of download speeds of up to 21 Mbps to achieve an upload of 5.76 Mbps. Of course the router is backwards compatible with 2G, EDGE and GPRS. The B683 supports Huwei so wired and wireless network access and provides data routing service. The Huawei B683 is unlocked and equipped with four LAN ports and a USB port for connecting a hard drive or a printer, which can then be used by multiple people. Naturally, the B683 also has a wireless interface. Huawei has developed the latest 802.11 b / g / n standard, so the speed HSPA + wireless connection can be fully exploited. At the front are various LED indicators on the back and see one finds an external (SMA) antenna connector.
The Huawei B663-V is equipped with a Standard Phone Port (RJ11).
The B683 3G Router supports the following standards:
- HSUPA (High Speed Uplink Packet Access)
- HSDPA (High Speed Downlink Packet Access)
- WCDMA (Wideband Code Division Multiple Access)
- GSM (Global System for Mobile Communications)
- GPRS(General Packet Radio Service)
- EDGE (Enhanced Date Rates for Global Evolution)
Specifications:
- Huawei Wireless 21 mbps 3G Router
- 4 x 10/100 Ports
- 1 x Standard Phone Port (RJ11)
- SIM is physically inserted into the device
- SMA connector for external antenna
- Connect up to 32 WiFi enabled devices
About the 3G/HSDPA High Gain Antenna:
This is a 3G/GSM directional Antenna with a 10 meter SMA Male cable. It is sealed with a radome and is supplied with a tilt-down bracket.
Connect Antenna
(A) Directly to 3G routers with SMA female connector eg Huawei B660, Huawei B970b etc
(B) To 3G modem pigtails for modems that come with an external antenna slot
(C) To the universal modem couplers for modems without an external antenna slot
Specifications
- Frequency Range MHz: 800-960 1710-2500
- Beam-width-º E: 55 / 50
- Beam-width-º H: 75±12 / 65±12
- F/B Ratio-dB: ≥16 ≥18
- Gain-dBi 9.5±1 10±1
- VSWR ≤1.5
- Impedance-Ω: 50
- Polarisation: Vertical
- Maximum Power-W: 50
- Connector: SMA Male
- Dimensions-mm: 442 x 205 x 37
- Weight-Kg: 1
- Mast Diameter-mm: φ40-φ50
