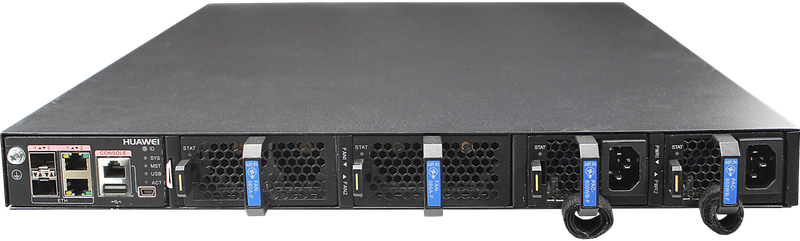

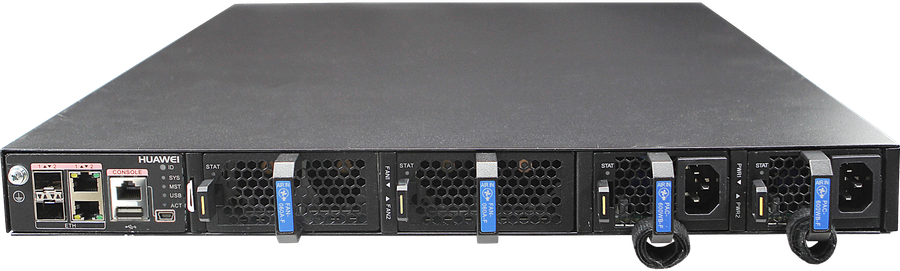

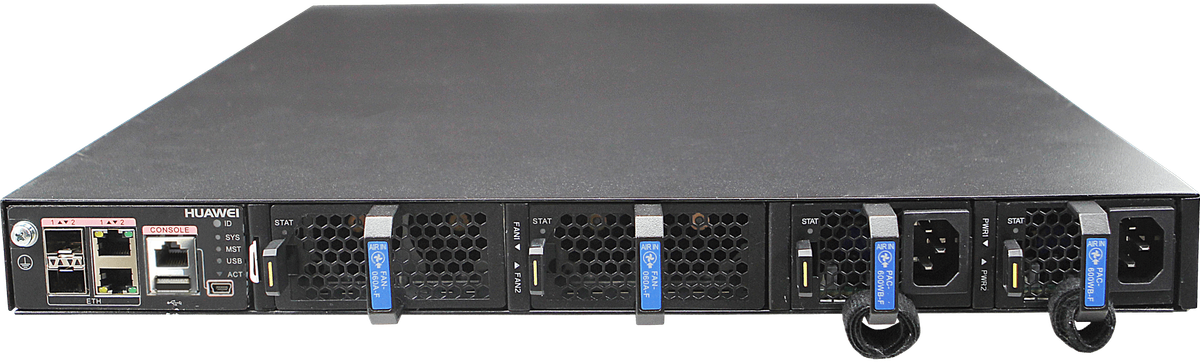

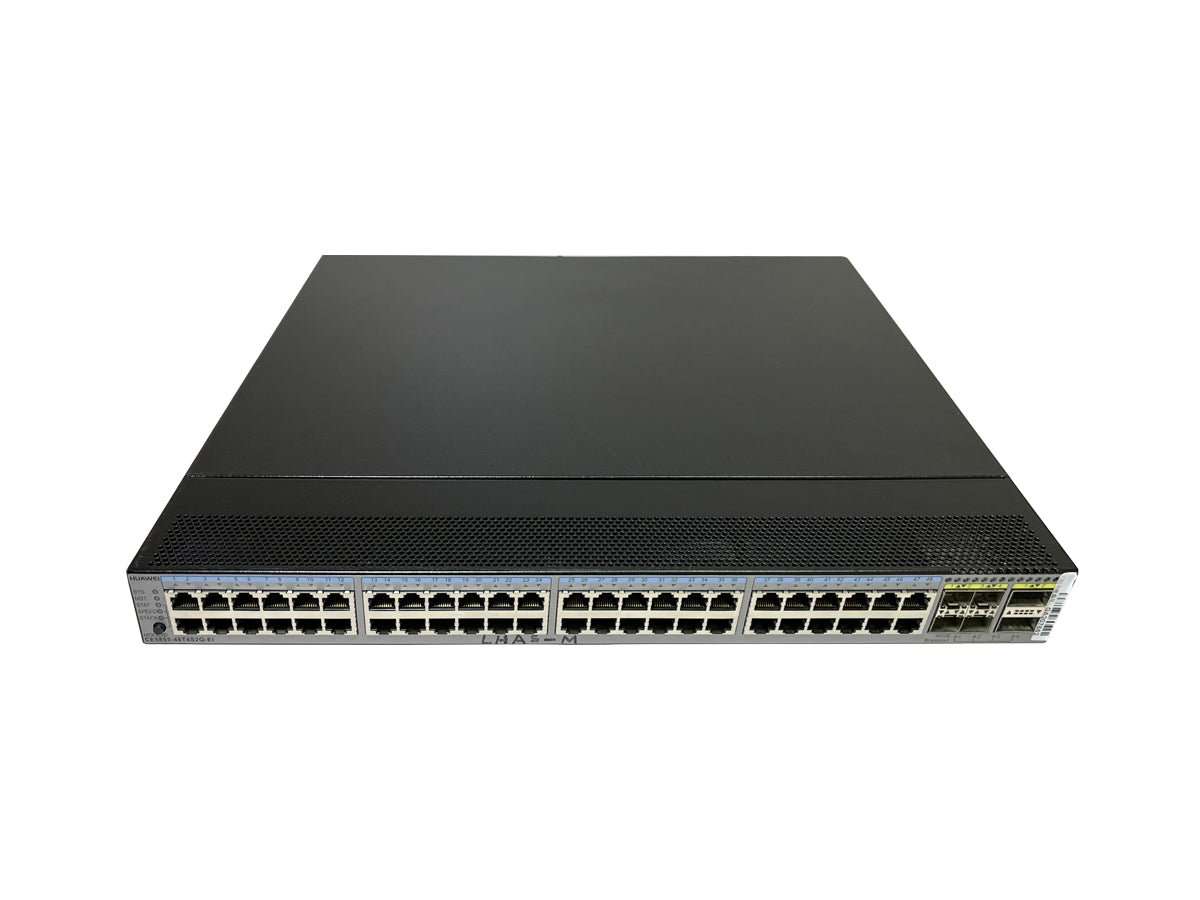

The Huawei CE5855-48T4S2Q-EI is a high-performance Layer 3 switch designed for data center and campus aggregation applications. Featuring 48 × Gigabit Ethernet RJ45 ports, 4 × 10GbE SFP+ uplinks, and 2 × 40GbE QSFP+ ports, it provides a non-blocking switching capacity of 336 Gbps and forwarding performance up to 252 Mpps.
With advanced features such as iStack, M-LAG, TRILL, NetStream, sFlow, and flexible QoS and security controls, this switch is ideal for enterprises seeking agile network virtualization, high availability, and software-defined networking integration.
Key Features & Benefits
48 × 10/100/1000Base-T RJ45 ports for high-density Gigabit access
4 × 10Gb SFP+ uplinks and 2 × 40Gb QSFP+ ports for high-speed backbone connectivity
Switching capacity of 336 Gbps and forwarding rate of 252 Mpps
Supports iStack, Super Virtual Fabric (SVF), TRILL, and M-LAG virtualization technologies
Extensive Layer 3 routing support including RIP, OSPF, BGP, and IS-IS
Advanced multicast, QoS, ACLs, and enterprise-grade security features
Ideal Uses
Enterprise data center top-of-rack or core switch deployments
Aggregation layer switch for campus networks requiring high bandwidth
High-performance virtualized environments needing L3 scalability and automation
Industrial or service provider applications requiring multicast, QoS, and secure segmentation
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: CE5855-48T4S2Q-EI
Device Type: Layer 3 Managed Switch
Ports:
48 × 10/100/1000Base-T RJ45
4 × 10Gb SFP+ (Mini-GBIC)
2 × 40Gb QSFP+
Console Port: RJ45-RS232 serial port
Switching Capacity: 336 Gbps
Forwarding Rate: 252 Mpps
MAC Address Table: 64K entries
Packet Buffer: 12 Mbit
ARP Table Size: 54K
IPv4 FIB: 32K routes
Multicast FIB: 2K
QoS: 8 queue levels, WRR, PQ, DRR, WRED, shaping, ACL-based control
VLAN: Access/Trunk/Hybrid, QinQ, GVRP, Private VLAN
Security: 802.1X, sticky MAC, DoS/ARP/ICMP attack defense, AAA, RADIUS, port security
Management: Web, Telnet, SSH, SNMP v1/v2/v3, LLDP, FTP, TFTP, NTP, ZTP
Virtualization Support: iStack, SVF, M-LAG, TRILL
Monitoring: NetStream, sFlow, RMON
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Humidity (Operating): 5%95% non-condensing
Operating Voltage: AC 90264V or DC -38.4V to -72V
Max Power Consumption: 103W
Dimensions (W × D × H): 442 × 420 × 43.6 mm
Weight: 8.4 kg
Certifications: CE, FCC, RoHS
Warranty: 3 Month Carry-in Warranty
What's in the Box: Huawei CE5855-48T4S2Q-EI Switch
