Brand New & Sealed with Manufacturer Warranty

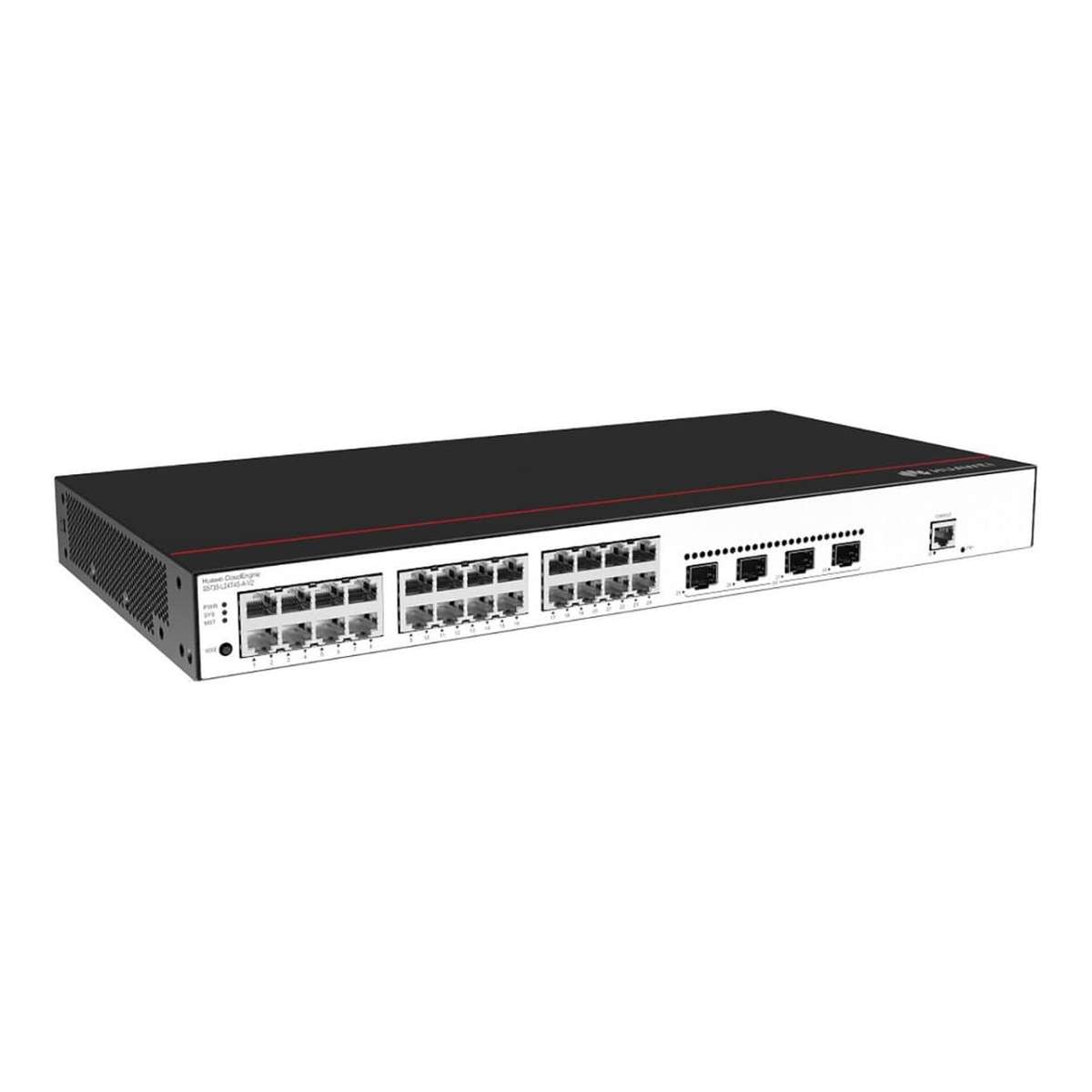

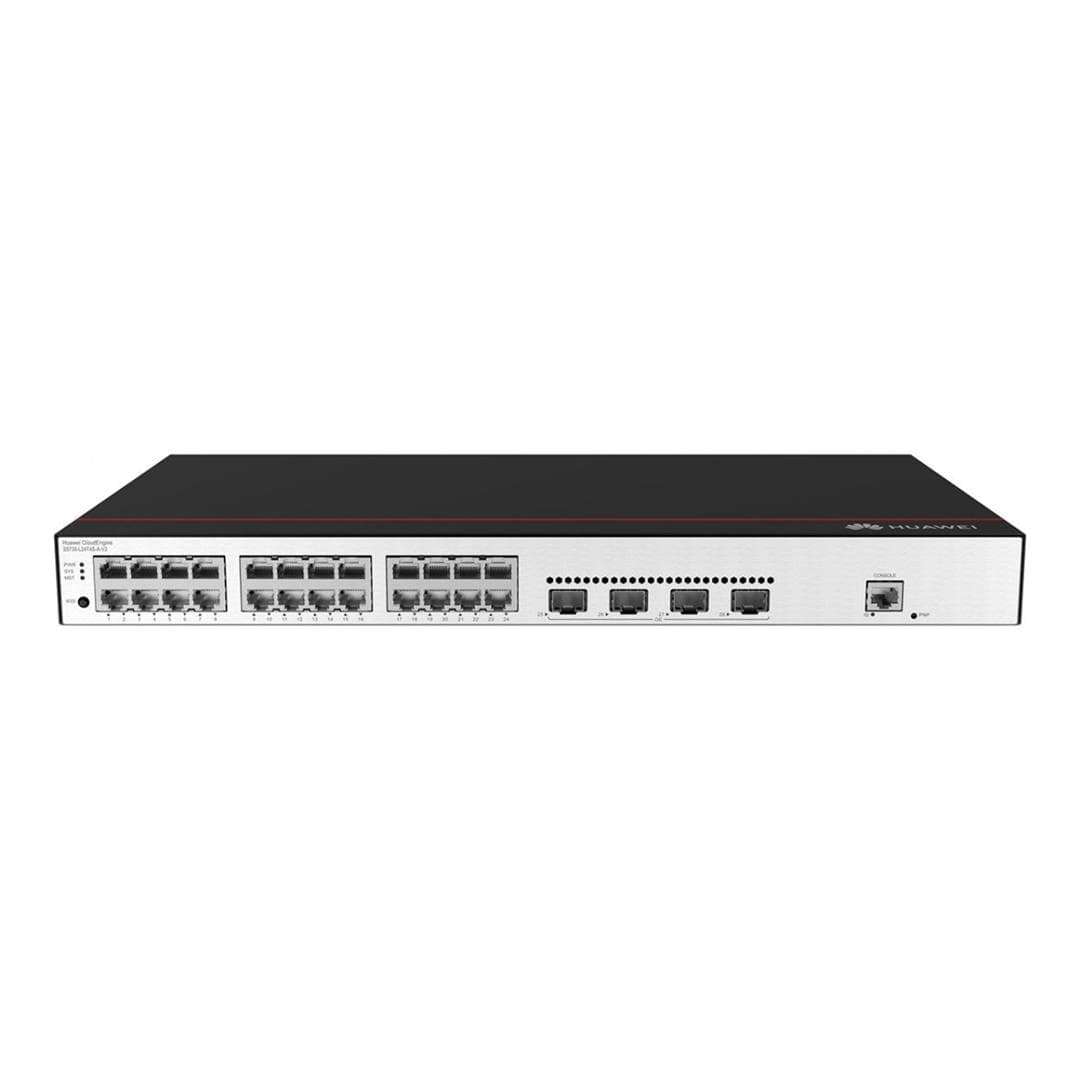

Huawei CloudEngine S5735-L24T4S-A-V2 24-Port Switch 98012004
Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M.
These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities, making them ideal for various industries, such as healthcare, retail, mining, and Internet.
Technical Specifications:
Ports & Interfaces
Ethernet Ports
Performance & Hardware
Switch Type
Layer 2 Ethernet Switch
Memory
2 GB
Flash Memory
1 GB
PoE Support
Not Supported
Power
Power Supply Type
Built-In AC Power Module
Rated Input Voltage
100—240 V AC, 50/60 Hz
Input Voltage Range
90—264 V AC, 45—65 Hz
Maximum Input Current
0.8 A
Typical Power Consumption
26.37 W
Maximum Power Consumption
34.04 W
Cooling
Cooling System
Built-In Fan With Intelligent Speed Adjustment
Airflow Direction
Left And Front Intake, Right Exhaust
Environmental
Operating Temperature
-5°C To 50°C
Storage Temperature
-40°C To 70°C
Operating Humidity
5% To 95% RH (Non-Condensing)
Maximum Operating Altitude
0—5000 m
Ingress Protection Rating
IP20
Physical Specifications
Form Factor
1U Rack-Mount
Chassis Material
Metal
Dimensions (H × W × D)
43.6 × 442 × 220 mm
Maximum Depth
227 mm
Package Dimensions (H × W × D)
90 × 550 × 360 mm
Weight (Without Packaging)
2.32 kg
Weight (With Packaging)
3.44 kg
Other Features
Heat Dissipation
Air Cooling
Surge Protection
Power Supply Surge Protection ±6 kV
Certification
EMC Certification
Safety Certification
Manufacturing Certification
