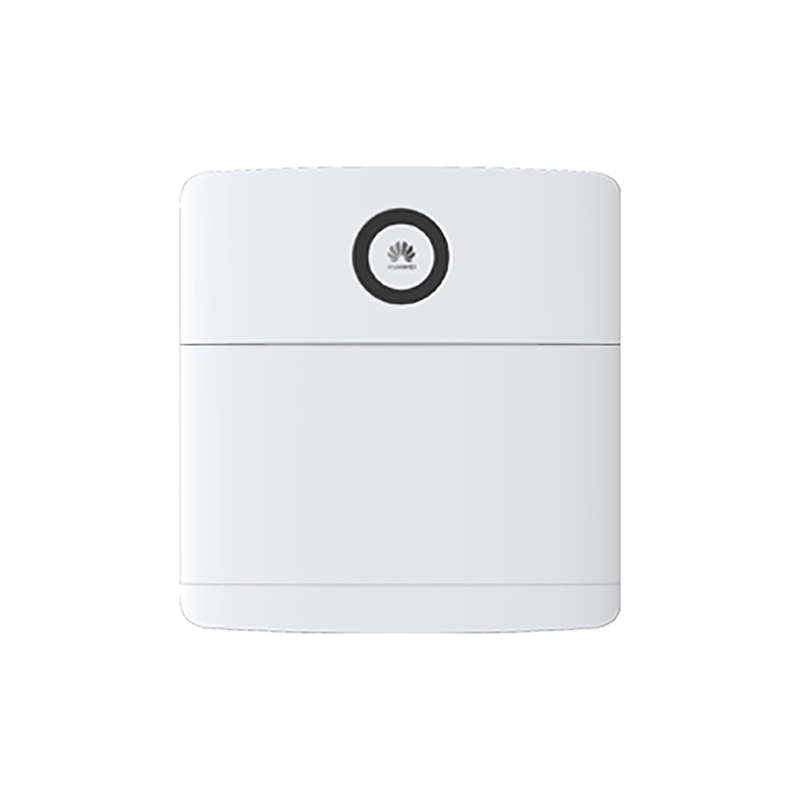

Huawei Isitepower-M 1PH Back-Up Kit 5KW Inverter 5KWh Battery Li-Ion

AC Output
Rated Power Output: 6 kVA / 5 kW
Output Voltage: 230 VAC/50Hz
Max. Output Current: 25.8A
Max. Bypass Input Power: 6kW

AC Input
AC Input Voltage: 230VAC/50Hz
Surge Protection: 3 kVA/5 kVA, 8/20 ?s
Max. Input Current: 30 A

PV Input
Start-up Voltage: 100VDC
MPPT Voltage: 90?420VDC
Max. Input Voltage (Voc): 435VDC
Max. Input Current (Isc): 2 x 15 A
Recommended PV Power: 5000 Wp
No. PV Strings/MPPT Routes: 2/1
Optimizer Compatibility: DC Mbus Compatible
DC Surge Protection: 10 kA, 8/20 ?s, criterion C
Max. Input Current per Strings: 15 A

General
Communication: Wi-Fi
Display: LED's, NetEco

Battery Module Capacity: 5 kWh per module
Max. Output Power: 2.5kW per Module, 5kW per ESS
Output/Input Voltage: 370-480VDC
Cycle Life: 6000 cycles @ 25?C, 100% DOD

Requires installation by a Huawei preferred installer or a qualified electrician with a Wire Man's licence, who must supply a Certificate of Compliance after installation. Failure to provide supporting documentation on a warranty claim may void the warranty.
