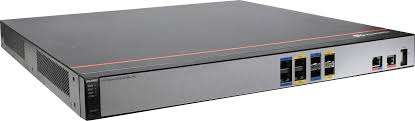

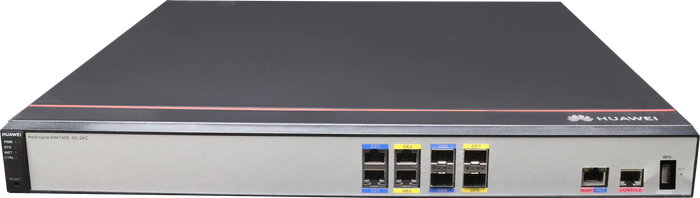

The Huawei NetEngine AR6140-9G-2AC is a powerful enterprise router designed to deliver reliable routing, VPN, and security performance for branch and enterprise networks. With 2 × GE RJ45 and 2 × GE SFP WAN ports, along with 2 × GE SFP and 3 × GE RJ45 LAN ports, it provides flexible deployment options across fiber and copper infrastructures. Backed by a quad-core processor, 2 GB of memory, and forwarding performance of 2 Gbps, it ensures fast and stable service delivery for modern enterprises.
This compact 1U router integrates rich features including IPv4/IPv6 routing, MPLS, VPN, QoS, multicast, and WLAN access controller functions. With redundant AC power supply support, intelligent cooling, and enterprise-grade reliability, the AR6140-9G-2AC offers scalability and secure connectivity for businesses that demand high availability and consistent performance.
Key Features & Benefits
Flexible WAN/LAN Ports Equipped with 2 × GE RJ45 + 2 × GE SFP WAN and 2 × GE SFP + 3 × GE RJ45 LAN ports for versatile deployment.
High-Performance Forwarding Quad-core processor with 2 Gbps forwarding and 2 Gbps IPsec VPN performance ensures reliable throughput.
Enterprise Routing & VPN Supports IPv4/IPv6 routing, MPLS, GRE, L2TP, and IPsec VPNs for secure and scalable connectivity.
Integrated Wireless Control Built-in WLAN AC functions allow AP management and centralized wireless services.
Carrier-Grade Reliability Redundant AC power supply support, intelligent cooling, and stable 1U rackmount design provide high availability.
Comprehensive QoS Supports advanced traffic management, shaping, and policing for application performance optimization.
Ideal Uses
Ideal for enterprise branch offices requiring secure WAN and LAN routing
Suitable for ISPs and service providers deploying MPLS or VPN services
Perfect for retail and financial institutions managing high-volume encrypted traffic
Reliable for government, healthcare, and education networks needing IPv6 and wireless integration
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: NetEngine AR6140-9G-2AC
Form Factor: 1U Rackmount Router
Processor: Quad-Core
Forwarding Performance: 2 Gbps (LAN WAN, NAT, ACL, QoS)
IPsec Performance: 2 Gbps (IMIX)
Ports:
WAN: 2 × GE RJ45 + 2 × GE SFP
LAN: 2 × GE SFP + 3 × GE RJ45 (configurable as WAN)
SIC Slots: 4
WSIC Slots: 0 (default) / 2 (max)
Console: 1 × RJ45 console port
USB: 1 × USB 3.0 (compatible with USB 2.0)
Memory: 2 GB
Flash Memory: 1 GB
Hot Swapping: Supported
Power Supply: Dual redundant AC (100240 V, 50/60 Hz)
Power Consumption: Typical 18W / Max 32W
Cooling: Built-in fan modules, left-to-right airflow
Noise Level: 54 dB
Dimensions (H × W × D):
Without brackets: 44.5 × 442 × 420 mm
With brackets: 44.5 × 482.6 × 572.5 mm
Weight: 7.3 kg (approx.)
Operating Environment: 0°C 45°C, 5% 95% RH, up to 5000 m altitude
Storage Environment: -40°C +70°C, 5% 95% RH
Key Features Supported: IPv4/IPv6 routing, MPLS L2/L3 VPN, IPsec/GRE/L2TP VPNs, NAT, DHCP, STP, VLAN management, multicast (IGMP, PIM, MSDP, MVPN), WLAN AC functions, and advanced QoS.
Warranty: 3 Month Carry-in Warranty
What's in the Box: Huawei NetEngine AR6140-9G-2AC Router
