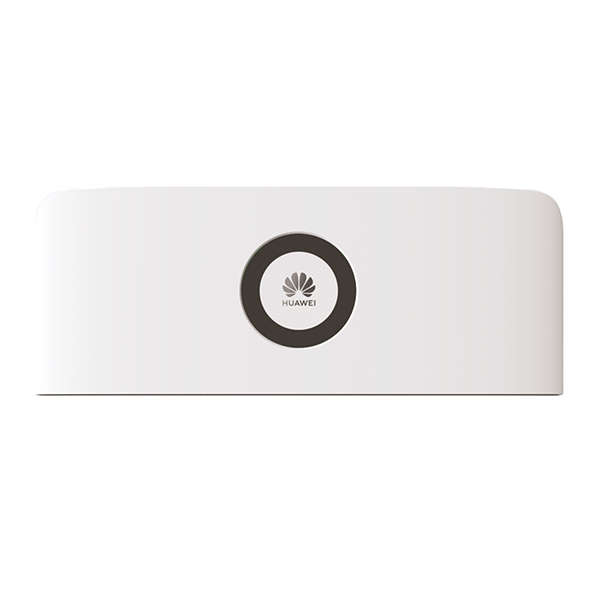

Huawei Power Mate 5KVA Intelligent Storage Module

Basic Parameters

Dimensions

Single power module: 700 mm x 246 mm x 152 mm Single battery module: 700 mm x 390 mm x 158 mm
Base (mandatory for floor installation): 700 mm x 55 mm x 147 mm
Base (mandatory for wall-mounted installation): 700 mm x 118 mm x 184 mm

weight

Approx. 17 kg for a single power module Approx.50 kg for a single energy storage module

Installation Mode

Wall-mounted/ground-mounted

Degree of protection

IP65

AC input

Input voltage system

Single-phase 200/208/220/230/240 VAC, 220 V AC by default

Input voltage range

20%

Input current

Max. 30 A

Frequency

50/60Hz

lightning protection

Differential mode: 3KA; common mode (two-wire pair PE): 5KA; 8/20 μs

PV input

Start-up voltage

100V DC

Maximum input voltage

435V DC

MPPT voltage range

90-420V DC

Rated input voltage

345V DC

Maximum input capacity of the MPPT

5.5KWp

PV string quantity

2 strings

Number of MPPT channels

1 channel

Maximum input current

2*15A

Maximum short circuit current

2*18A

lightning protection

10 kA common mode (two-wire pair PE), 8/20 μs

AC output

Output voltage system

Single-phase 200/208/220/230/240 VAC, 220 V AC by default

Output frequency

50/60 Hz. The default value is 50 Hz.

Maximum output current

30A

Input and output power

6kVA/5kW

THD

⧠3% R load

Bypass input power

Maximum bypass input power

6kW

overload capacity

102% ⧠Load ⧠125%

30S

125% < Load ⧠150%

10s

>150%/short circuit
