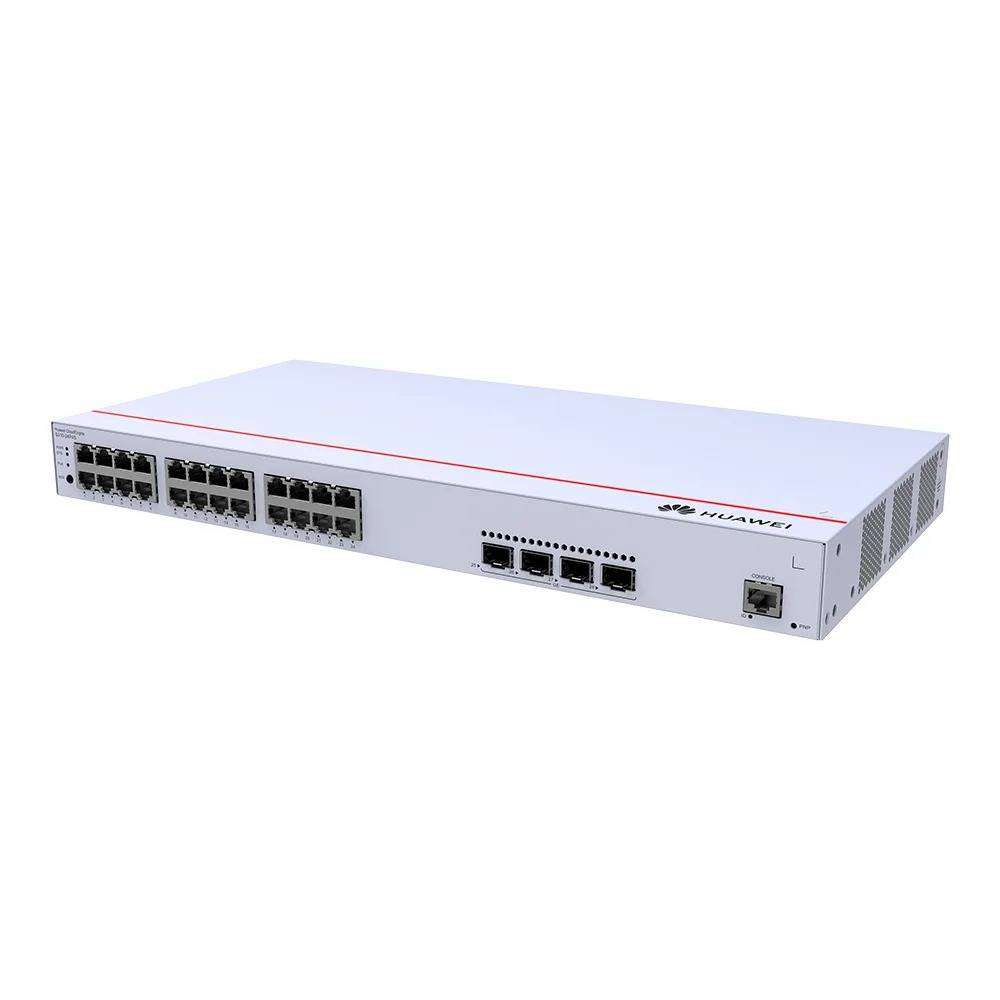

Huawei – S310-24P4S CloudEngine Switch

Based on the next-generation high-performance hardware and software platform, Huawei CloudEngine S310 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. In addition, CloudEngine S310 series switches support multiple Layer 3 routing protocols, delivering higher performance and more powerful service processing capabilities. These make them ideal for various application scenarios, such as enterprise campus access and gigabit to the desktop.

• Key Features

  • 24 × GE ports + 4 × GE SFP uplinks

  • AC power supply with PoE+ support

  • Packet forwarding rate: 42 Mpps

  • Switching capacity: 260 Gbit/s

  • Intelligent stack (iStack) for scalability

  • Flexible Ethernet networking: STP, RSTP, MSTP, SEP, ERPS, Smart Link

  • Diversified security: 802.1X, MAC auth, DHCP snooping, ARP protection, DoS defense

  • Easy O&M: zerotouch deployment, USB batch config, SNMP, CLI, SSH, RMON

  • VLAN functions: MUX VLAN, VCMP, VBST

  • PoE enhancements: Fast PoE, Perpetual PoE

  • Smart upgrade via Huawei Online Upgrade Platform (HOUP)

  • Cloud/onpremise management modes

  • OPS programmability with Python for custom O&M

  Specifications

  • Dimensions: 43.6 × 442 × 227 mm, 1U

  • Weight: 2.92 kg (device), 3.79 kg (packaged)

  • Power Consumption: 40 W typical, up to 491 W with full PoE load

  • Heat Dissipation: Air cooling, dual fans

  • Operating Temp: 5 °C to +50 °C

  • Memory: 2 GB RAM, 1 GB Flash

  • Surge Protection: Service port ±7 kV, power ±6 kV

  • Certifications: EMC, safety, manufacturing

  Whats in the Box

  • 1 × Huawei CloudEngine S31024P4S Switch

  • 1 × User Guide
