S5700-10P-PWR-LI-AC Overview
The Huawei S5700-10P-PWR-LI-AC is simplified gigabit switches with super-flexible, easy-to-manage platform to optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s. The additional PoE technology can ensure the safety of power supply while ensuring the normal transmission of data signals to minimize costs. Then its various options include lithium-oxide battery backup, CSFP interfaces, and zero-touch remote maintenance, as well as models customized, meeting specialized requirements of users. Ideal for use as an access or aggregation switch in a campus network, it strives to provide energy-saving and cost-effective gigabit to the desktop solution.
Quick Specs

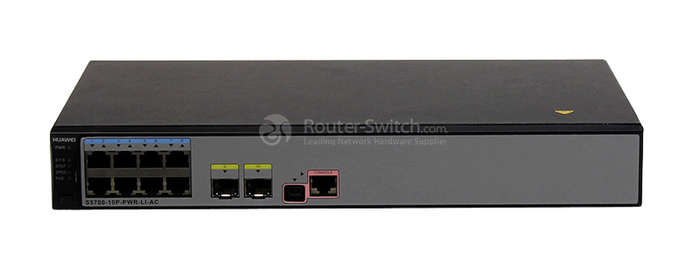

Figure 1 shows the appearance of Huawei S5700-10P-PWR-LI-AC.
Table 1 shows the Quick Specs.
| Product Code | S5700-10P-PWR-LI-AC |
| Ports | 8 GE POE ports, 2 GE SFP ports |
| Memory (RAM) | 256 MB |
| Flash | 200 MB |
| MAC Address Table Size | 16 MAC |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Device | AC power supply |
| Power Consumption Operational | < 60W |
| Forwarding Performance | 15 Mpps |
| Switching Capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 320 mm x 220 mm x 43.6 mm |
| Package Weight | 3.5kg |
| PoE | PoE+ |
Product Details

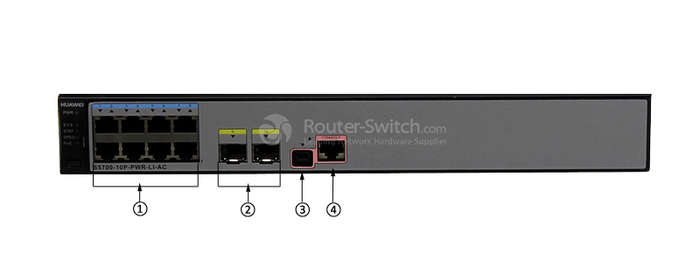

Figure 2 shows the front panel of Huawei S5700-10P-PWR-LI-AC.
Note:
| | Eight PoE+ 10/100/1000BASE-T ports | | One mini USB port |
| | Two 1000BASE-X ports | | One console port |
Figure 3 shows the back panel of Huawei S5700-10P-PWR-LI-AC.
Note:
| | Ground screw |
| | AC socket |
| | Jack for AC terminal locking latch |
*The ground screw is used with a ground cable.
*AC socket is used with an AC power cable.
*The AC terminal locking latch is not delivered with the switch.
Optical Transceivers
Table 2 shows the recommended optical modules.
| GE-SFP Optical Transceiver | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
Compare with Similar Item
Table 3 shows the comparison of Huawei S5700-10P-LI-AC and S5700-10P-PWR-LI-AC.
| Model | S5700-10P-LI-AC | S5700-10P-PWR-LI-AC |
| Fixed Ports | 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports | 8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports |
| Power Supply | AC power supply | AC power supply |
| PoE | Not supported | Supported |
| Forwarding Performance | 15 Mpps | 15 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s |
