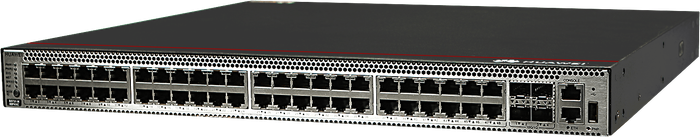

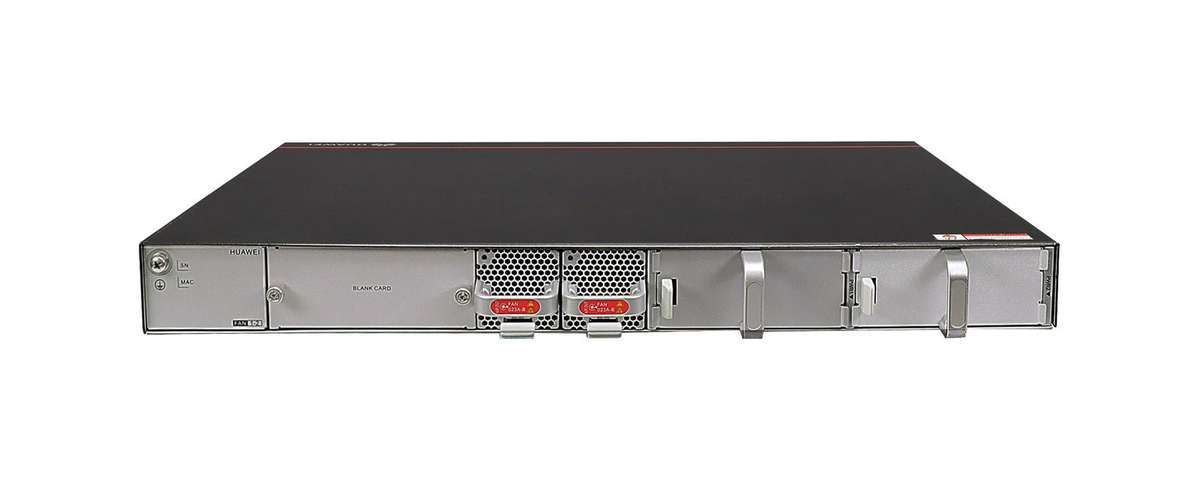

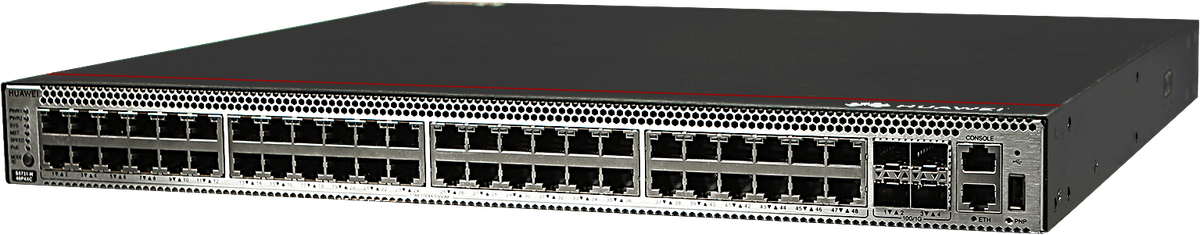

The Huawei S5731-H48P4XC is a high-performance Layer 3 PoE+ switch designed for enterprise networks requiring high port density, power delivery, and advanced routing. It features 48 x Gigabit Ethernet PoE+ ports and 4 x 10GE SFP+ uplinks, supporting full Layer 3 protocols, multicast control, robust security, and intelligent traffic management.
Built for core and aggregation deployments, this 1U switch offers strong reliability, traffic shaping, and MAC-based security, delivering stable and efficient operation in high-demand environments.
Key Features & Benefits
48 x 10/100/1000Base-T PoE+ ports for power and data over a single cable
4 x 10GE SFP+ uplink ports for high-speed backbone access
Switching capacity and features suitable for Layer 3 enterprise routing
Supports advanced VLAN, multicast, and routing protocols
Integrated QoS and ACLs for traffic control and prioritization
Secure access with 802.1X, MAC filtering, and DoS protection
Intelligent fan-based air cooling with thermal speed control
Ideal Uses
Powering and connecting IP phones, cameras, and wireless APs
Aggregation switch in enterprise campus networks
Secure Layer 3 routing in medium to large network environments
Centralized PoE switch in infrastructure requiring VLAN segmentation
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: S5731-H48P4XC
Form Factor: 1U Rackmount
Ports:
48 x 10/100/1000Base-T (PoE+)
4 x 10GE SFP+
Switching Capacity: Not specified in base unit
MAC Address Table: 288K entries
VLAN Support: 4094 VLANs
Routing Protocols: Static, RIP v1/v2, OSPF, IS-IS, BGP, OSPFv3, BGP4+, ECMP
IPv6 Support: IPv6 routing, DHCPv6, VRRPv6, ACLs, ND, MLD snooping
Multicast Support: IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP
QoS & ACLs:
802.1p/DSCP marking
DRR, SP queue scheduling
Rate limiting and traffic shaping
L2L4 packet filtering
Security Features:
DoS, ARP, ICMP protection
Port isolation and sticky MAC
IEEE 802.1X authentication
RADIUS and AAA authentication
Reliability Features: STP, RSTP, MSTP, ERPS, BFD
Power Input:
100240V AC, 50/60 Hz
Max Power Consumption: 1750W (with PoE devices)
Power Consumption (without PD): 132W
Operating Temperature: 5°C to 45°C (up to 1800m altitude)
Storage Temperature: 40°C to 70°C
Humidity: 5% to 95% (non-condensing)
Surge Protection: ±6 kV (ports and power)
Cooling: Air-cooled with intelligent fan speed control
Noise Level:
Normal temperature: 62.3 dB(A)
High temperature: 71.8 dB(A)
Dimensions: 43.6 x 442 x 420 mm
Weight: 8.8 kg (with packaging)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
