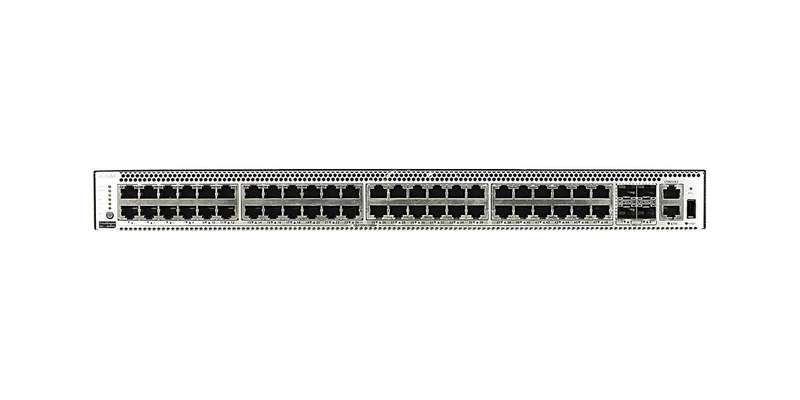

The Huawei S5731-S48P4X is a high-performance Layer 3 managed switch designed for enterprise campus networks. Equipped with 48 Gigabit PoE+ ports and 4 x 10G SFP+ uplinks, it delivers full Layer 3 routing, high-density PoE, advanced security, and intelligent stacking.
With comprehensive support for IPv6, multicast, QoS, and policy-based control, the S5731-S48P4X enables scalable, secure, and energy-efficient switching for next-generation networks. This refurbished unit is optimized for enterprise edge, aggregation, and IP surveillance deployments.
Key Features & Benefits
48 x 10/100/1000Base-T PoE+ ports and 4 x 10G SFP+ uplink ports
Advanced Layer 3 routing: static, OSPF, IS-IS, BGP with up to 16K IPv4 FIB entries
132W base power (up to 1750W with PoE) for efficient, scalable deployments
High-capacity MAC table (32K) and up to 4094 VLANs supported
Intelligent air-cooled system with pluggable fan design for operational efficiency
Ideal Uses
Enterprise edge switching with full PoE+ support for wireless APs, IP phones, and cameras
Aggregation layer deployments requiring Layer 3 routing and multicast control
Secure campus networks with advanced access control and MAC binding
Scalable PoE-based surveillance or access networks with reliable redundancy
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: S5731-S48P4X
Form Factor: 1U Rackmount
Ports: 48 x 10/100/1000Base-T PoE+, 4 x 10G SFP+
Switching Capacity: Not specified
MAC Address Table: 32,000 entries
VLAN Support: 4094 VLANs
IPv4 Routing Entries: Up to 16,000
IPv6 ND Entries: Up to 8,000
Multicast Support: IGMP v1/v2/v3, PIM-SM/DM/SSM, MSDP, MVPN
QoS: 8 queues per port, DRR, SP, WRED, traffic shaping and policing
Security Features: DoS/ARP/ICMP attack defense, port isolation, MAC/IP/VLAN binding, AAA, 802.1X, RADIUS, SSH, HTTPS
Reliability: STP/RSTP/MSTP, ERPS, Smart Link, BFD, Ethernet OAM
Stacking Support: iStack (up to 9 member switches)
Management: SNMP v1/v2c/v3, RMON, Syslog, Web NMS
Surge Protection (Service Port): ±6 kV
Surge Protection (Power Port): ±6 kV differential and common mode
Cooling: Air-cooled, pluggable fans
Power Supply: 1000W PoE AC (pluggable)
Input Voltage: 100240V AC, 50/60 Hz
Max Power Consumption: 132W (no PD) / 1750W (full PoE load)
Operating Temperature: -5°C to +45°C (de-rates with altitude)
Storage Temperature: -40°C to +70°C
Humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H): 442 x 420 x 43.6 mm
Weight: 8.8 kg
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
