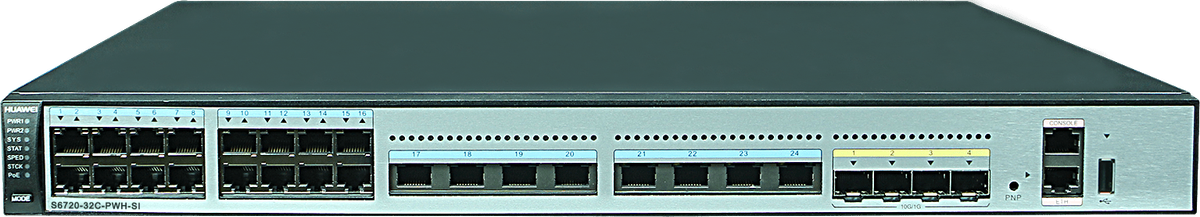

The S6720-32C-PWH-SI is a high-performance Layer 3 managed Ethernet switch built for high-density 10GE access and advanced routing. Featuring 24 multi-speed Ethernet ports (supporting up to 10GBase-T), it offers flexible connectivity for modern enterprise networks. With full Layer 3 capabilities, advanced QoS, multicast control, and robust security features, the switch supports seamless and reliable traffic handling at the aggregation and core layers.
Designed for performance, the switch delivers a 2.56 Tbit/s switching capacity and 240 Mpps forwarding performance, enabling ultra-fast network convergence and future-ready scalability.
Key Features & Benefits
24 x 100M/1G/2.5G/5G/10GBase-T Ethernet ports for flexible access
4 x 10GE SFP+ uplink ports for high-speed connectivity
One extended slot supporting either 2 x 40GE QSFP+ or 4 x 10GE SFP+
Layer 3 routing: Static, RIP, OSPF, BGP, IS-IS, VRRP (IPv4 & IPv6)
Multicast support: IGMP v1/v2/v3, PIM-SM/DM, MLD, MSDP
Comprehensive VLAN features including 4K VLANs and QinQ
Extensive QoS and ACL functions for traffic shaping and prioritization
Reliability features: STP, RSTP, MSTP, SEP, ERPS, RRPP
Security: IEEE802.1X, MAC address authentication, DoS protection, MACSec
Web, SSH, SNMP, and CLI management interfaces
Ideal Uses
High-density enterprise access switches with multi-gig uplinks
Aggregation switch in campus or service provider environments
Core switching for branch or mid-size data centers
Multi-service integration: IP routing, multicast, and security edge control
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: S6720-32C-PWH-SI
Form Factor: 1U Rackmount
Fixed Ports:
24 x 100M/1G/2.5G/5G/10GBase-T Ethernet
4 x 10GE SFP+
Extended Slot: 1 x expansion slot (2 x 40GE QSFP+ or 4 x 10GE SFP+)
Switching Capacity: 2.56 Tbit/s
Forwarding Performance: 240 Mpps
MAC Address Table: 32K
VLAN Support: 4,000 VLANs
IPv4 Routing: Static, RIP v1/v2, OSPF, IS-IS, BGP, ECMP, VRRP
IPv6 Routing: Static, RIPng, OSPFv3, IS-ISv6, BGP4+, VRRP6
Multicast: IGMP v1/v2/v3, PIM-SM, PIM-DM, MLD
QoS Features: Traffic classification, policing, shaping, and queue scheduling (PQ, DRR, WRR)
Security Features:
Port security, DoS/ARP/ICMP attack protection
IEEE802.1X, MAC authentication
IP+MAC+port+VLAN binding
MACSec
Management: Web, SNMPv1/v2c/v3, RMON, CLI, SSH
Input Power:
AC: 100240V, 50/60Hz
DC: -48 to -60V
Power Consumption: Max 125.6W (without card and PD)
Dimensions: 442 x 420 x 44.4 mm
Operating Temperature: 0°C to 45°C (altitude-dependent)
Humidity: 5% to 95% (non-condensing)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
