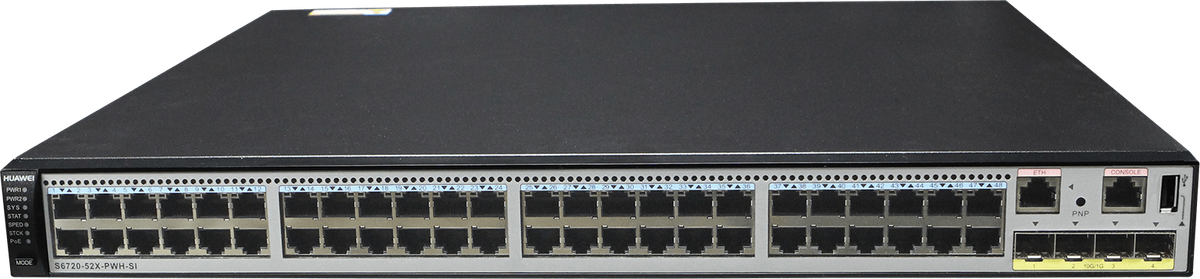

The Huawei S6720-52X-PWH-SI is a high-performance Layer 3 Ethernet switch designed for enterprise networks, campus backbones, and data centers requiring reliable connectivity at scale. With a switching capacity of 2.56 Tbit/s and forwarding performance of 480 Mpps, this switch delivers the speed and stability needed to handle demanding network traffic. Its 48 × multi-gigabit Base-T ports and 4 × 10GE SFP+ uplinks provide versatile connectivity options for both access and aggregation.
Built for enterprise environments, the S6720-52X-PWH-SI supports advanced Layer 3 routing protocols, multicast features, robust QoS, and comprehensive security functions. It offers iStack support for simplified scaling, redundancy technologies for high availability, and extensive IPv4/IPv6 capabilities. With flexible power inputs, low typical power consumption, and advanced management tools, this switch ensures reliable performance and simplified operation in modern IT infrastructures.
High-Performance Switching 2.56 Tbit/s switching capacity and 480 Mpps forwarding enable the switch to handle heavy traffic loads without bottlenecks.
Versatile Port Options 48 × multi-gigabit (100M/1G/2.5G/5G/10G) Base-T ports and 4 × 10GE SFP+ uplinks provide flexible access and aggregation deployment.
Advanced Routing & Multicast Supports IPv4/IPv6 protocols including OSPF, BGP, IS-IS, VRRP, and multicast routing for complex enterprise networks.
Enterprise Reliability Dual power input (AC/DC), redundancy features such as STP, ERPS, and Smart Link, plus iStack support ensure high availability.
Ideal for enterprise campus backbones requiring high-speed aggregation
Suitable for data centers needing scalable Layer 3 switching
Perfect for ISPs and service providers delivering secure multi-tenant networking
Reliable for research institutions and government environments with advanced IPv6 and multicast needs
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Huawei
Model: S6720-52X-PWH-SI
Form Factor: 1U Rackmount Layer 3 Ethernet Switch
Switching Capacity: 2.56 Tbit/s
Forwarding Performance: 480 Mpps
Ports: 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet, 4 × 10GE SFP+
MAC Address Table: 32K entries (static, dynamic, blackhole)
VLANs: 4K VLANs, QinQ, voice VLAN, guest VLAN, VLAN mapping
IPv4 Routing: Static, RIP v1/v2, OSPF, IS-IS, BGP, VRRP, PBR
IPv6 Routing: Static, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast: IGMP snooping v1/v2/v3, PIM-SM/DM, MSDP, MLD snooping
QoS: Traffic classification, policing, shaping, PQ, DRR, WRR scheduling
Reliability Features: STP, RSTP, MSTP, ERPS, Smart Link, SEP, BFD, E-trunk
Security: ARP/DoS defense, port security, sticky MAC, 802.1X, RADIUS, MACSec
Management: iStack, SNMP v1/v2c/v3, RMON, Web NMS, sFlow, Ethernet OAM, SSH, HTTPS
Power Input: AC 100240V, DC 48V to 60V
Power Consumption: Typical 159.5W, Max 236.8W (AC) / 207.36W (DC without PD)
Dimensions (W × D × H): 442 × 507 × 44.4 mm
Weight: Approx. 1U class chassis
Operating Environment: 045°C (derated above 1800 m), 595% RH non-condensing
Warranty: 3 Month Carry-in Warranty
What's in the Box: Huawei S6720-52X-PWH-SI Switch
