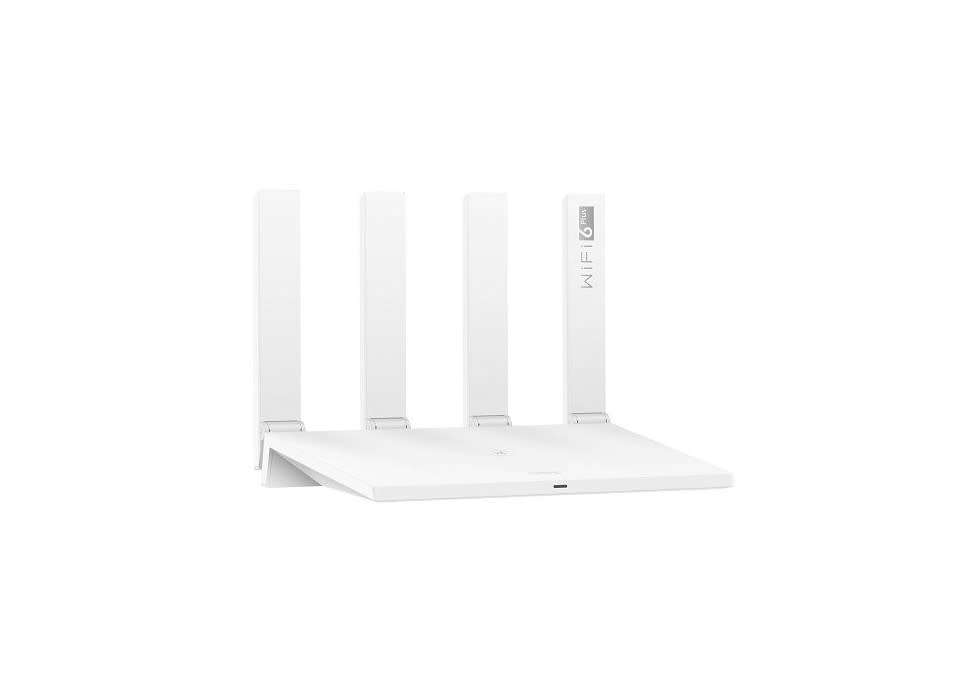

Technical Specifications
Chipsets
CPU: Hi5651L, 1.2GHz Dual-Core
2.4 G Wi-Fi chip: Hi1152(2x2 Wi-Fi2.4GHz)
5G Wi-Fi chip: Hi1152(2x2 Wi-Fi5GHz)
3.1.2 RAM and Flash Memory
RAM: 128MbytesDDR3
Flash memory: 128MB Nand FLASH
Wi-Fi
Supports 802.11b/g/n/ax (2.4 GHz, wireless rates up to 574Mbps).
Supports 802.11a/n/ac/ax (5 GHz, wireless rates up to 2402Mbps).
Supports simultaneous dual-band (11ax2.4 GHz 574Mbps and 11ax5 GHz 2402MbpsWi-Fi, wireless rates up to 2976Mbps).
Note: The data rates shown are theoretical in nature. Actual data rates may vary depending on operating environment, wireless device, and other factors. Data rate comparisons (if any) are for the purpose of scientific explanation and should be used for reference only.
Adopts Huawei's unique external 2.4 GHz and 5 GHz High Gain antennas for better Wi-Fi coverage.
Supports simultaneous Wi-Fi access on the 2.4GHz and 5 GHz bands and supports up to 128 devices on dual bands.
Supports AES and TKIP encryption.
Supports WPA/WPA2-PSKand WPA2-PSK/WPA3-SAE.
Supports 5 GHz Wi-Fiprioritization. Your devicesthat support 802.11vwill automatically connect to the faster Wi-Fi.
Supported 2.4 GHz channels: 13 channels in China (113), 13 channels in countries and
areas using the CE standards (113), 11 channels in countries and areas using the FCC
standards (111).
Supported 5 GHz channels: Channels 3664 and 149165 in China, channels 3664 and
100140 in countries and areas using the CE standards, and channels 3664, 100-140
and 149165 in countries and areas using the FCC standards.
NOTE:
Channel values vary with countries.
Currently, the router does not support the 5 GHz DFS channel in countries and areas using the FCC
standards.
Relationship between 5 GHz channels and frequency bands: Channels 3648 correspond to band 1
(5.155.25 GHz). Channels 5264 correspond to band 2 (5.255.35 GHz) DFS. Channels 100140
corresponds to band 3 (5.475.725 GHz) DFS. Channels 149165 correspond to band 4 (5.7255.85
GHz).

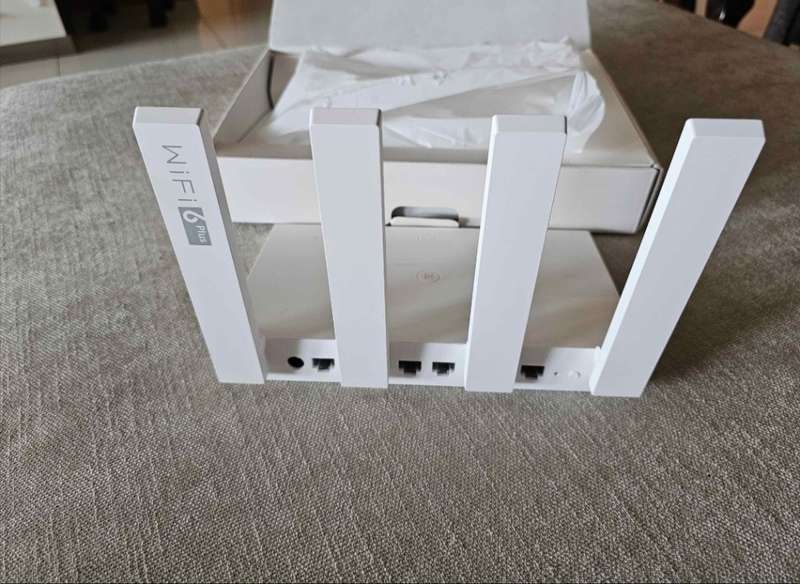

Ports
WAN Ethernet Port
100/1000 Mbit/s self-adaptive Ethernet port: 1
LAN Ethernet Port
100/1000 Mbit/s self-adaptive Ethernet ports: 3
Power Supply Specification
Power supply: 12V DC, 1A
Power consumption: < 12W
Input voltage: 100 -240V AC
Input voltage frequency: 50 60 Hz
Physical Specifications
Dimensions (Height x Width x Depth):
The product with folded external antennas:39.7mmx 225mm x 159.2mm
The product with vertical external antennas:165.2 mm x 225 mm x 144.4mm
The packaging of EU/UKversion:56mm x 313mm x 212mm
Weight:
The product without packaging: about 387g
The EU version weight: about710g
The UK version weight: about720g
Operating temperature: 0°Cto 40°C (32°F to 104°F)
Storage temperature: 40°C to +70°C (40°F to +158°F)
Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95%, non-condensing

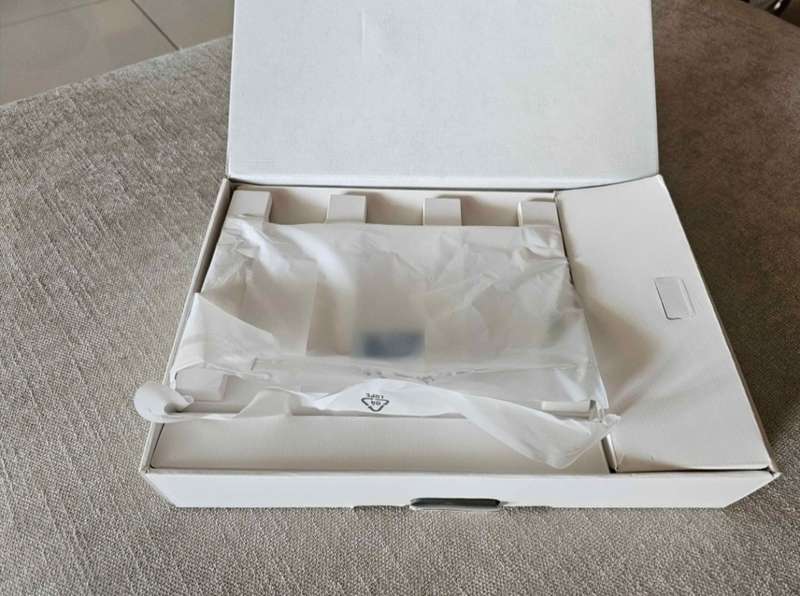

What's in the box
Power adapter x 1
Network cable x 1
Quick Start Guide and Safety Information x 1
