HUAWEI unique Dynamic Narrow Bandwidth technology, the chipset level synergy between routers and devices, improves the signal of HUAWEI Wi-Fi 6 smartphones to new height.
3x Speed: Not only 1024 QAM but also 160Mhz Channel bandwidth, which maximizes the speed of Wi-Fi 6 and even the Wi-Fi 5 phones or tablets supporting 160Mhz channel bandwidth.
4x Capacity: OFDMA from Mobile Telecommunication field allows sharing the spectrum resources simultaneously.
2/3 Latency Cut: OFDMA and the latest spatial reuse technology BSS coloring increase your network efficiency and decrease interference.
30% Power Saved: On-demand waked-up functionality saves battery for all Wi-Fi 6 connected devices.
Dual-core 1.2GHz CPU
Computing power up to 6000 DMIPS ensures smooth network experience in multi-connection scenarios.
HUAWEI HomeSecTM
Commercial grade defence technology guards your Wi-Fi from strangers' brute-force cracking.

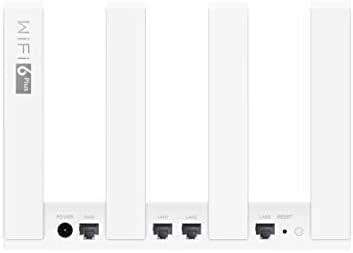

Button/Ports
H button
Connect the power adapter to this port.
Power port
WAN port
The port that connects to the Internet (e.g., a fiber optic modem/broadband modem/cable modem).
LAN ports
The ports that connect to network devices such as a computer.
Reset button
When the router is powered on, you can use a pointed object to press and hold the reset button for more than two seconds until the indicator turns off. The router should now be restored to factory settings.
Power button
Press once to power on the device or press and hold for at least three seconds to power it off.
Functions and Features
Automatically Identifying Internet Access Mode
The router can automatically identify your Internet access mode (PPPoE/DHCP). No manual operation is required.
Multi-router Network Distribution
Supports network expansion by connecting multiple HUAWEI HiLink routers using the HiLink button.
Supports network expansion by connecting multiple HUAWEI HiLink routers using Ethernet cables.
Supports the auto-sync of your router's Wi-Fi configurations: If the Wi-Fi name, password, or router management password is changed on your primary router, the configuration will automatically sync to the others HUAWEI HiLink routers.
Technical Specifications
Chipsets
CPU: Hi5651L, 1.2GHz Dual-Core
2.4 G Wi-Fi chip: Hi1152(2x2 Wi-Fi2.4GHz)
5G Wi-Fi chip: Hi1152(2x2 Wi-Fi5GHz)
3.1.2 RAM and Flash Memory
RAM: 128MbytesDDR3
Flash memory: 128MB Nand FLASH
Wi-Fi
Supports 802.11b/g/n/ax (2.4 GHz, wireless rates up to 574Mbps).
Supports 802.11a/n/ac/ax (5 GHz, wireless rates up to 2402Mbps).
Supports simultaneous dual-band (11ax2.4 GHz 574Mbps and 11ax5 GHz 2402MbpsWi-Fi, wireless rates up to 2976Mbps).
Note: The data rates shown are theoretical in nature. Actual data rates may vary depending on operating environment, wireless device, and other factors. Data rate comparisons (if any) are for the purpose of scientific explanation and should be used for reference only.
WAN Ethernet Port
100/1000 Mbit/s self-adaptive Ethernet port: 1
LAN Ethernet Port
100/1000 Mbit/s self-adaptive Ethernet ports: 3
Power Supply Specification
Power supply: 12V DC, 1A
Power consumption: < 12W
Input voltage: 100 -240V AC
Input voltage frequency: 50 60 Hz
Weight:
The product without packaging: about 387g
The EU version weight: about710g
The UK version weight: about720g
Operating temperature: 0°Cto 40°C (32°F to 104°F)
Storage temperature: 40°C to +70°C (40°F to +158°F)
Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95%, non-condensing
What's in the box
Power adapter x 1
