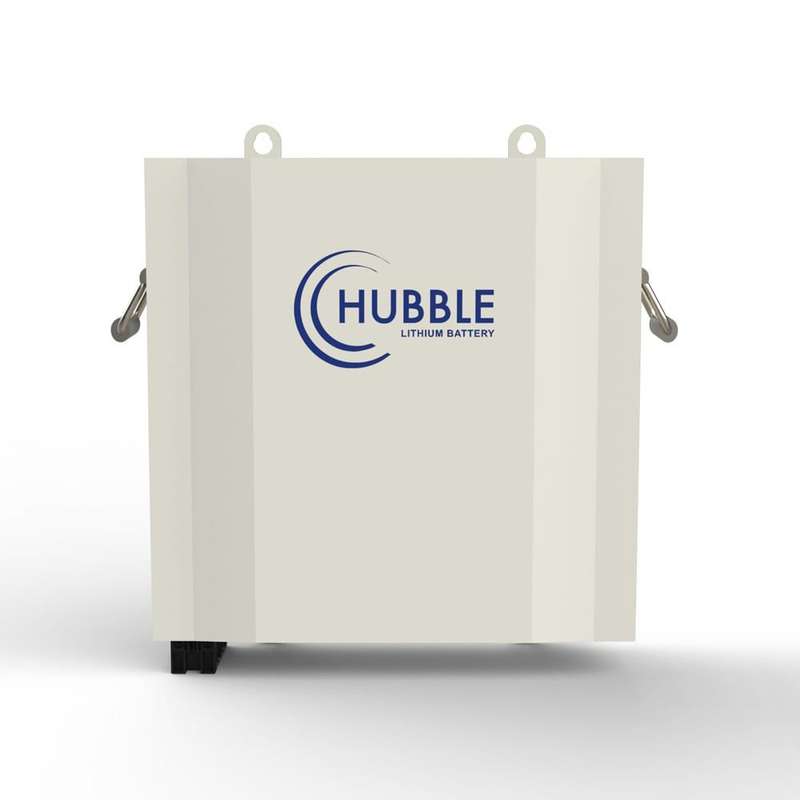

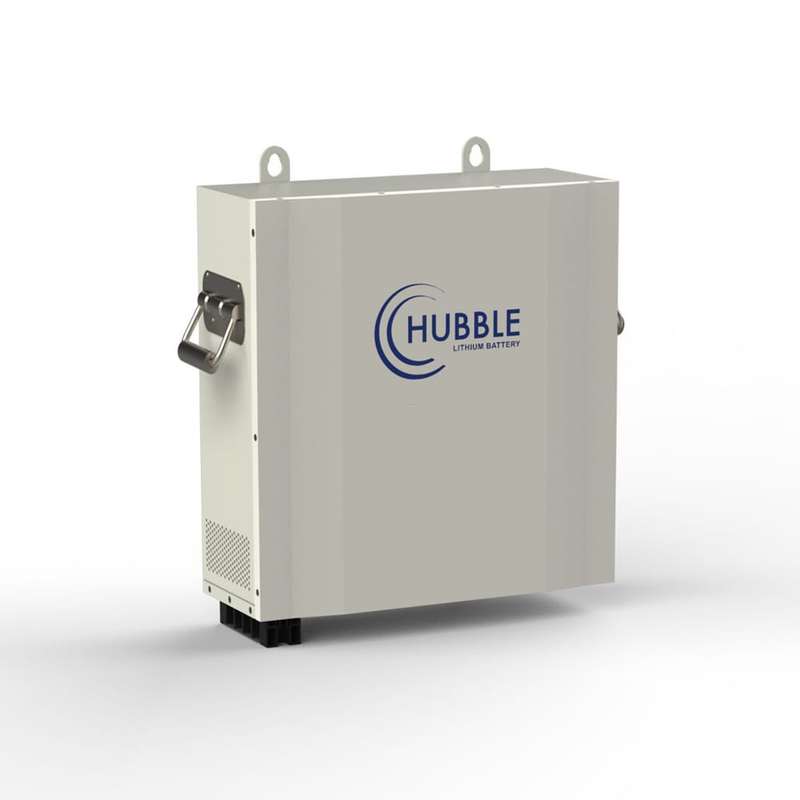

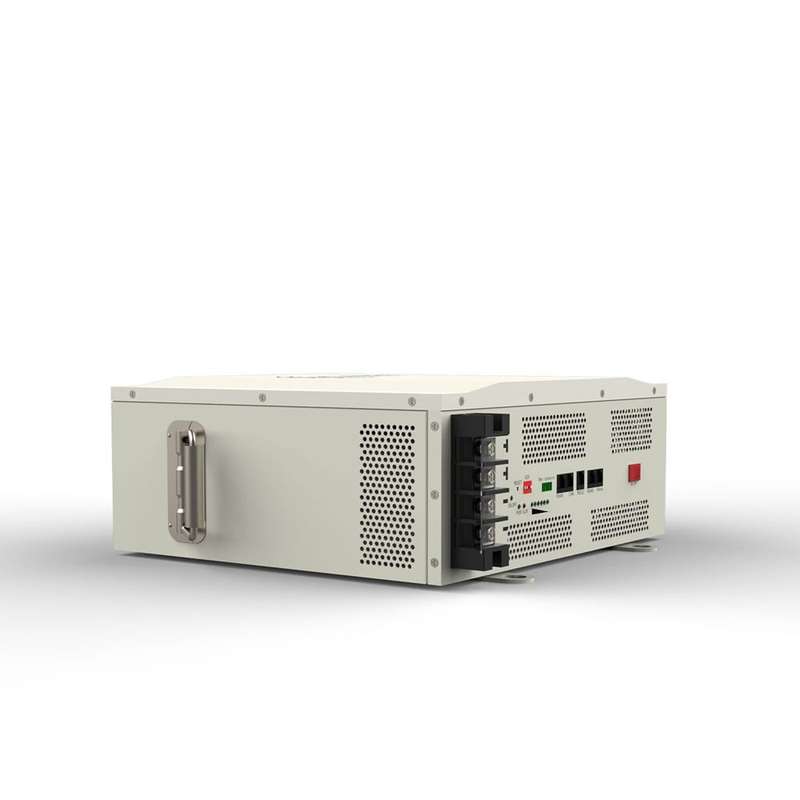

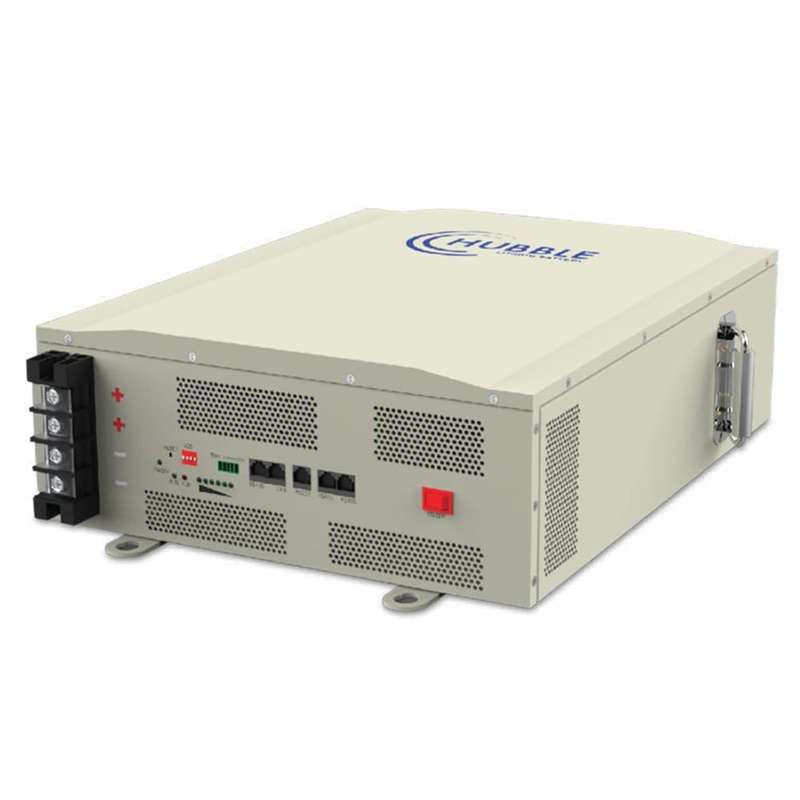

Hubble AM2 51V 5.5kW Lithium Li-Ion Battery (includes DC battery cabling and wall mountable) - RE...

10 Year warranty terms: https://www.hubblelithium.co.za/warranties

*Please note - delivery will take 1-2 days extra to any area outside of Gauteng
*Please note - an additional charge of R395 shipping applies owing to the weight of the battery
*Collection orders will not be subject the additional shipping fee

Features

- Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.
- Parallel connection up to 15 packs with full communications
- +/- 3000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD

Specifications

- Model: Hubble AM-2 REV 2
- Rated Capacity (5HR): 116 Ah
- Nominal Voltage: 48.0V
- Discharge Cutoff Voltage: 42.0V
- Equalized Charge Voltage: 53.8V
- Max. Continuous Charging Current: 105A
- Max. Continuous Discharging Current: 105A
- C Rating: 1.0C
- Weight: Approx. 42 Kg
- Display: None
- Parallel: Parallel connection up to 15 packs with full communications
- Dimensions (WxDxH) mm: 375mm x 145mm x 467mm
- Ports: 1x CAN-bus, 2x Battery Link Ports
- Cells: New Li-ion Prismatic Cells
- Cycle Life: +/- 6000 Cycles @ 50% DOD, Above 3000 cycles @ 100% DOD
- Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
- Outer Package Material: White bake lacquer steel case
- Operating Temperature:  Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
