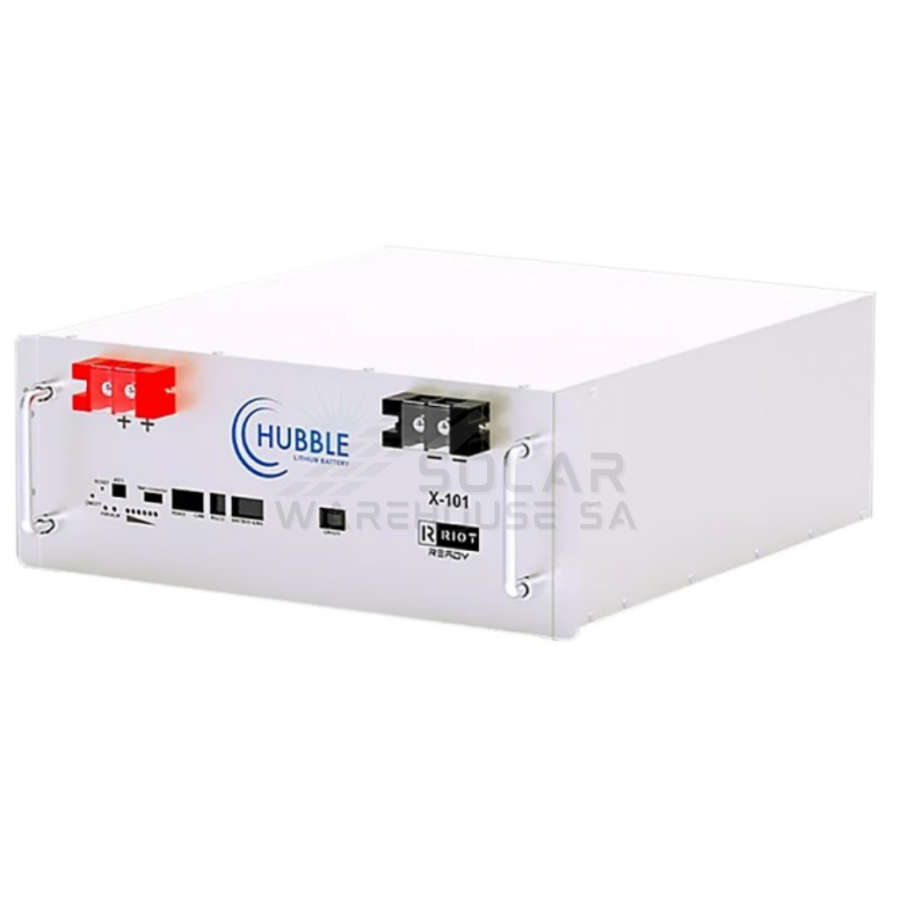

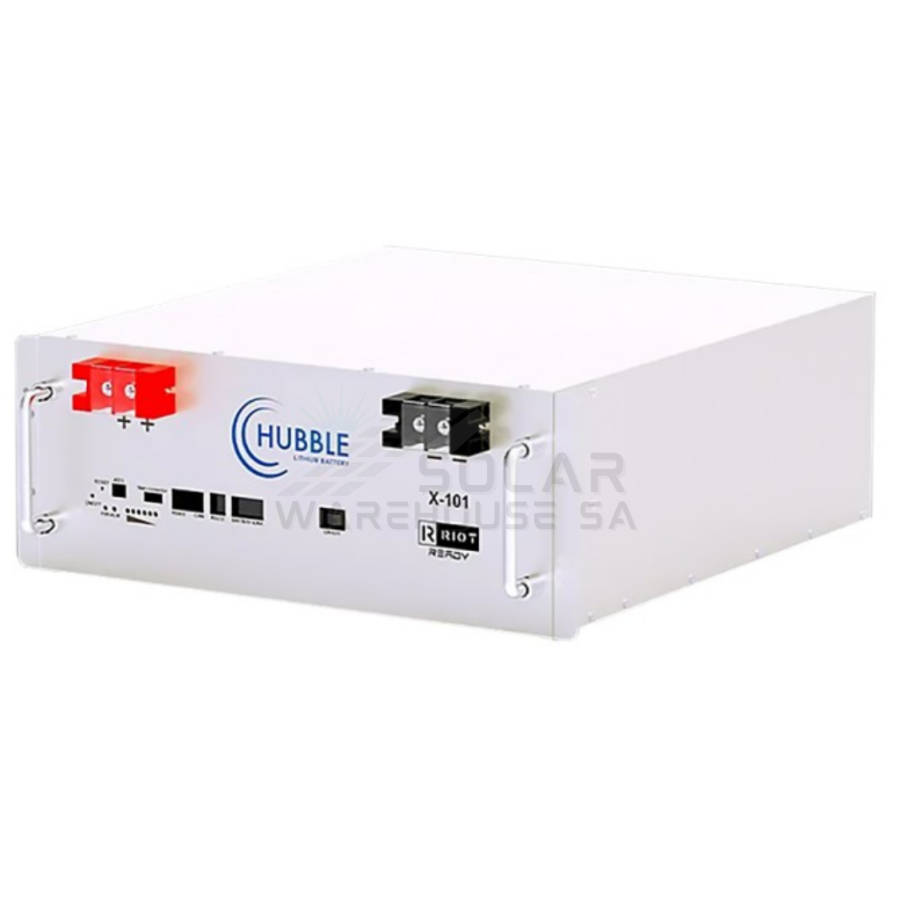

Hubble X-101 Lithium Battery 5.5kWh 51V – Rack Mountable

The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

Hubble X-101 Lithium Battery 5.5kWh 51V Rack Mountable

The X-series from Hubble is a rack mounted Lithium-Ion Battery. The X-Series fits in a standard server rack cabinet to enable high density battery configurations. The X-101 is the next generation of the popular X-100 model from Hubble. The X-101 now has built in CAN Bus and is higher density using the latest cell technology.

Features:

• Low self discharge
• High cycle and service life
• 1C High performance lithium battery
• Heavy duty handles for easy handling
• Installs easily in a standard server rack
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Cloudlink integration ready for cloud monitoring
• Complete with integrated Battery Management System
• Built-in protection for over-charge, over-discharge & over-temperature
• CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:

• Rated Capacity (5HR): 116 Ah
• Nominal Voltage: 48 V
• Design Capacity: 5.5 KWH
• Equalised Charge Voltage: 53.8 V
• Max. Continuous Charging Current: 105 A
