Huber+Suhner (82 MMCX-50-0-1/111 NE) RF / Coaxial Connector, MMCX Coaxial

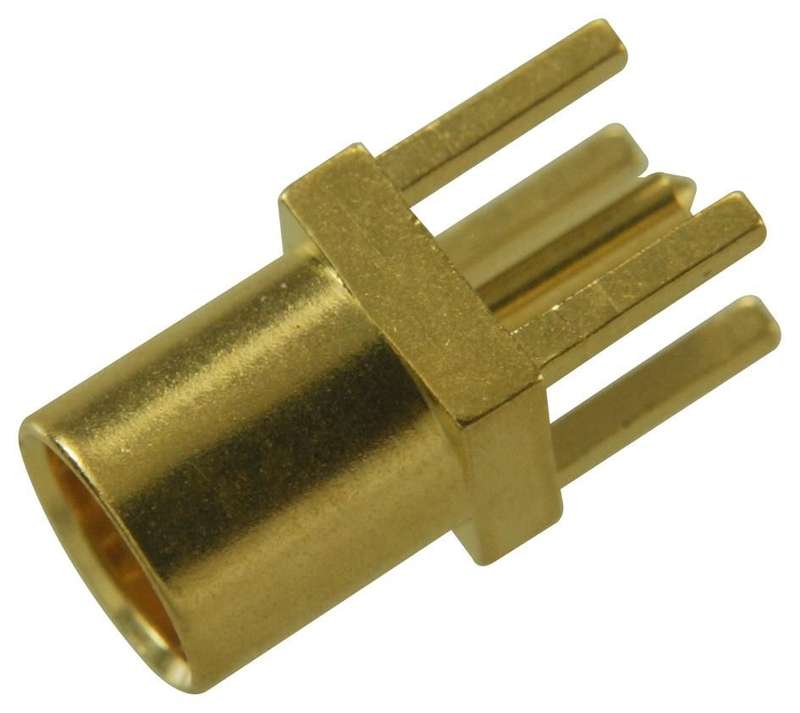

RF / Coaxial Connector, MMCX Coaxial, Straight Jack, Solder, 50 ohm, BerylliumCopperProduct OverviewThe 82 MMCX-50-0-1/111 NE is a micro miniature straight PCB Jack, intended foruse in applications where the smallest dimensions have to be achieved Theseconnectors can be used in applications from DC to 6GHz. The reliable snap-oncoupling mechanism ensures that the electrical parameters are consistentlyreproduced. Due to its non-slotted outer contact, the 82 MMCX-50-0-1/111 NEprovides a low RF-leakage. The 82 MMCX-50-0-1/111 NE SMT connector is suitableto all reflow-soldered SMT-PCBs where impedance matching or screened signaltransmission is necessary.ML 44 Mounting Hole50R ImpedanceDC to 6GHz Frequency RangeBrass Body and Crimp FerrulesApplicationsRF CommunicationsProduct InformationConnector Type: MMCX CoaxialConnector Body Style: Straight JackCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 6GHzConnector Mounting: PCB MountProduct Range: MMCX
