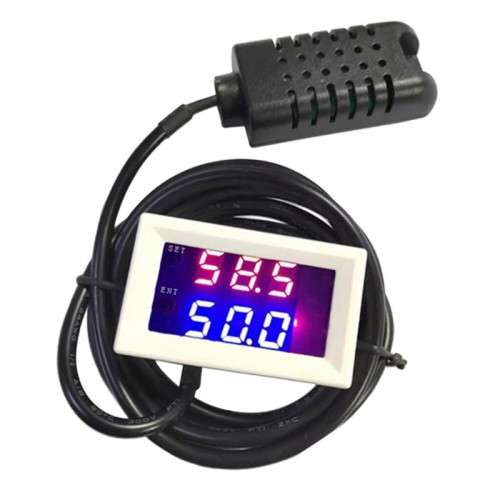

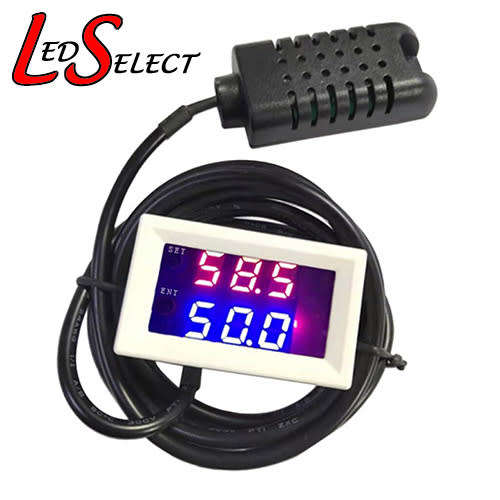

Humidity Controller Digital LCD 12V **LOCAL STOCK**

Controller Humidity Meter:

Category: 1500312645 / 1510312645 - Controller Temperature

Specifications:

Product Model: ZFX-W2062C
Supply Voltage: DC 12V/24V
Control Load Current: 10A (Max)
Humidity Measurement Range: 1% RH-999%
Size of Controller: 48 x 29 x 22mm

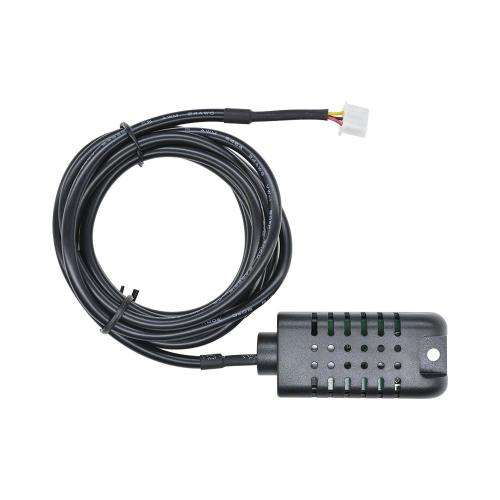

Length of Sensor cable: 1.5 meter

Instructions:

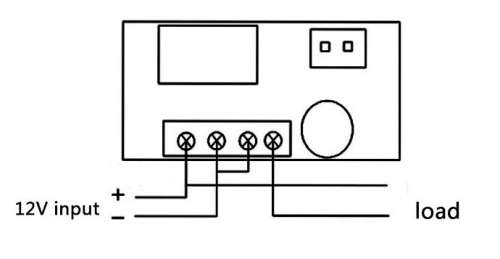

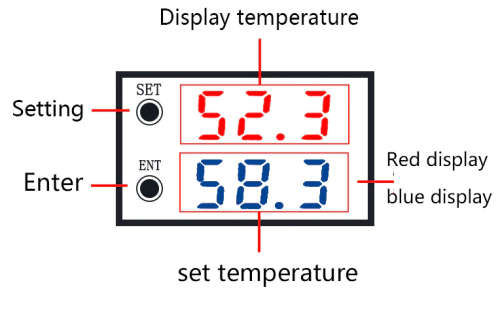

Connect the power supply and load to power the controller. The red color above shows the humidity, blue below.

Also red is displayed as the desired humidity, and press STG (+) ENT (-) to set the required humidity.

After the setting is completed, wait for 3 seconds to automatically confirm the return. At this time, the controller automatically performs relay energization according to the setting.

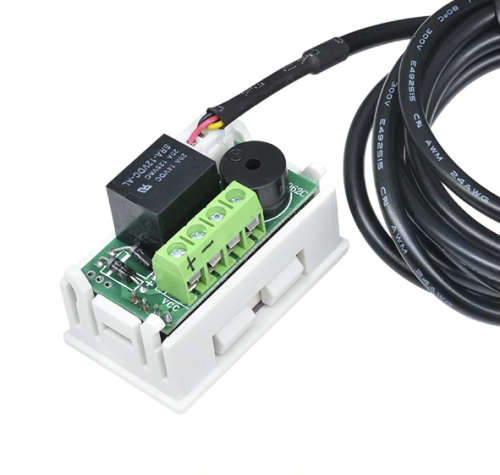

For 10A relays, to meet high power loads, please make sure the line is correct.

Indicator light, digital tube status description

Indicator light: off means the relay is off, steady light means the relay is closed

Digital tube: The above shows that LL is the sensor open circuit, indicating that HH is out of the measurement range, the humidity will forcibly open the relay.

Display - for ultra high humidity protection.

Parameter function description

Press and hold SET for 5 seconds to enter the main menu settings, press SET (+) ENT (-) to switch P0-P8, when adjusting parameters P0-P8 parameters

If you need to adjust P0, press SET button (+) ENT (-) at the same time, adjust 0K, then control SET (+) ENT (-)

Once confirmed, P1-P8 and P0 set the parameters in each code according to their own needs.
