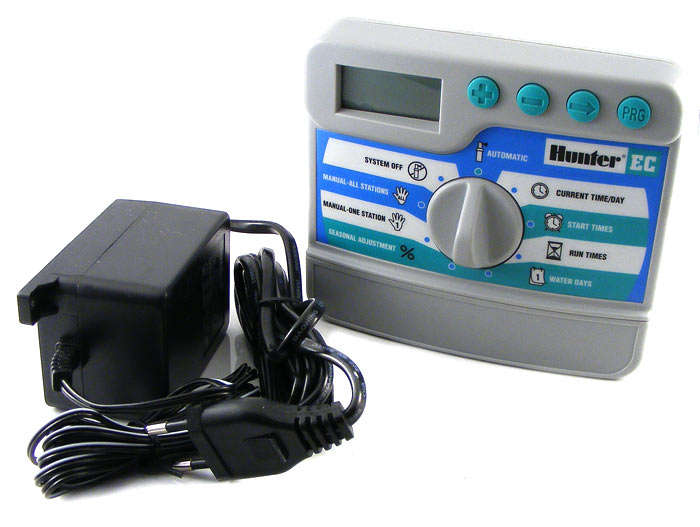

New and unused. Unit was bought and opened but never used. Comes in the original box (damaged from storage) with the power supply, mounting hardware and operating instructions.

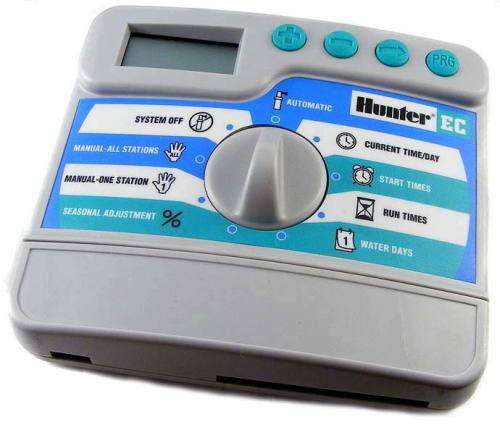

HUNTER PROGRAMMABLE 4 STATION IRRIGATION CONTROLLER
EC-401i
A masterpiece of modern technology that brings together the most desirable features, bundles them in a small, attractive package, and makes everything simple and easy to use.
EC offers all the features you would expect on more expensive units – on-screen water budgeting for seasonal adjustment, interval watering options, station delay, one-touch manual start and advance and non-volatile memory.
No controller is simpler to install and program. Both the faceplate and the easy-to-read LCD display feature internationally-recognized icons that make programming a snap.
Features and benefits:
Intuitive dial programming, with selector and interactive icons.
Seasonal adjustment (from 0% to 150%). Easy on-screen adjustment (in 10% increments) alters the
amount of watering to accommodate weather changes.
3 programs with multiple start times. Accommodates repeat watering requirements, morning,
afternoon and evening
Large LCD display with interactive icons.
Choice of independent day scheduling options. For maximum watering flexibility (select days of
the week or interval up to 31 days).
Rainfall sensor compatible. Incorporates hook-up capability to rain, moisture, and temperature
or wind sensors.
Non-volatile memory. Excellent insurance against unreliable power; retains current time, day
and program data
Electrical Specifications
Model number: EC-401I-E (indoor only)
Power supply: External transformer
Station output: 24VAC, .28 amps per station
Master valve output: 24VAC, .28 amps
Max output: 24VAC, .56amps
Battery: Not required for backup, 9 volt alkaline can be used to program controller.
Electronic short circuit protection
Surge protection
Non-volatile memory for program data
Controller will track time for 4 weeks in the event of a power outage(no battery required)
Rain sensor override by manual operation.
3 Different program options
Dimensions: 22cm H x 17.8cm W x 9.5cm D
Operating Specifications
Station run time: 0-4 hours in 1 minute increments
Stations: up to 4 stations
Start times: 4 per day, per program, for up to 12 daily starts
Watering schedule: 7 day calendar or interval programming
AM/PM or 24 hour protection
Start time stacking
Simple manual operation, including 1 button manual operation
Seasonal adjustment: 10-150% in 10% increments
Please ask any questions if unsure about anything at all!
Courier to door delivery available - please ask for a quote to your area.
