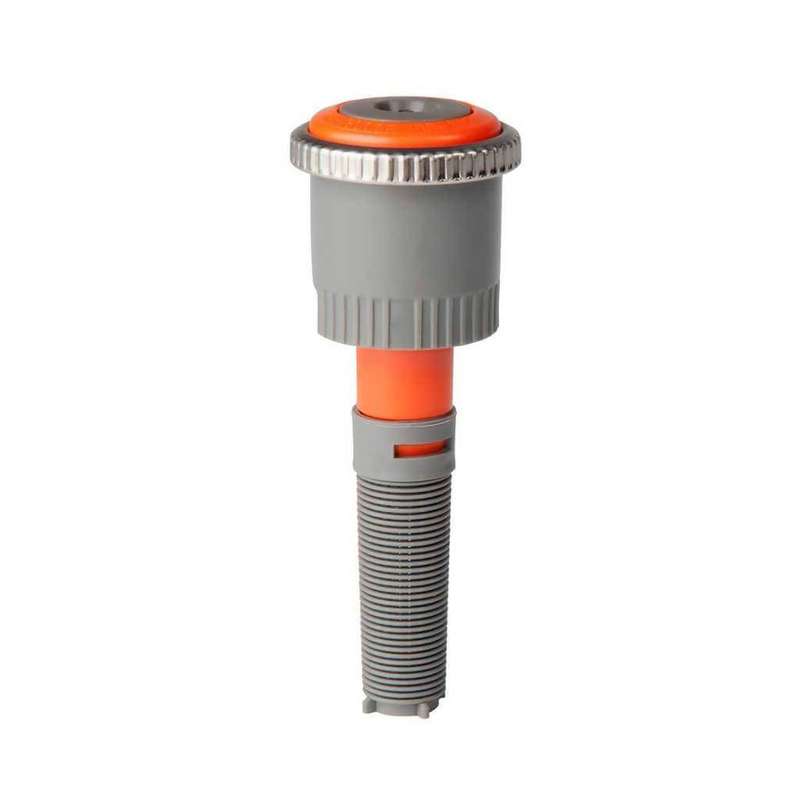

HUNTER MP800SR90 Rotator Nozzle with 90 - 210 Adjustable Arc, 1.8m - 3.5m Radius

The HUNTER MP800SR90 Rotator Nozzle is a high-efficiency nozzle for short radius applications.

• Adjustable arc from 90 -210  & radius from 9.4 - 10.7m
• MP800SR-90 uses a 60 mesh; 250 microns built-in nozzle filter
• Radius can be reduced up to approximately 25% on all models
• Removable filter screen prevents large objects from clogging nozzle
• Wind-resistant multi-stream technology

Both the standard Hunter MP Rotator family and the MP800 maintain all the benefits of the MP Rotator's patented design. Slow rotation of the nozzle allows for strong, wind-resistant streams that cover their full targeted range with a high distribution uniformity. For increased reliability in the field, the unique double-pop feature prevents debris from entering the nozzle, and with only one moving part, the MP Rotator is built for durability in even the toughest conditions.

Hunter Industries is a global manufacturer of a full range of high-quality irrigation products from controllers, rotors, rotary sprinklers, spray head sprinklers, nozzles, valves, weather drips and much more.

Product specifications:

• Model: MP800SR-90 = 1.8 to 3.5m radius, adjustable from 90 to 210
• Color-coded for easy identification
• MP800SR-90 uses a 60 mesh; 250 microns built-in nozzle filter
• Recommended operating pressure: 2.8 bar, 280 kPa
• To achieve minimum radius setting: 2.1 bar; 210 kPa
• Nozzle type: Short radius high-efficiency rotator nozzle
• Radius: 1.8 to 3.5m
• Precipitation square: Approx. 20 mm/hr
• Precipitation triangle: Approx. 22 mm/hr
• Warranty: 3 years

Applications:

• Strip pattern
• Short radius
• Deep watering
