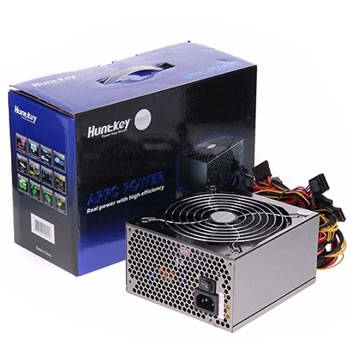

Huntkey 700W APFC PSU

Huntkey APFC 700
Model: HK700-52PP

APFC series is suitable for silence seeker. It uses a 14cm FAN, which can reduce FAN speed and low the noise. With dual & four +12V rails and high efficiency design, the efficiency of APFC series power supply can reach 80% at typical load. Active power factor correction circuit which inside of power supply can also reduce power loss of AC input line, PF value will get more than 0.99.

Features

Complies with ATX12V V2.2
80% high efficient performance
True-wattage rated
Supports Intel & AMD dual & multi-core CPUs
Active power factor correction reduces line loss and power distortion
Provides dual +12V rails, for stability and safety
Low power consumption on standby(<1W when 5VSB is 0.1A)
Excellent acoustic & thermal performance with Intelligent-Thermal Fan Control Technology
Multiple Protections Function: OCP,OVP ,OPP,SCP
100% Burn-In tested
100% Hi-Pot tested
MTBF: 100KHrs

Specifications

Model name PFC Input Voltage
HK700-52PP APFC 180-264VAC
Dimension: 150 x 86 x 160mm (WxHxL)

INPUT SPEC.

Input voltage: 180V-264V
Input current: 4.0A (Max.)at 230VAC
Input frequency: 47-63Hz
Inrush current: <70A at 230VAC cold start at 25°C

OUTPUT SPEC.

Output power: 600W (Continues)
Max. Output Capacity: 700W
Power factor: >99% (at normal input voltage and full load)
Efficiency: 80% high efficiency at typical load operation
OVP: +3.3V, +5V, +12V1, +12V2
OCP: < 240VASCP: All output to GND

Environment Spec.

Turn on time 500msec. Max.
Hold up time 16ms. Min
Operation temperature 0°C to +50°C
Storage temperature -40°C to +55°C
