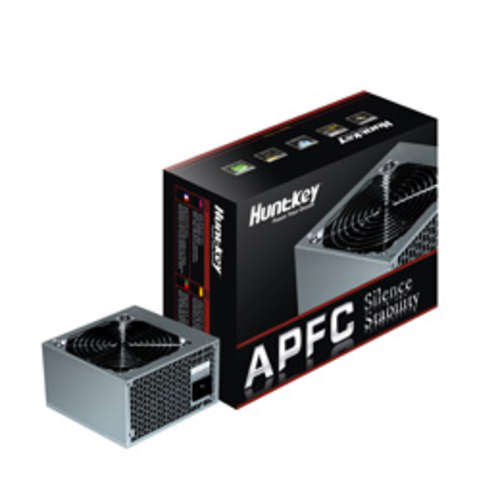

APFC series is suitable for silence seeker. APFC 700 uses a 14cm fan, which can reduce fan speed and lower noise. With dual & four +12V rails and high efficiency design, the efficiency of APFC series power supply can reach 80% at typical load. Active power factor correction circuit inside the power supply can also reduce power loss of AC input line. PF value will become higher than 0.99.
Input | Voltage | 180-264VAC | |||||||
Rated 600W Peak 700W | Voltage | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | -12V | +5VSB |
Max. Load | 25.0A | 25.0A | 18.0A | 18.0A | 18.0A | 18.0A | 0.5A | 3.0A | |
Min. Load | 1.5A | 1.0A | 0.8A | 0.8A | 0.5A | 1.0A | 0.0A | 0.1A | |
Regulation | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | |
Ripple & Noise | 50mV | 50mV | 120mV | 120mV | 120mV | 120mV | 120mV | 50mV | |
Dimension | 150x86x160mm(WxHxL), 14cm Fan | ||||||||
PFC | APFC (PF>0.99) | ||||||||
