HURRICANE 4SD2-9 4 Inch Complete Borehole Set with Pump End, Motor & Standard Control Box, Single...

The HURRICANE 4SD2-9 4 Inch Complete Borehole Set with Pump End, Motor & Standard Control Box, Single Phase (0.37kW, 0.5hp, 220V) ensures you have what you need for your water management system.

• Complete borehole set with pump end, motor & standard control box
• Durable 0.37kW submersible motor is used to drive the submersible borehole pump end
• Capable of delivering up to 10l/min at a depth of 63m
• Equipped with a standard control box that uses a 25F capacitor & is rated for 5A of current

With a wide range of flows and heads, these pumps can provide a multitude of applications such as lifting, distribution, pressurisation, filling of pressure vessels and tanks, fire-fighting systems, washing of irrigation systems and much more. Suitable for civil, industrial and agricultural water systems.

Hurricane Pumps was founded in 2004 and provide innovative water management solutions, including various water pumps, from borehole pumps to water pressure pumps and accessories as well as water purification systems and accessories.

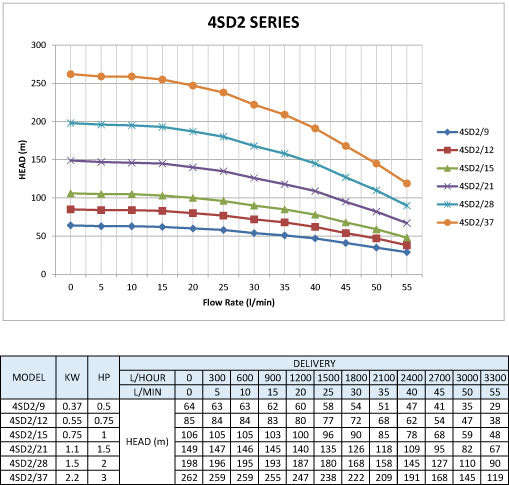

Performance Chart:

Operating conditions:

• Maximum fluid temperature: up to 35C
• Maximum sand content: 0.25%
• Minimum borehole diameter: 10.16cm (4in)

Pump & motor specifications:

• Single Phase: 220V 240V, 0.37kW, 0.5hp/50Hz
• Speed: 2850rpm
• Power: 0.37kW
• Power: 0.5hp
• Current: 3.7A
• Capacitor: 25F 450V
• Protection class: IP68
• Warranty: 12-months
• Outlet: 32mm
• Pump dimensions [ x l]: 100 x 428mm
• Motor dimensions [ x l]: 100 x 313mm
• Pump weight: 3.9kg
• Motor weight: 7.4kg

Standard control box specifications:

• Voltage: 220V
• Power: 0.37kW
• Power: 0.5hp
• Capacitor: 25F
• Current: 5A
• Switching: Manual
• Control box dimensions [l x h x d] : 23 x 16 x 8cm
• Weight: 0.7kg

What's in the box:

• 1 x 4-inch borehole submersible pump
• 1 x 4-inch borehole submersible pump end
• 1 x Standard control box
