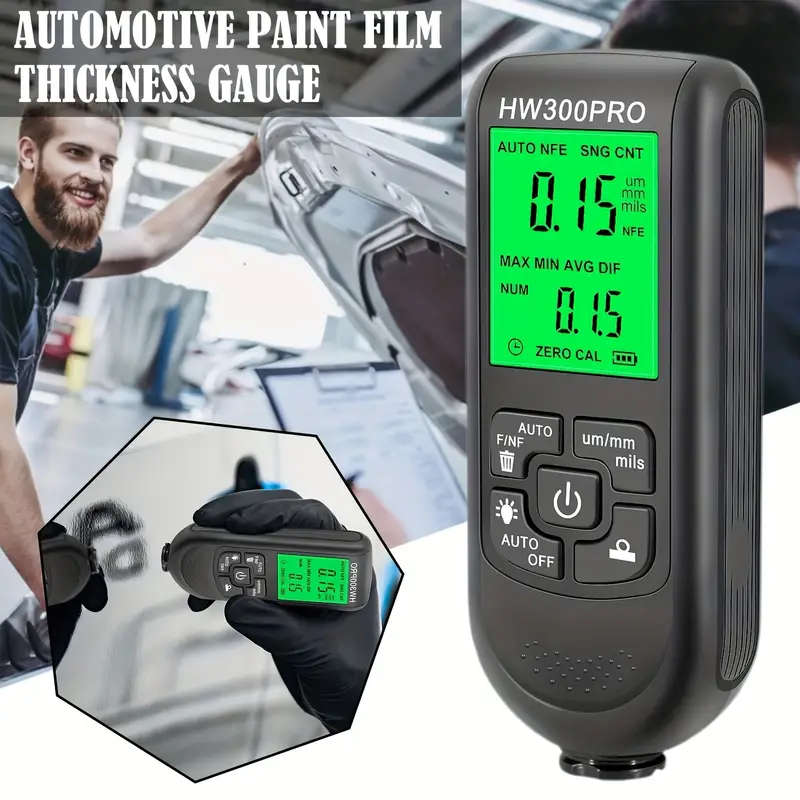

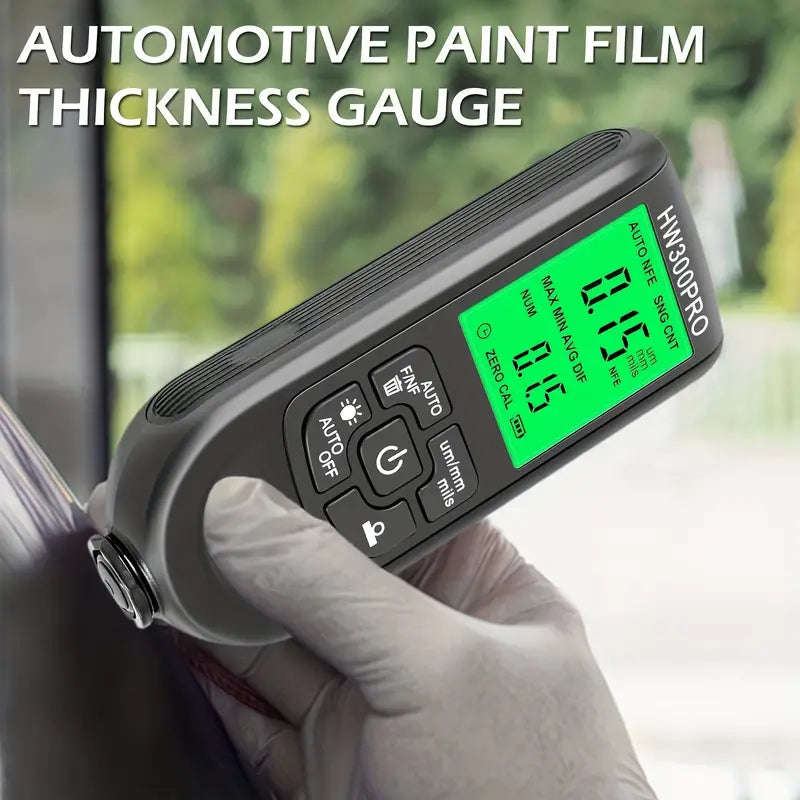

The HW-300PRO Car Paint Film Automatic Thickness Gauge accurately measures paint thickness up to 2000UM. Its Fe&Nfe coating makes it perfect for all types of car paint. This manual tool is a must-have for precise car paint spraying. Batteries not included. Become an expert in car paint application with this reliable and objective gauge.
USER MANUAL
Please note that the product requires two 1.5V AAA batteries (batteries not included). The HW-300PRO Coating Thickness Gauge is made of ABS material and comes with F and N probes. It operates based on magnetic induction with a measuring range of 0-2000UM and measurement accuracy of ±(3% 1UM).
The operating temperature range is -10°C to 50°C. Accessories include one Thickness Gauge and a Manual Calibration Sheet.

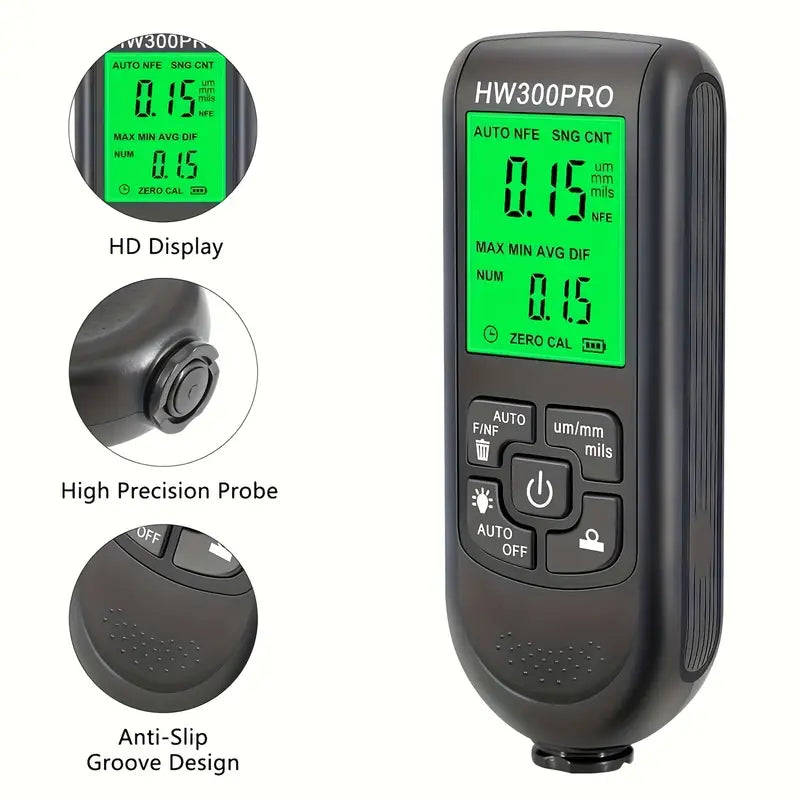

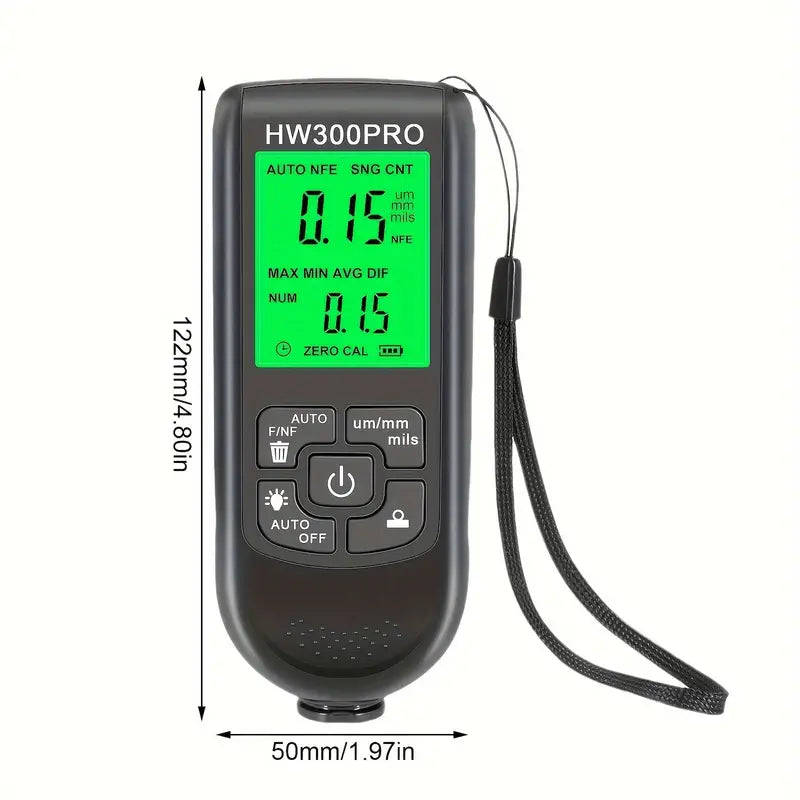

Characteristics: Extremely precise resolution of 1um, measurement of FE/NFE coatings, automotive paint from 0-2000um. Compact size and high accuracy.
Steps for measurement:
Step 1. Prepare the parts to be tested.
Step 2. Keep at least 2 cm away from metal objects, press the power button to turn on.
Note: It is recommended to calibrate the instrument to zero using 'zero calibration' before conducting tests.

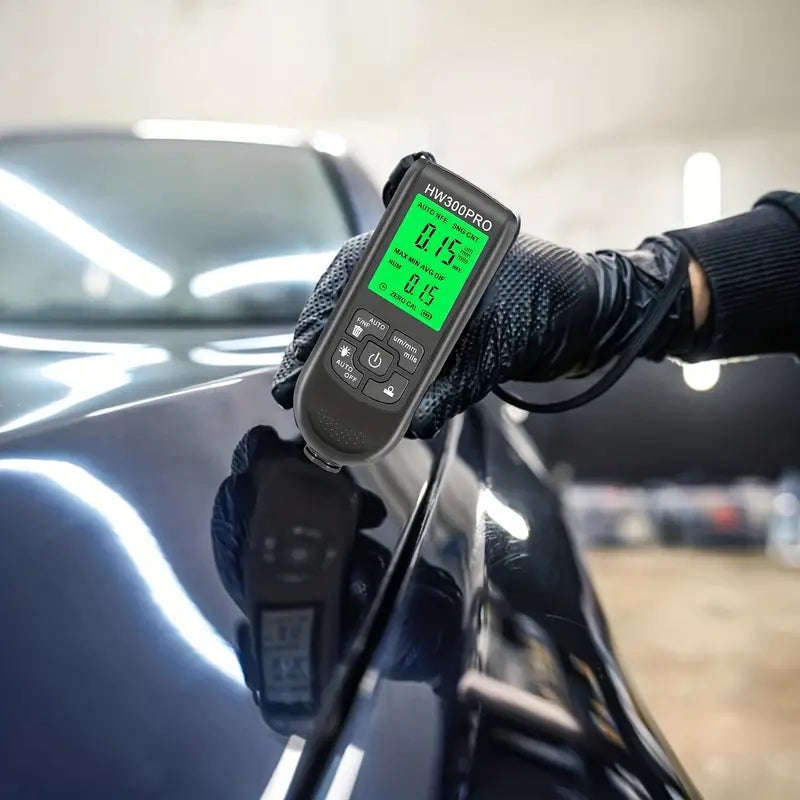

In the third step, the probe is positioned vertically and swiftly on the surface to be measured until the sound of the drop is heard. The measured value is then shown on the screen. Subsequently, the probe is raised at a minimum distance of 2 cm from the area to be measured, allowing for the next measurement to take place. Note: If the auto power-off feature is activated and there is no activity within 3 minutes, the device will power off automatically.
Simply place it on the surface to be measured, and it will automatically calculate the thickness of the coating.

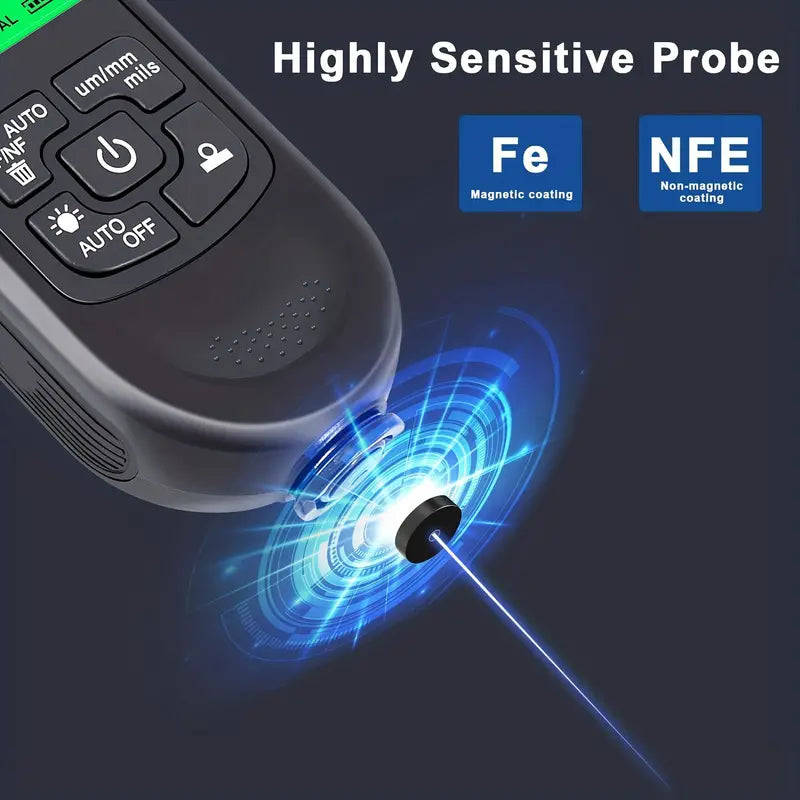

A device called a thickness gauge is utilized to determine the thickness of metal sheets that have been plated or coated with materials such as paint, enamel, chrome on steel, as well as paint and anodizing coating on aluminum or copper. The gauge has a measurement range of 0-2000UM. It is equipped with a precision integrated probe that operates based on the principles of electro-magnetic induction and the eddy current effect, allowing it to automatically identify the characteristics of the underlying substrates. This gauge is specifically designed for non-destructive measurement of coating and paint thickness.

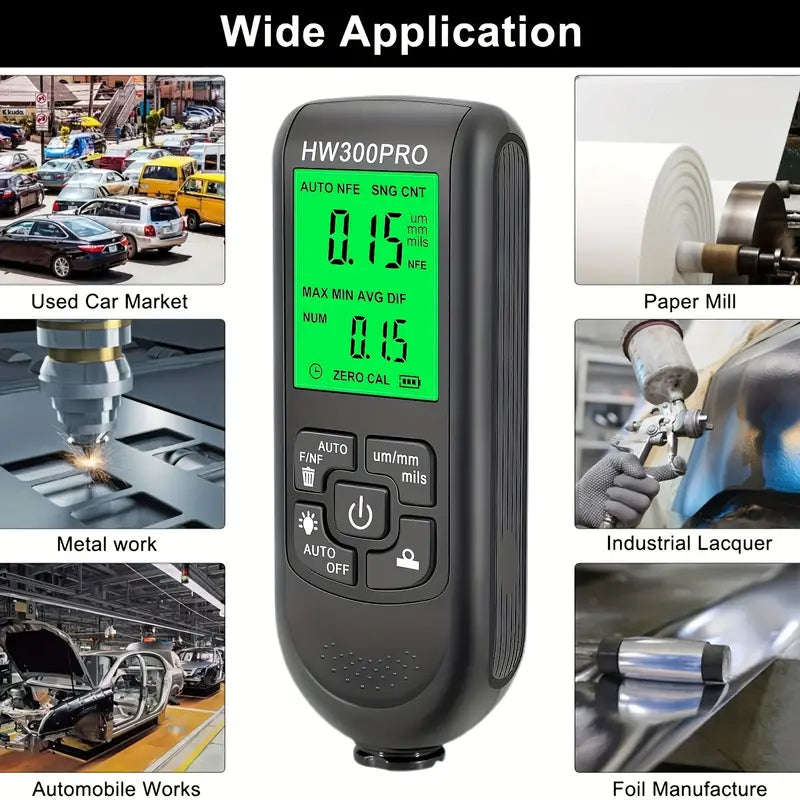

Material surface treatment is crucial and has extensive applications in the manufacturing industry, metal processing industry, chemical industry, commodity inspection sector, and can also operate reliably in laboratory settings.
