HW-439 DC-DC Step Down Buck Converter Power Supply Module XL4016E1 4-40V to 1.25-36V 8A 200W Volt...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD05722751
Bob Shop ID
602483169

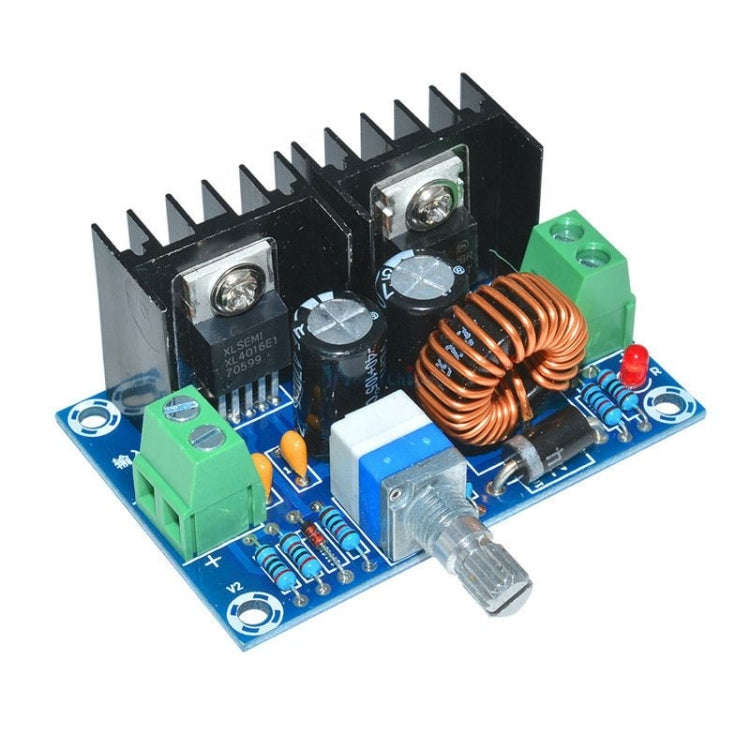

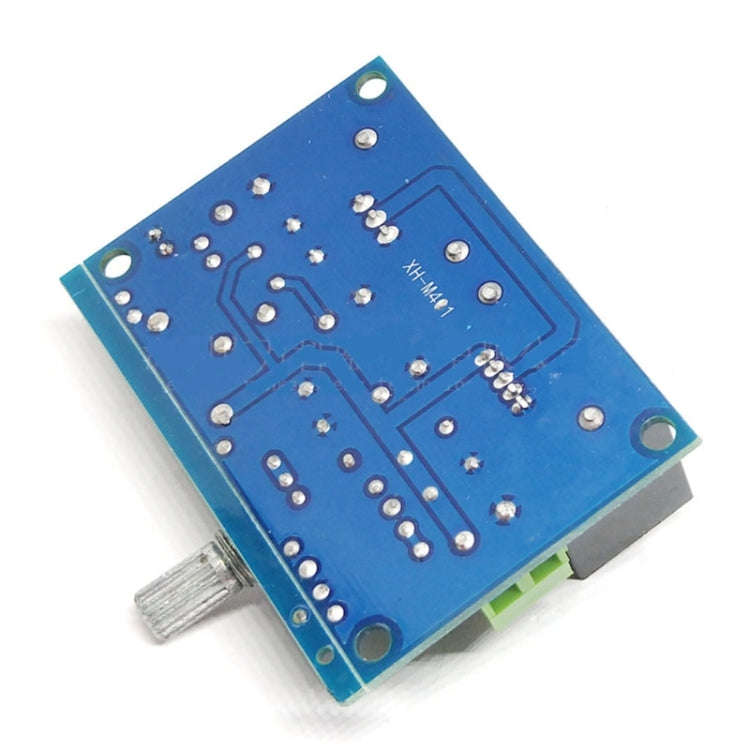

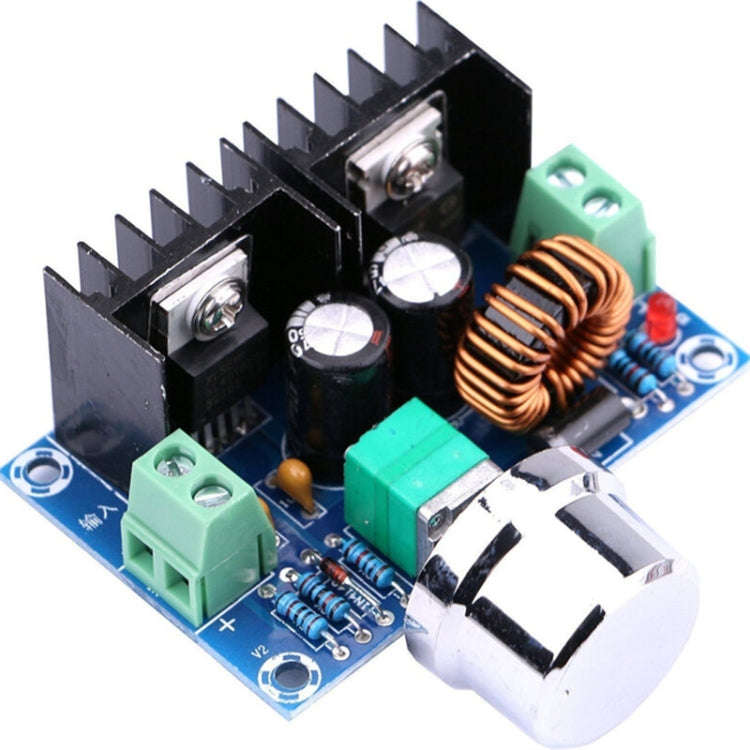

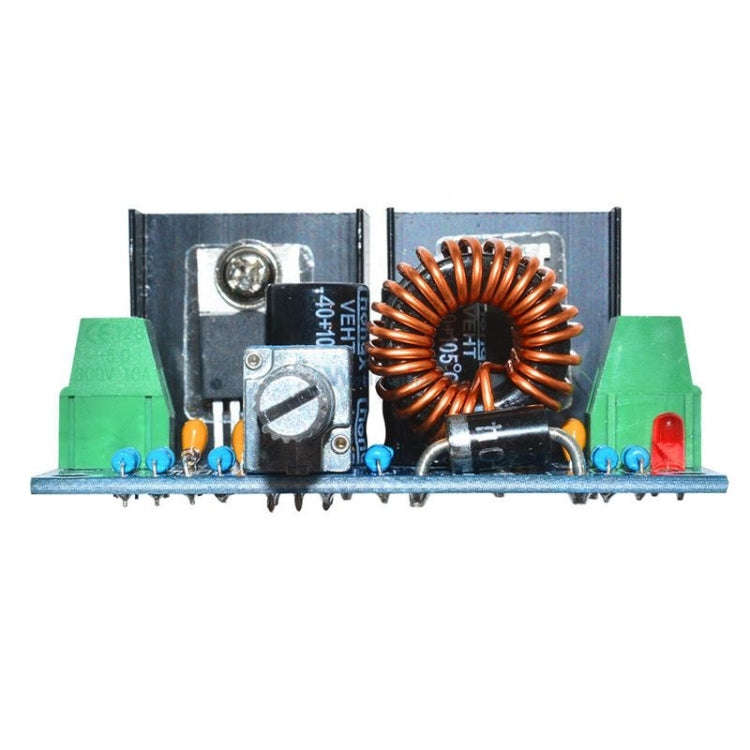

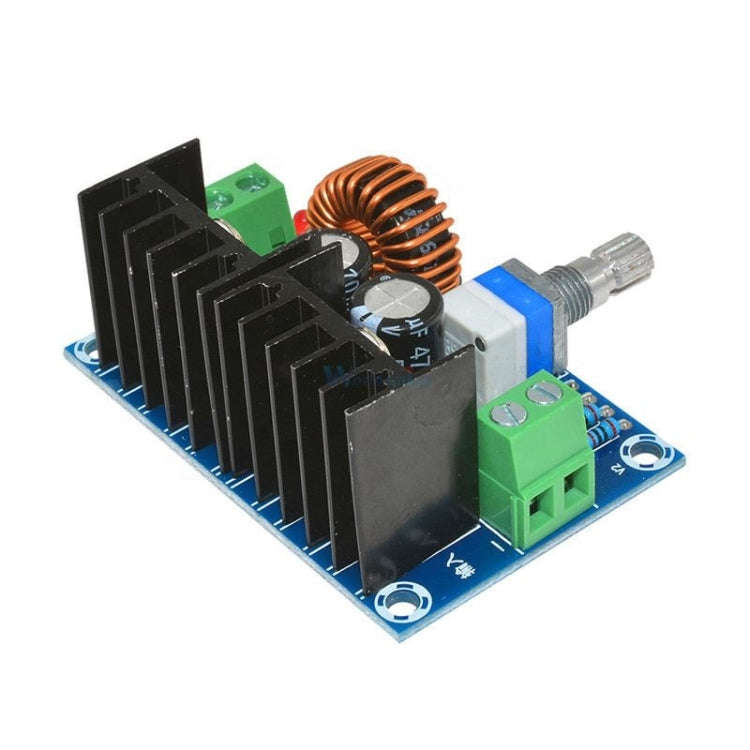

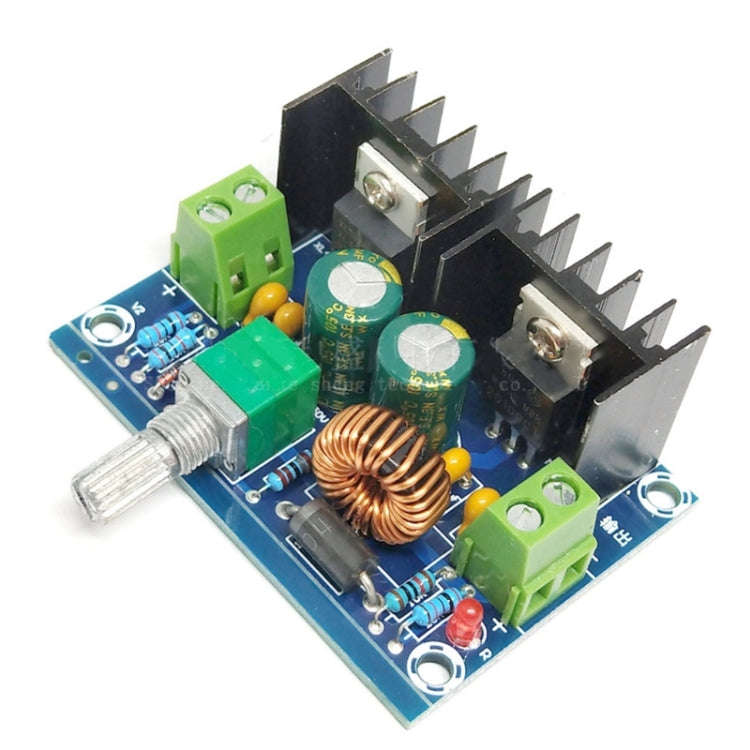

1. Using XL4016 switch voltage regulator chip, with MBR20100 dual rectifier, the input voltage can reach 40V and output 1.25~36V continuously adjustable
2. 180KHz fixed frequency PWE step-down (step-down) DC/DC converter
3. High efficiency and up to 8A load driving capacity
4. Low ripple and excellent line and load regulation ability
5. Built-in frequency compensation and fixed frequency oscillator
6. Built-in over-current and short-circuit protection functions
7. Built-in thermal shutdown function, output protection function, output overvoltage protection
8. Voltage regulation method: PWM modulation
9. Chip model: XL4016E1
10. Type: DC/DC power supply module
11. Input voltage: DC4-40v
12. Output range: DC1.25-36v
13. Rated current: 8A
14. Rated power: 200w
15. Conversion efficiency: 94%
16. Switching efficiency: 180Khz

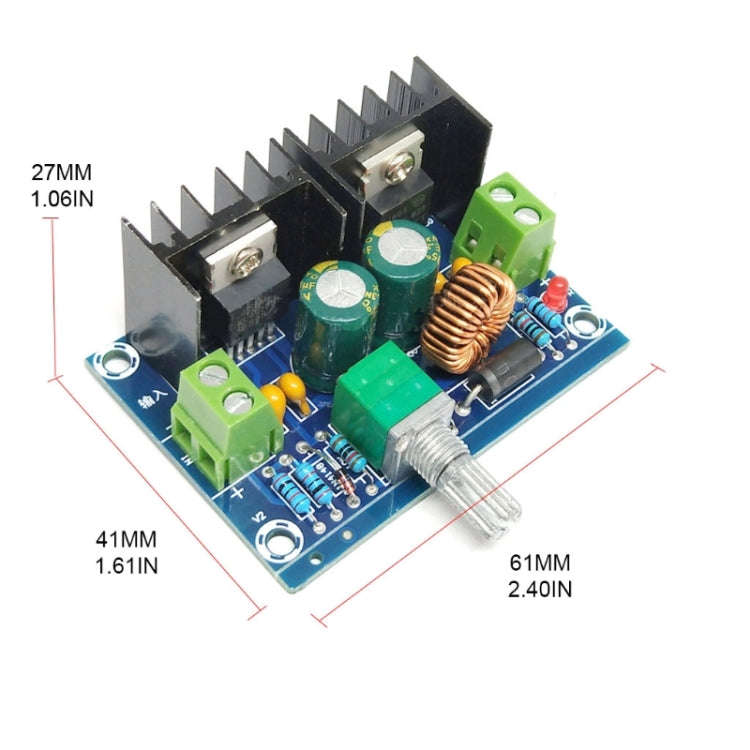

17. Size: 61x41x27mm
