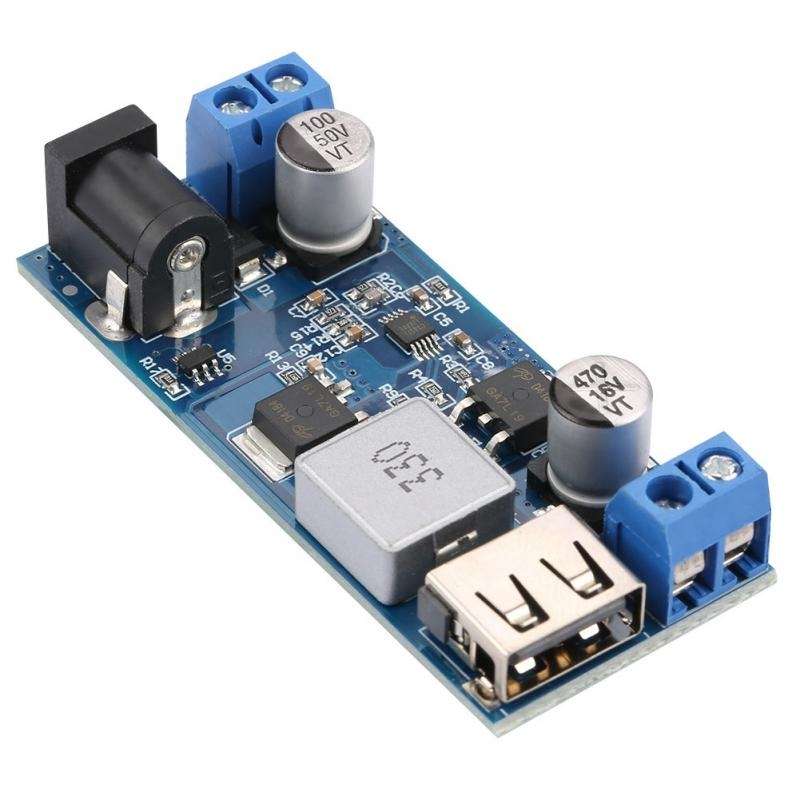

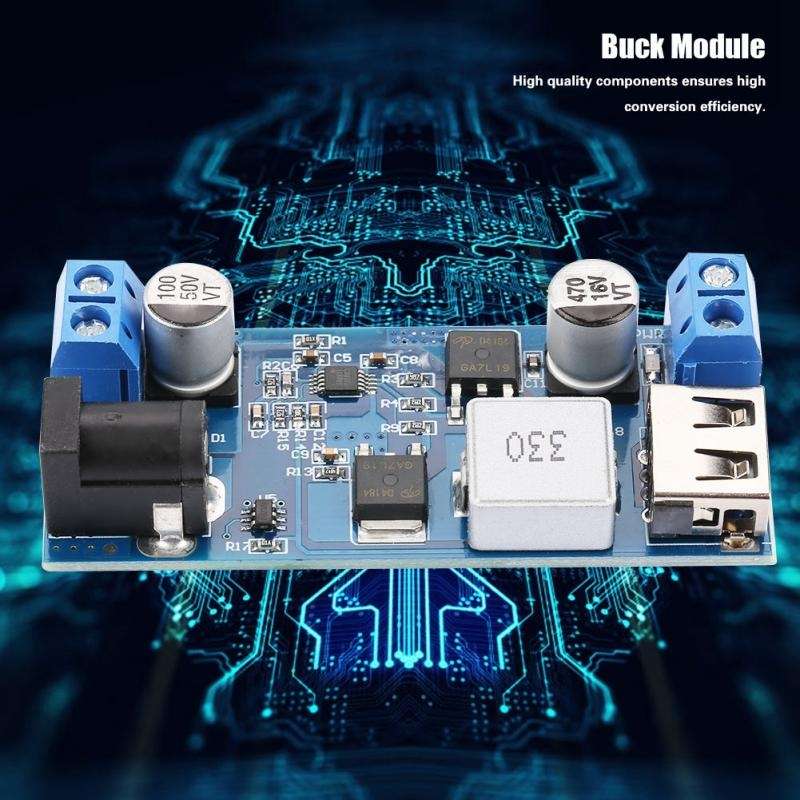

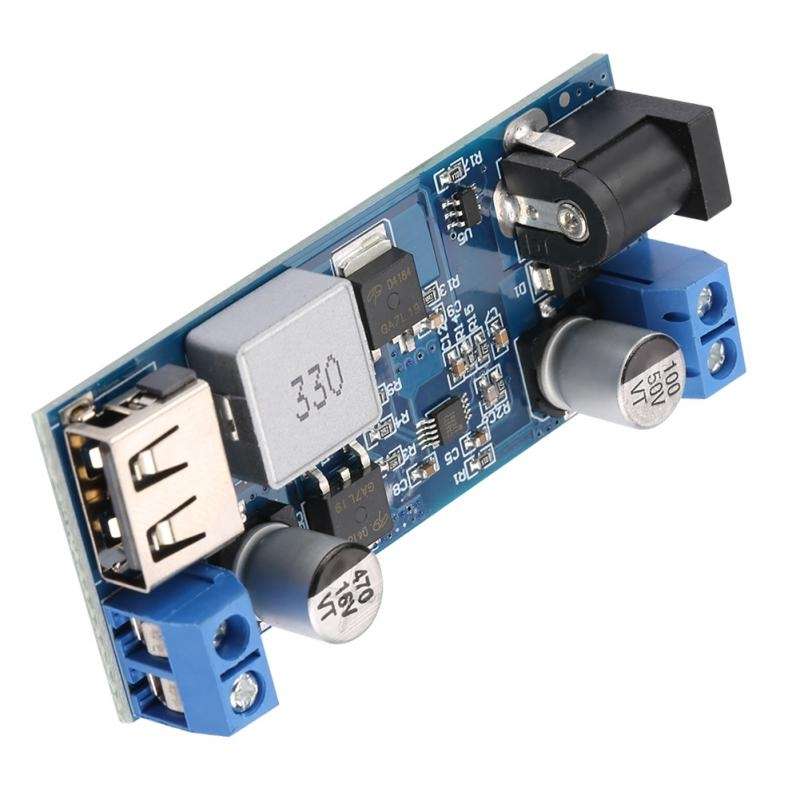

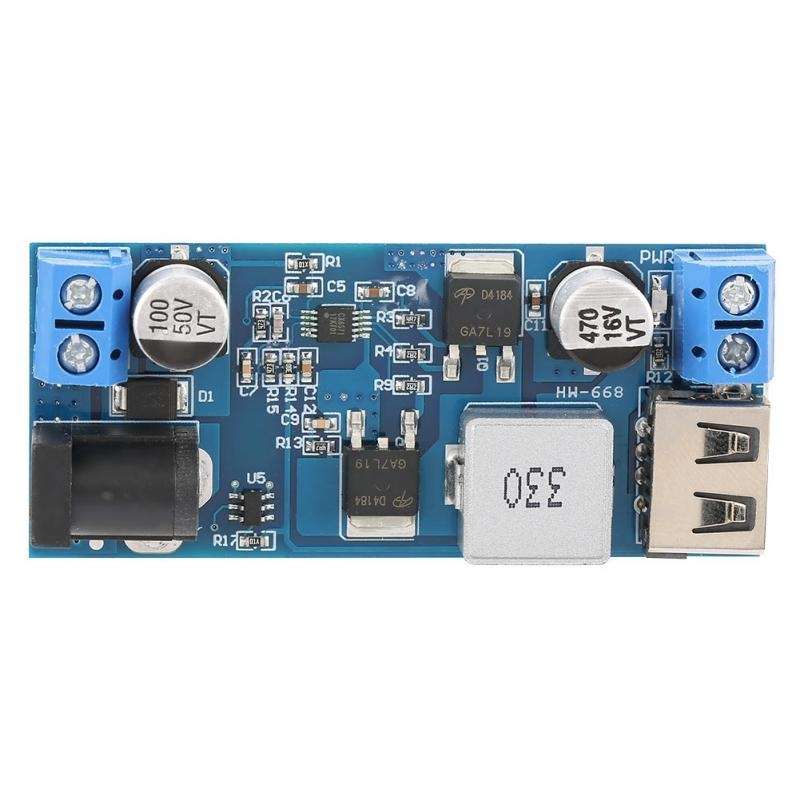

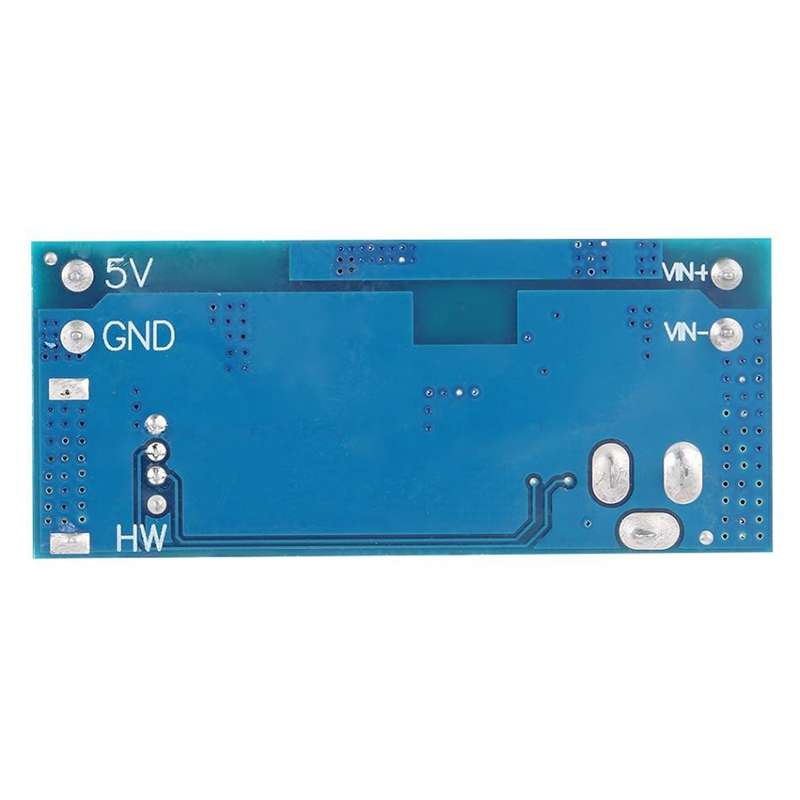

HW-688 DC 5V6A Buck Module 12V24V To 5V Power Supply USB Charging 5A High Power 30W

TBD05722580

1. USB mobile phone smart charging, RZC7512 charging control IC can identify the charging protocol and automatically switch the charging mode

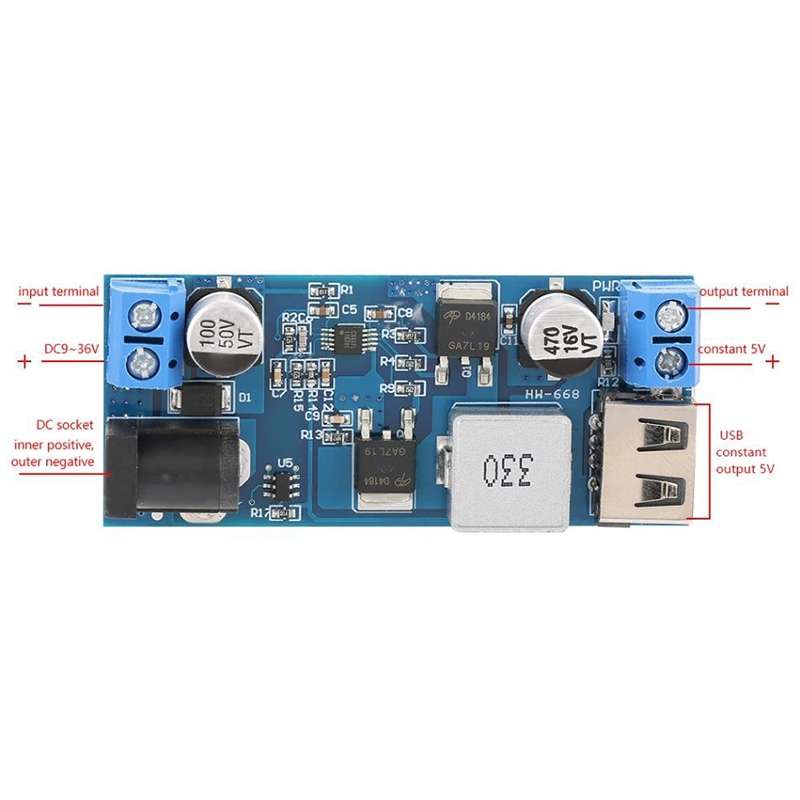

2. Support the power supply range of 9-36v, covering common 12v and 24v power supplies. Simply connect the module with a wire, and you can output a constant voltage of 5v as a 5v power supply. When using 220v AC, you can use a 12/24v transformer to convert the output first in the connection module
3. Socket modification can install a small transformer inside the socket, and then connect the output wire to the module. If there is enough space inside the socket, you can open the socket to expose the output port of the module to the socket for easy use.
4. The plug strip with USB socket also needs to be modified. The module comes with a charging identification chip, which can automatically switch the charging mode, and the charging efficiency is higher and safer.
5. Output voltage: 5v
6. Working voltage: 4.5-5.5v
7. Input voltage: 9-36v
8. Application scope: USB charging for electric car/motorcycle modification, car power modification, solar battery, portable USB charging, generator USB output, DIY application
