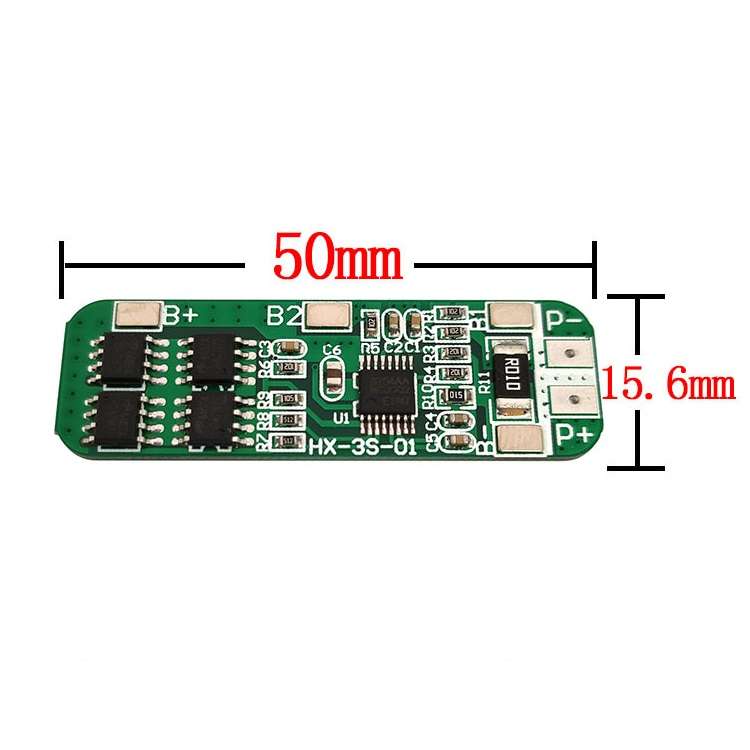

Product parameters: Model: HX-3S-01 Overcharge Voltage Range: 4.25V ± 0.05V Overpressure Voltage Range: 2.5V ± 0.05V Upper Limit Operating Current: 8A Upper Limit Instantaneous Current: 12A Quiescent Current: <30uA Internal Resistance: < 45m Charging Voltage: 12.6V-13V Effective Life:<50,000 hours Operating Temperature: -40a~ +50a Storage Conditions: -40a~ +80a Size: 50 * 16 * 3mm Short Circuit Protection: protection, delay self-recovery
Applicable Scope: The power range is suitable for the following products: massager battery pack, LED light standby power supply, 12V electronic products, solar street light battery pack, monitor backup power supply, and other products. Note: 3A current discharge products above, the battery discharge rate to 3C or more.
Magnification formula:
1C magnification of the battery, 2000 capacity equal to 2AH * 1 = 2A upper limit current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A upper working current.
Note: The battery will heat when using it, it means the battery does not apply , please don`t keep using becuase the battery will be damaged soon. The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children`s car battery, 775 (4A)motor, 1W fish eye LED light!

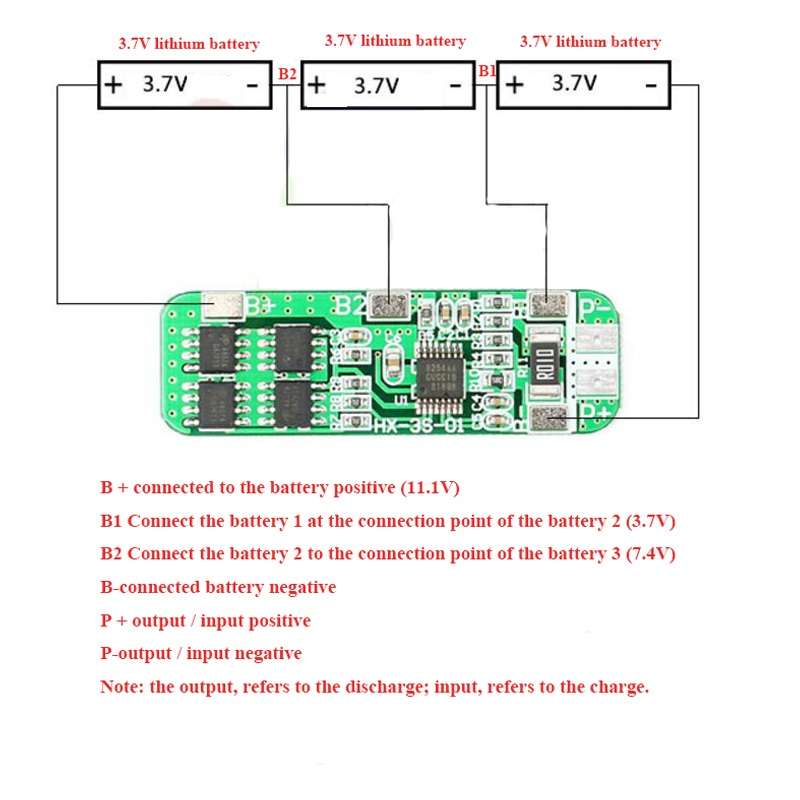

Note: 1. Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B +), do not deliberately short circuit. 2. Please charge after connecting the line, then it will has output. 3. When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. Discharge test, the voltage drops quickly when the group of battery time difference battery. 4. Please do not mix the battery and the poor battery together! 3 sets of battery capacity / resistance closer to the better! (Two good batteries +1 a poor battery use effect = 3 poor battery use effect).
Package included: 1 x 3S Lithium Battery Protection Board
