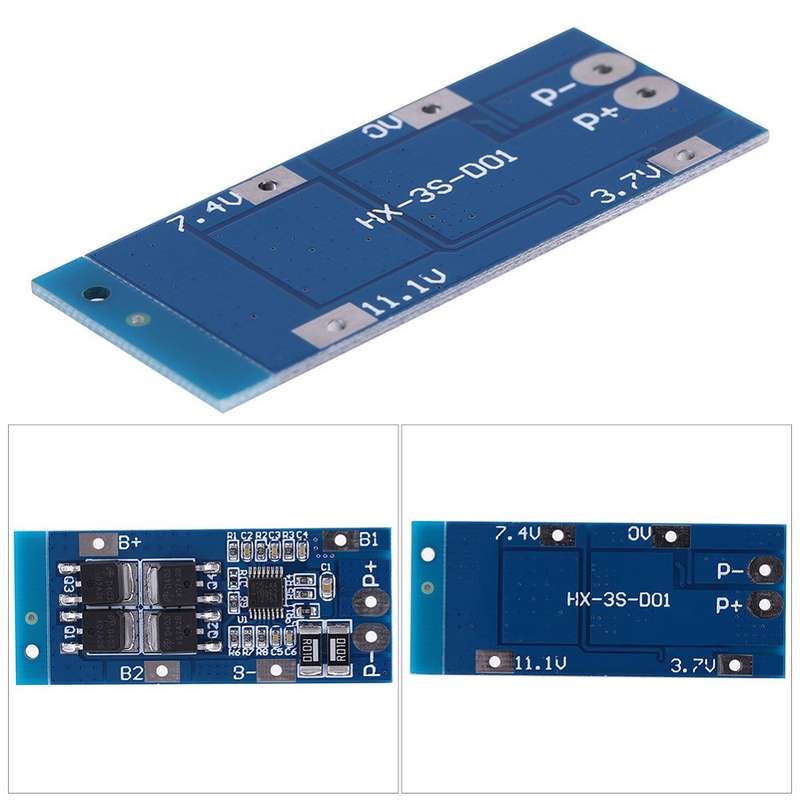

HX-3S-D01 3S 11.1V Li-ion Lithium 18650 Battery Cell BMS PCB Protection Board Overcharge Protection

20 available / new

R375.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641126281

Features:
Three series of lithium battery protection board. Automatically cancel protection after protection conditions restore. With function of overcharge protection, over discharge protection, short circuit protection, over-current protection. Suitable for lithium battery pack of 11.1V. Quiescent current50uA, so power consumption is small.
Specifications:

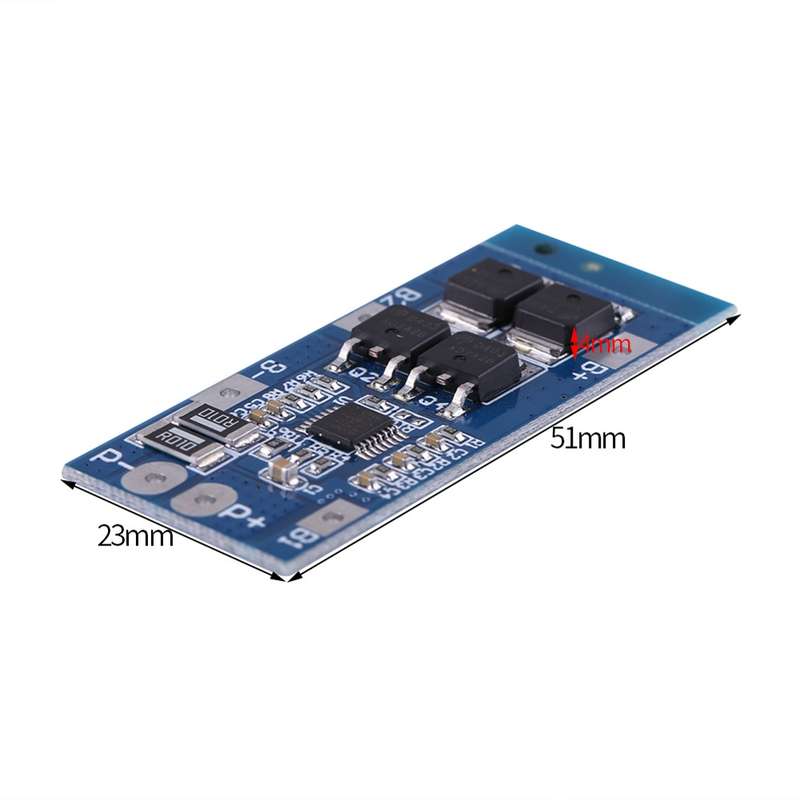

Model: HX-3S-D01 Over voltage range: 4.25-4.35v&pm;0.05v Over discharge voltage range: 2.3-3.0v&pm;0.05v Maximum operating current: 15A Maximum transient current: 15-20A Quiescent current: 50uA Internal resistance: 150m Charging voltage: 12.6v - 13V Working temperature: -40~+50a Storage condition: -40~ +80a Effective life: >30000h Size: 51 *23 *4mm/ 2.01 *0.91* 0.16 inch

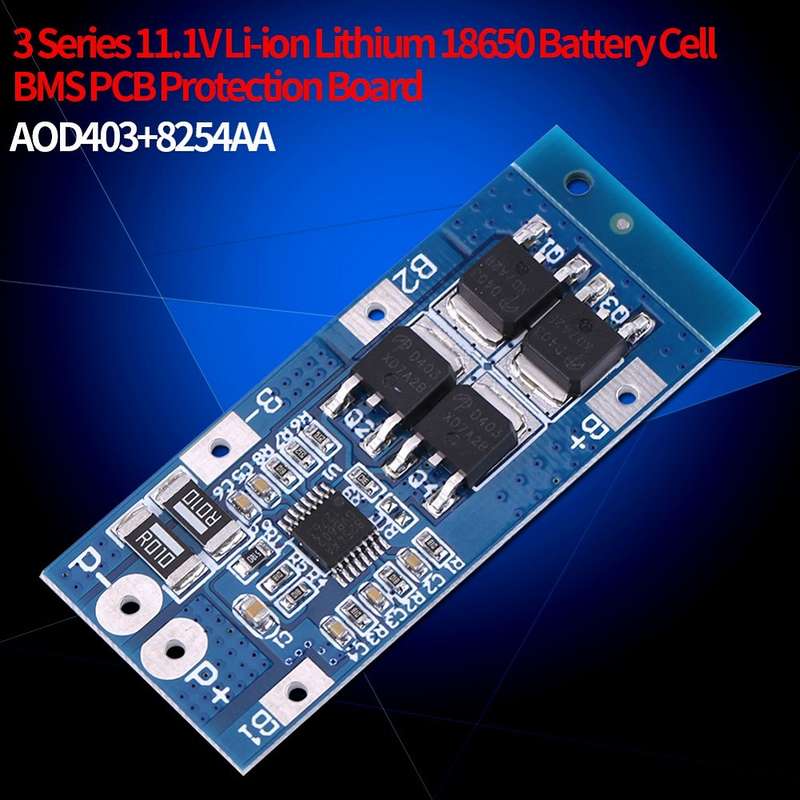

Short circuit protection: Yes, delayed self recovery The component included: 1 pcs S-8254AA protection chip, 4pcs D403*4
Package Included:
1 x PCB Protection Board(have assembled)
