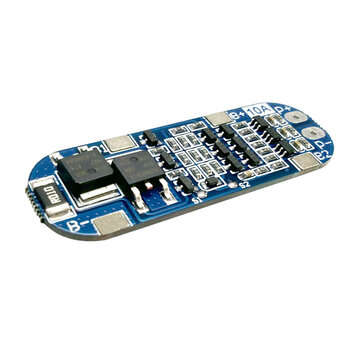

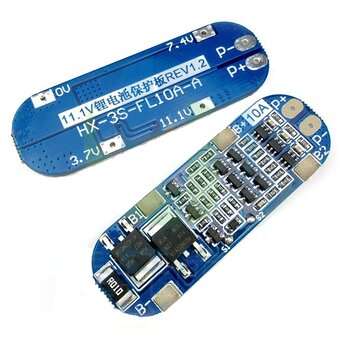

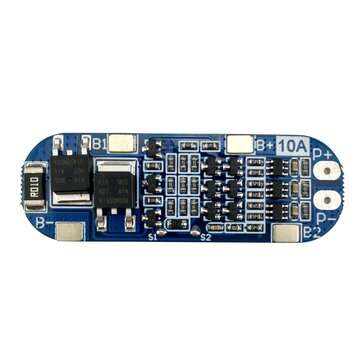

HX-3S-FL10A-A 3S 11.1V 12V 12.6V 10A Lithium Battery Protection Board with Overcharge Overdischarge
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Bob Shop ID
615103765
Product parameters:
Moldel: HXYP-3S-FL10A-A Charging Voltage: 12.6V-13V Overcharge Voltage Range: 4.25V ± 0.05V Overpressure Voltage Range: 2.5V± 0.05V Upper Limit Operating Current: 8A Upper Limit Instantaneous Current: 10A Quiescent Current: <30uA Weight: 3.8g Size: 53* 17* 4mm With Overcharge, overdischarge, overcurrent, short circuit protection functions.
? Applicable Scope
The power range is suitable for the following products: massager battery pack, LED light standby power supply, 12V electronic products, solar street light battery pack, monitor backup power supply, and other products. Note: 3A current discharge products above, the battery discharge rate to 3C or more.
Magnification formula:
1C magnification of the battery, 2000 capacity equal to 2AH * 1 = 2A upper limit current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A upper working current.
Note: The battery will heat when using it, it means the battery does not apply , please don`t keep using becuase the battery will be damaged soon. The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children`s car battery, motor, 1W fish eye LED light!

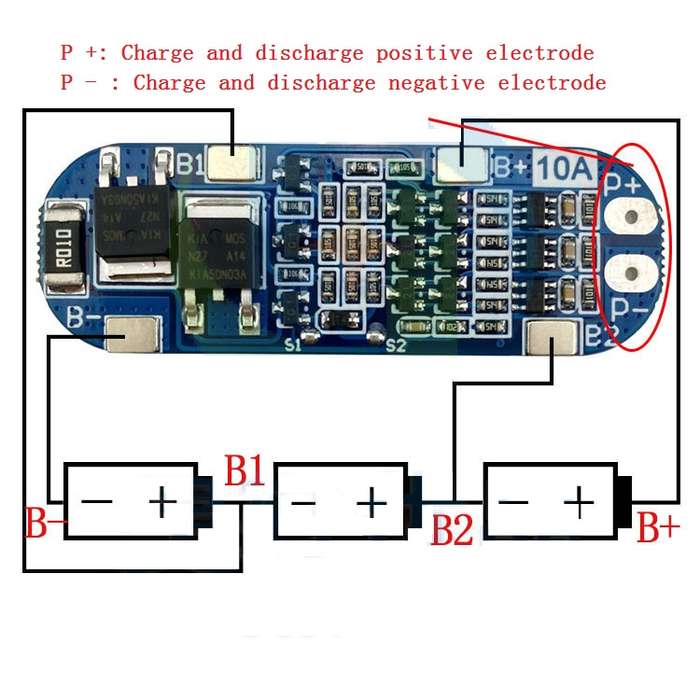

Precautions: 1. Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B+),do not deliberately short circuit. 2. Please charge after connecting the line, then it will has output. 3. When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. Discharge test, the voltage drops quickly when the group of battery time difference battery. 4. Please do not mix the battery and the poor battery together! 3 sets of battery capacity / resistance closer to the better! (2 good batteries +1? poor battery use effect = 3 poor battery use effect).
Package included:
1 x Lithium Polymer Battery?Protection Board
Moldel: HXYP-3S-FL10A-A Charging Voltage: 12.6V-13V Overcharge Voltage Range: 4.25V ± 0.05V Overpressure Voltage Range: 2.5V± 0.05V Upper Limit Operating Current: 8A Upper Limit Instantaneous Current: 10A Quiescent Current: <30uA Weight: 3.8g Size: 53* 17* 4mm With Overcharge, overdischarge, overcurrent, short circuit protection functions.
? Applicable Scope
The power range is suitable for the following products: massager battery pack, LED light standby power supply, 12V electronic products, solar street light battery pack, monitor backup power supply, and other products. Note: 3A current discharge products above, the battery discharge rate to 3C or more.
Magnification formula:
1C magnification of the battery, 2000 capacity equal to 2AH * 1 = 2A upper limit current. 3C magnification battery, 2000 capacity equal to 2AH * 3 = 6A upper working current.
Note: The battery will heat when using it, it means the battery does not apply , please don`t keep using becuase the battery will be damaged soon. The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children`s car battery, motor, 1W fish eye LED light!
Precautions: 1. Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B+),do not deliberately short circuit. 2. Please charge after connecting the line, then it will has output. 3. When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. Discharge test, the voltage drops quickly when the group of battery time difference battery. 4. Please do not mix the battery and the poor battery together! 3 sets of battery capacity / resistance closer to the better! (2 good batteries +1? poor battery use effect = 3 poor battery use effect).
Package included:
1 x Lithium Polymer Battery?Protection Board
