- This module uses 24 high precision A/D converter chip HX711. It is a specially designed for the high precision electronic scale design with two analog input channels the
- Internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure weighing sensor mode) is of high precision low cost is an ideal sampling front-end module.
- Four leads, easy to use
- 5-10V drive voltage applied, the force is directly output as a voltage change signal.
Specifications:
Load cell size: 80 mm x12.7 mm x 12.7 mm
Module size: 24 mm x 16 mm
Operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range: -20 degree ~ +8 5degree
- Two selectable differential input channels
- On-chip active low noise PGA with selectable gain of 3264 and 128
- On-chip power supply regulator for load-cell and ADC analog power supply
- On-chip oscillator requiring no external component with optional external crystal
- On-chip power-on-reset
- Simple digital control and serial interface: pin-driven control programming needed
- Selectable 10SPS or 80SPS output data rate
- Simultaneous 50 and 60Hz supply rejection
Connection:
Red to E+
Black to E-
Green to A+
White to A-

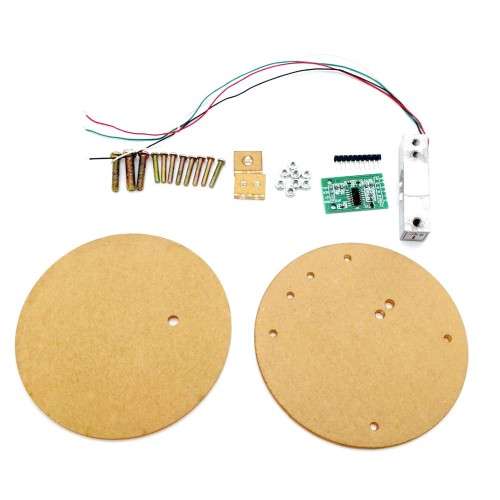

**Please take note that this kit doesn't have the bolts and nuts as per image, but it does have all the necessary clips to assemble the kit**
