HX711 Pressure Sensor Kit Weighing Sensor Bracket DIY Electronic Scale Module

HX711 Pressure Sensor Kit Weighing Sensor Bracket DIY Electronic Scale Module

New 19 available
R99.95
Shipping
Free shipping is available from BotGoods (PTY) LTD for all orders above R650.00, using one of our trusted couriers.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
BotGoods (PTY) LTD794
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
4189754
Bob Shop ID
616357085
- This module uses 24 high precision A/D converter chip HX711. It is a specially designed for the high precision electronic scale design with two analog input channels the
- Internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure weighing sensor mode) is of high precision low cost is an ideal sampling front-end module.
- Four leads, easy to use
- 5-10V drive voltage applied, the force is directly output as a voltage change signal.
Specifications:
Load cell size: 80 mm x12.7 mm x 12.7 mm
Module size: 24 mm x 16 mm
Operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range: -20 degree ~ +8 5degree
- Two selectable differential input channels
- On-chip active low noise PGA with selectable gain of 3264 and 128
- On-chip power supply regulator for load-cell and ADC analog power supply
- On-chip oscillator requiring no external component with optional external crystal
- On-chip power-on-reset
- Simple digital control and serial interface: pin-driven control programming needed
- Selectable 10SPS or 80SPS output data rate
- Simultaneous 50 and 60Hz supply rejection
Connection:
Red to E+
Black to E-
Green to A+
White to A-

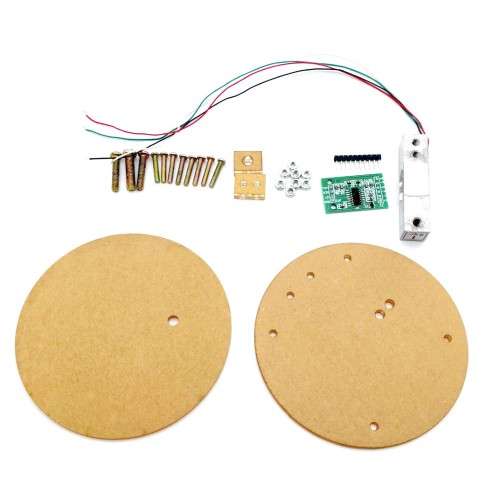

**Please take note that this kit doesn't have the bolts and nuts as per image, but it does have all the necessary clips to assemble the kit**
