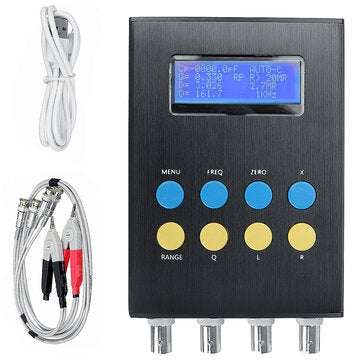

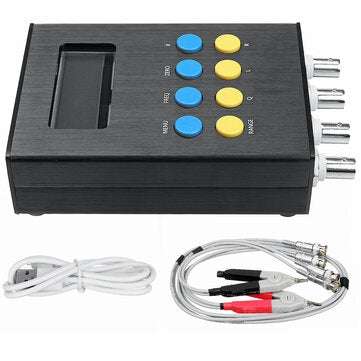

HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas
HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas

HY-DB01 Handheld Portable LCR Digital Bridge Tester LCR Meter Resistance Capacitance Inductance Meas

20 available / new
R1,730.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643381572

Description:
Main display 1999.9 count, secondary display 999.9 count Measuring frequency: 100Hz/1KHz/7.8KHz Measuring voltage: 0.2Vrms Output impedance: 40 Basic accuracy: 0.3% LCR automatic recognition/manual measurement Open/shortcircuit calibration compensation
Main display parameter: Cp: Capacitor parallel mode Cs: Capacitor series connection mode Lp: Inductor parallel mode Ls: inductance series mode Rp: resistance parallel mode Rs: resistance series mode Xs: equivalent series reactance
Secondary display parameter: Q: Quality factor D: loss factor : phase angle Rp: equivalent parallel resistance ESR: equivalent series resistance Xp: equivalent parallel reactance
Secondary display range parameter: Q: 0.000-999.0 D: 0.000-9.999 : -179.0 ~ +179.0

Package Includes:


1 xLCR Bridge Tester

2 xTest Line

1 x Type-CUSB Cable


Details Picture:
